Product features

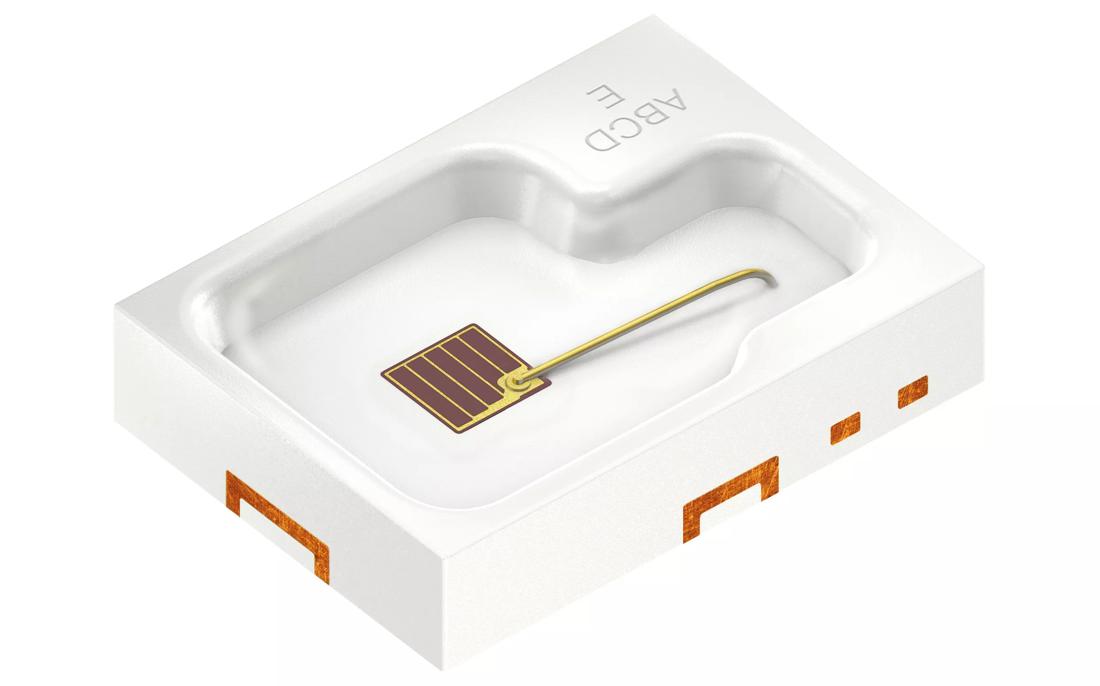

This compact LED device is part of the SYNIOS P2720 family. Given the scalability of this product family, it provides full performance and flexibility with just one footprint.The KR DMLN31.23 product is meant to provide superior light quality in ¼ mm² chip size class.



KR DMLN31.23

Datasheet / 1.8 MB

KR DMLN31.23 - Dual Binning

Datasheet / 1.2 MB

KR DMLN31.23 specified at 65mA

Datasheet / 1.2 MB

Application note

Chemical compatibility of LEDs

General information / 2.0 MB

Comparison of simple LED circuits for low power LEDs

Electrical design / 1.2 MB

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General information / 1.7 MB

Details on photobiological safety of LED light sources

General information / 1.4 MB

Dimming LEDs with respect to grouping current

Electrical design / 1,007.0 KB

Dry pack information

Handling recommendations / 1.2 MB

ESD protection while handling LEDs

Handling recommendations / 1.8 MB

Fundamentals of LED handling

Handling recommendations / 1.3 MB

Further details on lead free reflow soldering of LEDs

Soldering and processing / 1.4 MB

Handling of silicon resin LEDs

Handling recommendations / 496.2 KB

Importing rayfiles and ray-measurement files of LEDs

General information / 903.2 KB

LED diagnosis in automotive applications

Electrical design / 2.1 MB

LED 可靠性与使用寿命

General information / 1.7 MB

LED 无铅回流焊的详细介绍

Soldering and processing / 1.7 MB

Lebensdauer und Zuverlässigkeit von LEDs

General information / 1.9 MB

Light guides

Product related / 1.0 MB

Long-term availability management

General information / 1.0 MB

Measurement, calibration and measurement uncertainty of LEDs

General information / 2.5 MB

Measuring of the temperature profile during the reflow solder process

Soldering and processing / 1.2 MB

PCB technologies for LED applications

Thermal management / 3.1 MB

Package related thermal resistance of LEDs

Thermal management / 2.1 MB

Preventing LED failures caused by corrosive materials

General information / 1.2 MB

Processing of SMD LEDs

Soldering and processing / 4.5 MB

Recommended pick-and-place tools for LEDs

Soldering and processing / 6.0 MB

Reliability and lifetime of LEDs

General information / 1.9 MB

SYNIOS® P2720 — General information

Product related / 1.8 MB

SYNIOS® P2720 — 基本信息

Product related / 2.1 MB

Temperature measurement with thermocouples

Thermal management / 3.9 MB

The basic principles of Electrical Overstress (EOS)

Electrical design / 1.6 MB

The thermal measurement point of LEDs

Thermal management / 2.7 MB

Thermal management of LED light sources

Thermal management / 1.9 MB

Weitere Hinweise zum bleifrei Reflow-Löten von LEDs

Soldering and processing / 1.4 MB

欧司朗光电半导体有限公司 LED 的测量、

General information / 2.4 MB

Optical simulation

Optical Simulation

Optical simulation

CAD files

CAD Data

CAD files

Electrical simulation

Electrical Simulation

Electrical simulation

Ordering codes

Product Type Description Order No. Availability
KR DMLN31.23-GYJY-26-J3T3 ΦV = 21.0 ... 61.0 lm (IF = 200 mA) Q65112A9476
KR DMLN31.23-6E5G-25-F3T3 ΦV = 8.0 ... 20.1 lm (IF = 65 mA) Q65112A3414
KR DMLN31.23-AACA-1-1+GZJX-26-1 ΦV = 1.12 ... 3.55 lm (IF = 10 mA)
ΦV = 24.0 ... 52.0 lm (IF = 200 mA)



Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.
