Details
Parameters
Color of emission
Red (612-630 nm)
Electrical power
1.0
W
High
Brightness
ΦV
50.9
lm
IV
17.6
cd
ΦE
263
mW
IE
91
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
125
°C
Dimension
l
2.75
mm
w
2.0
mm
h
0.6
mm
Application fields
Ordering codes
Downloads
For other documents visit our
Download center
Application note
Light guides
Product related
Preventing LED failures caused by corrosive materials
General information
Long-term availability management
General information
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Details on photobiological safety of LED light sources
General information
Importing rayfiles and ray-measurement files of LEDs
General information
Chemical compatibility of LEDs
General information
Handling of silicon resin LEDs
Handling recommendations
ESD protection while handling LEDs
Handling recommendations
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Processing of SMD LEDs
Soldering and processing
Recommended pick-and-place tools of LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
The thermal measurement point of LEDs
Thermal management
Package related thermal resistance of LEDs
Thermal management
Temperature measurement with thermocouples
Thermal management
Thermal management of LED light sources
Thermal management
LED diagnosis in automotive applications
Electrical design
Comparison of simple LED circuits for low power LEDs
Electrical design
Dimming LEDs with respect to grouping current
Electrical design
The basic principles of Electrical Overstress (EOS)
Electrical design
Resources
CAD Data
CAD Data
Electrical Simulation
Electrical Simulation
Optical Simulation
Optical Simulation
Images

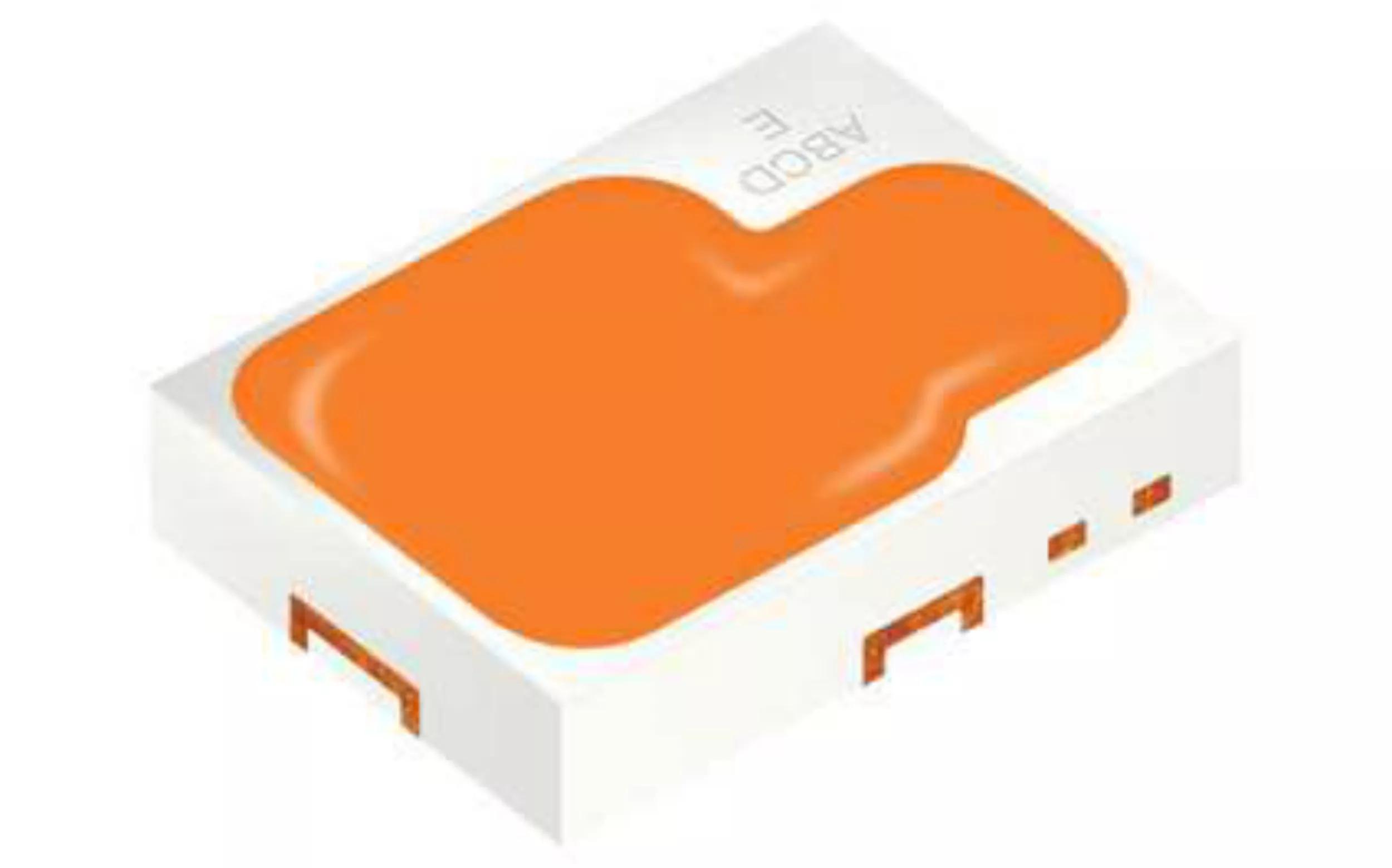

Qper_Red_converted-Verguà _36x22.4mm_cmyk
