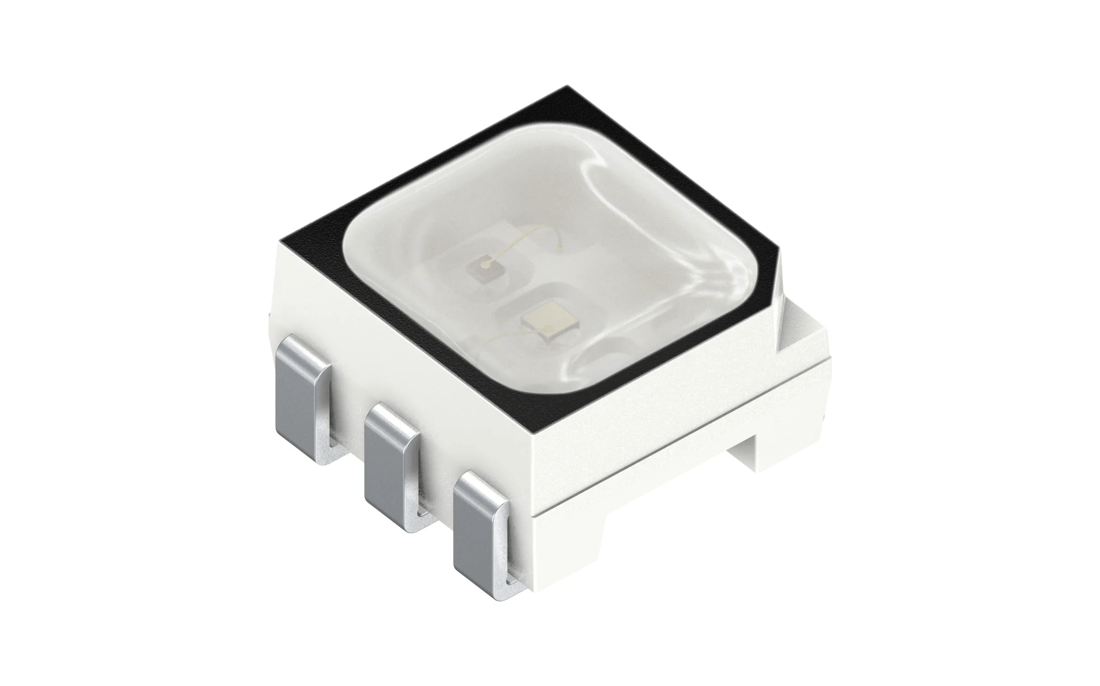

OSRAM DISPLIX™ P3333, KRT LSLPS1.32

×

Description

This device is especially designed for full color RG applications. The 6-lead technology allows for an additive mixture of color stimuli by independent driving of each chip.
Datasheet
KRT LSLPS1.32
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Electrical power
0.043 W
0.053 W
Low
Low
Brightness
ΦV
3.03 lm
IV
1.06 cd
ΦE
16.8 mW
IE
5.87 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
100 °C
Dimension
l
3.3 mm
w
3.3 mm
h
1.82 mm

Ordering information

Product Type Description Ordering code Availability
KRT LSLPS1.32-VUVY-EQ+BTBV-D8-R33-B ● Iv = 800 ... 1323 mcd (IF = 20 mA)
● Iv = 1902 ... 2800 mcd (IF = 20 mA) 		Q65113A7708 Full production
