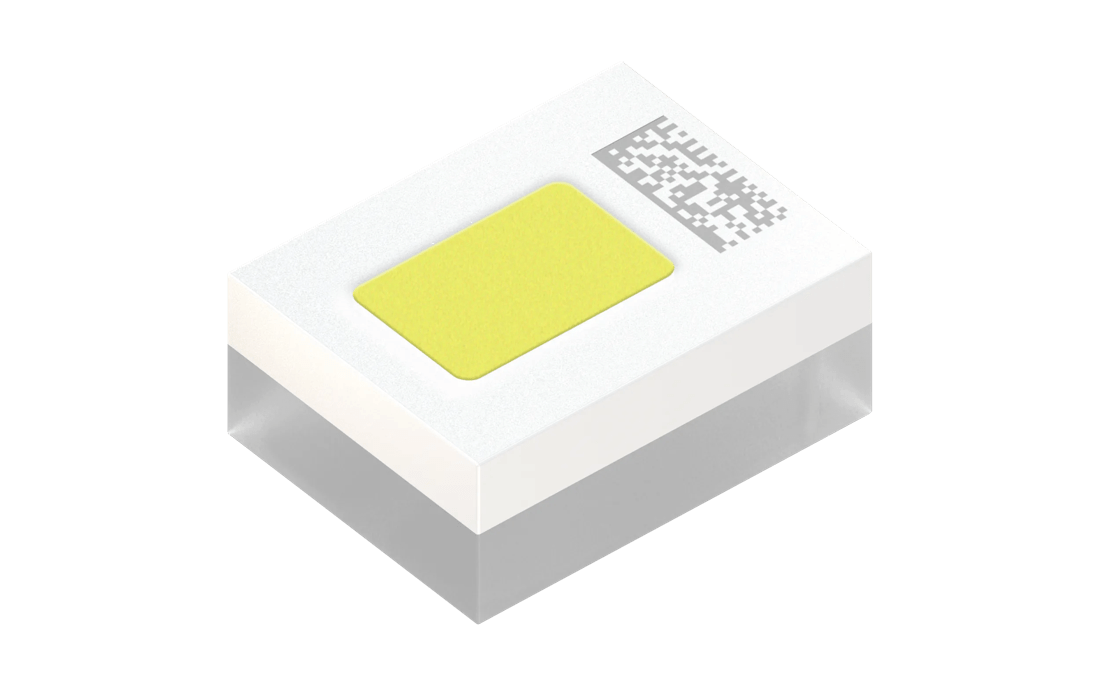

OSRAM OSLON™ Compact RM, KW CVLDM1.TK
×
×

Description

The OSLON™ Compact RM product family features a compact light source with a rectangular light emitting area with an aspect ratio of 1:1.5 aiming for improved optical efficiency for slim headlamp system solutions.
Datasheet
KW CVLDM1.TK
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
3.3 W
High
Brightness
ΦV
385 lm
IV
126 cd
ΦE
1230 mW
IE
402 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
135 °C
Dimension
l
1.65 mm
w
1.25 mm
h
0.73 mm
Device qualification
AEC-Q102

Ordering information

Product Type Description Ordering code Availability
KW CVLDM1.TK-T313-4L35M3 ΦV = 315 ... 455 lm (IF = 1000 mA) Q65113A9594 Full production
KW CVLDM1.TK-T313-5L16M1 ΦV = 315 ... 455 lm (IF = 1000 mA) Q65113A9593 Full production
KW CVLDM1.TK-T313-5L25M2 ΦV = 315 ... 455 lm (IF = 1000 mA) Q65113A9592 Full production
