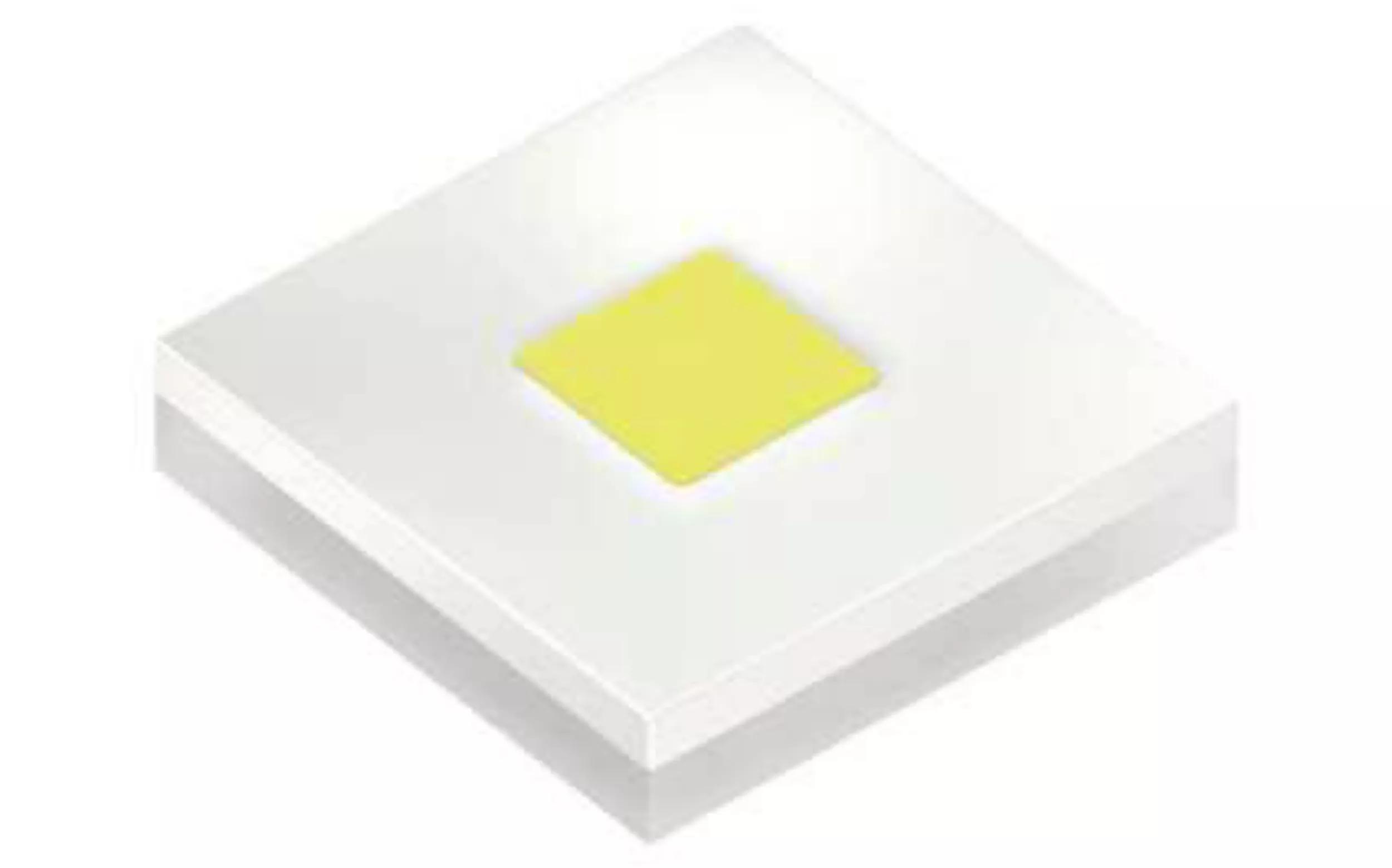

OSRAM OSRAM OSTAR® Projection Compact, KW CSLNM1.TG

OSRAM OSRAM OSTAR® Projection Compact, KW CSLNM1.TG
×

Description

Compact light source with isolated heat sink for improved heat dissipation and high current chip technology for increased light output.
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
3.0 W
High
Brightness
ΦV
365 lm
IV
121 cd
ΦE
1130 mW
IE
375 mW/sr
ΦP
1.64 µmol/s
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
3.0 mm
w
3.0 mm
h
0.75 mm

Application fields

Lighting Entertainment

Ordering codes

Product Type Description Order No. Availability
KW CSLNM1.TG-6N8N-EBVF46FCBB46-15B5 ΦV = 315 ... 450 lm (IF = 1000 mA) Q65113A8504
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
KW CSLNM1.TG-5N8N-ebvF46fcbB46-15B5 ΦV = 280 ... 450 lm (IF = 1000 mA) Q65113A1587
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Digi-Key
Buy now
Mouser
Buy now

Downloads

Application note

Projection with LED light sources

Product related
EN
DE
CN
JP

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General information
EN
DE
CN
JP

Details on photobiological safety of LED light sources

General information
EN
DE
CN
JP

Importing rayfiles and ray-measurement files of LEDs

General information
EN
DE
CN
JP

Chemical compatibility of LEDs

General information
EN
DE
CN
JP

Measurement, calibration and measurement uncertainty of LEDs

General information
EN
DE
CN
JP

Handling of silicon resin LEDs

Handling recommendations
EN
DE
CN
JP

ESD protection while handling LEDs

Handling recommendations
EN
DE
CN
JP

Dry pack information

Handling recommendations
EN
DE
CN
JP

Fundamentals of LED handling

Handling recommendations
EN
DE
CN
JP

Ceramic LEDs — Details on handling and processing

Soldering and processing
EN
DE
CN
JP

Processing of SMD LEDs

Soldering and processing
EN
DE
CN
JP

Recommended pick-and-place tools of LEDs

Soldering and processing
EN
DE
CN
JP

Further details on lead free reflow soldering of LEDs

Soldering and processing
EN
DE
CN
JP

PCB technologies for LED applications

Thermal management
EN
DE
CN
JP

The thermal measurement point of LEDs

Thermal management
EN
DE
CN
JP

Package related thermal resistance of LEDs

Thermal management
EN
DE
CN
JP

LED solder point temperature measurement with thermocouples

Thermal management
EN
DE
CN
JP

Thermal management of LED light sources

Thermal management
EN
DE
CN
JP

Behaviour of InGaN LEDs in parallel circuits

Electrical design
EN
DE
CN
JP

LED diagnosis in automotive applications

Electrical design
EN
DE
CN
JP

Dimming InGaN LEDs

Electrical design
EN
DE
CN
JP

Comparison of simple LED circuits for low power LEDs

Electrical design
EN
DE
CN
JP

Dimming LEDs with respect to grouping current

Electrical design
EN
DE
CN
JP

The basic principles of Electrical Overstress (EOS)

Electrical design
EN
DE
CN
JP

Resources

Images

Tools

LightGuide

Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.

Open LightGuide

Product selector

Find the right product.
Product selector

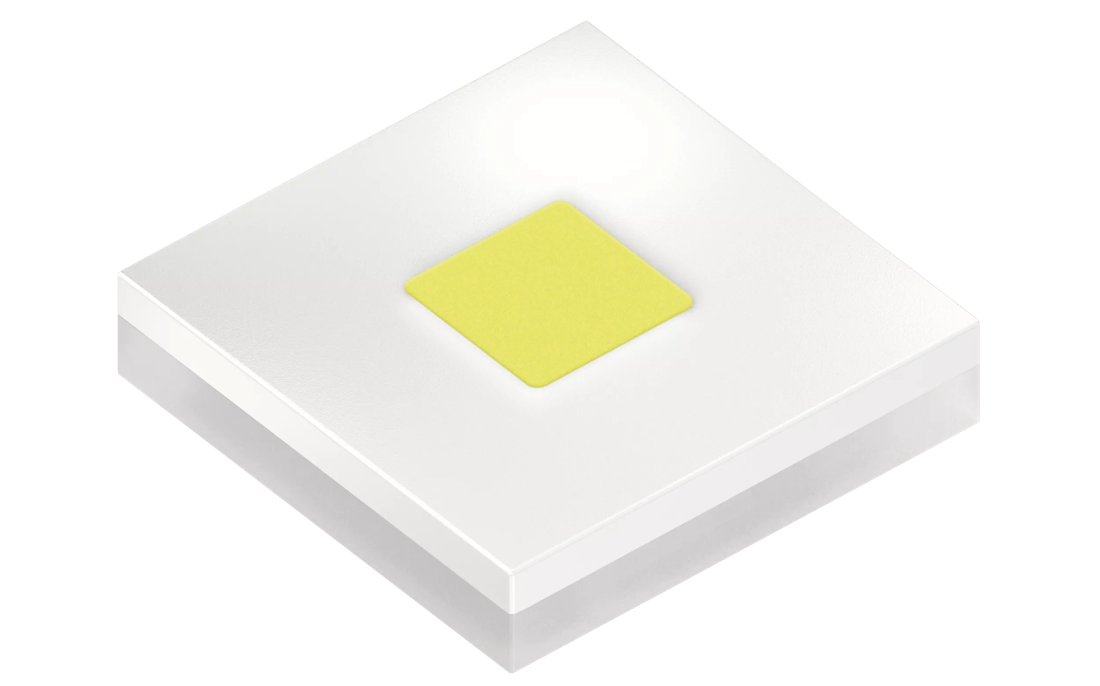

More OSRAM OSTAR® projection
