Details
Parameters
Photocurrent
1.5
µA
Fall time
tf
0.12
µs
Rise time
tf
0.12
µs
Spectral range of sensitivity typ.
λ10%
min.
700
nm
λ10%
max.
1100
nm
Radiant sensitive area
A
0.35
mm²
Beam angle
∢
140
°
Dimension
l
3.2
mm
w
1.5
mm
h
1.09
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

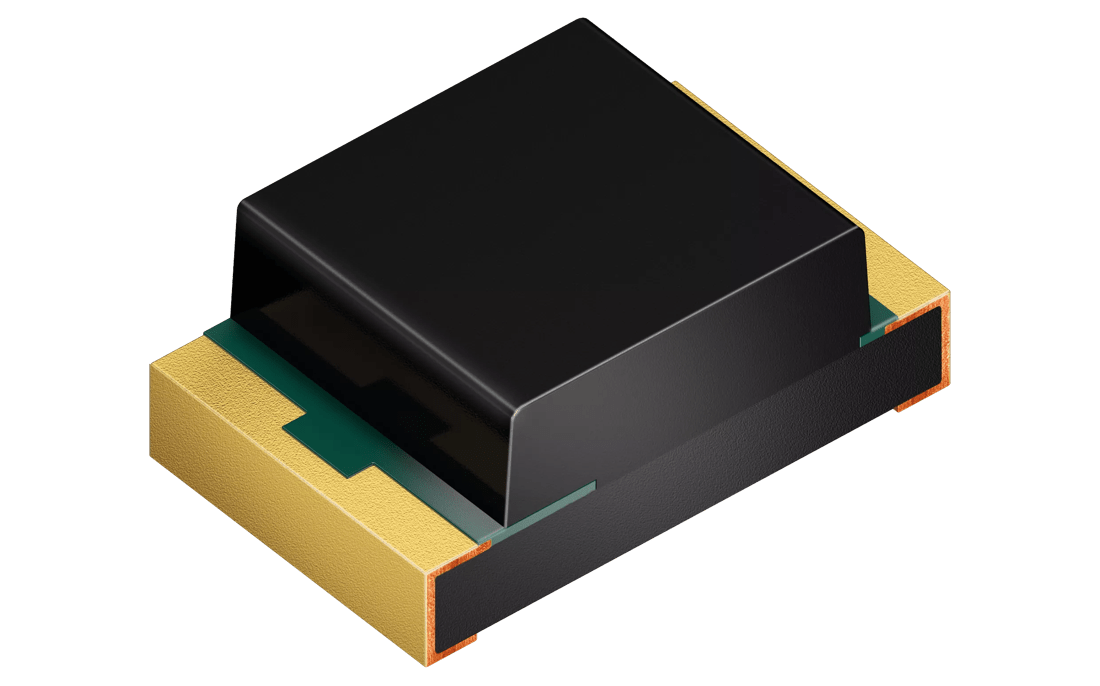

| SFH 2700 FA A01 | IP = ≥ 1.33 µA, (IP=1.5 µA typ.) (Ee=0.5 mW/cm²) | Q65112A4785 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
