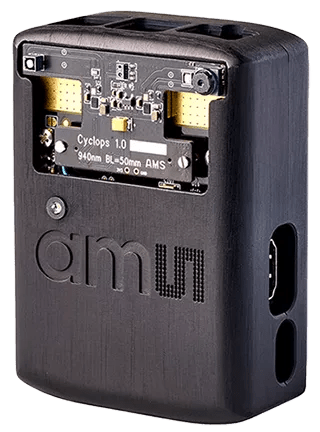

ams ATHENA_REF_MO Reference design kit

Mira130 is a global shutter CMOS image sensor with NIR enhancement of the QE. Target QE is 40% at 940nm, and 58% at 850nm. It outputs monochrome images with an effective pixel array of 1080H × 1280V, and supports complex on-chip operations such as high dynamic range (HDR) mode, external triggering, windowing, horizontal or vertical mirroring. Its maximum frame rate is 120fps at a full image resolution. On-chip registers can be accessed via the standard I2C interface.

BELAGO1.1 is a proprietary infrared dot-pattern illuminator for stereoscopic imaging and structured light platforms with eye-safety feature. It produces a focus-free, high-contrast dot pattern that algorithms can use to address low-texture situations and achieve high-accuracy depth maps. An additional benefit of the dot pattern is a reduction of the computational load required to perform the depth calculation.The BELAGO1.1 dot-pattern illuminator is provided in a miniature package that is compatible with standard lead-free reflow processes. As such, it can be successfully used onboard of a great variety of 3D sensing platforms, from mobile to IoT to robotics, both for stereoscopic imaging and structured light. BELAGO1.1 emitters project 5k dots, focus-free, in a random pattern at 940nm.
