ams CHR71000_EVM_MO Evaluation kit

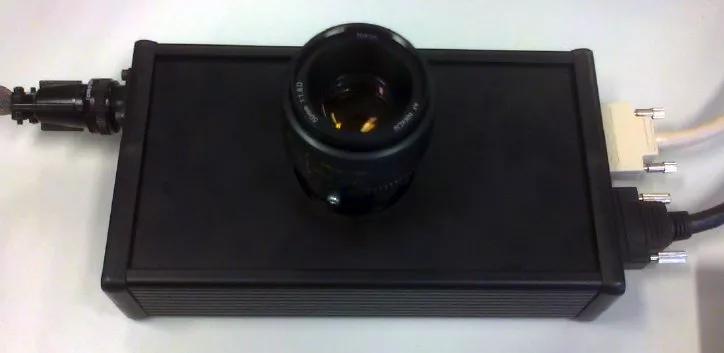

The CHR71000 evaluation kit can be used for testing and verifying the operation and image quality of the CHR70M image sensor. The package includes following components: CHR71000 board with lens holder, metal casing, power cable, Nikon Lens Nikkor AF 50mm f/1.8D, 2 CameraLink cables (2m), NI PCI1433 frame grabber card (inside PC), Lenovo ThinkCentre mini tower model + software, CD with documentation (including schematics and VHDL code) and software. The system allows the user to evaluate all aspects of the CHR71000 with full access to the sensor registers. Single or multiple image grabbing and saving is possible in multiple formats. Colour processing is not supported by this evaluation system.
