ams TMF882X_EVM_EB_SHIELD Evaluation kit

ams TMF882X_EVM_EB_SHIELD Evaluation kit
×

Description

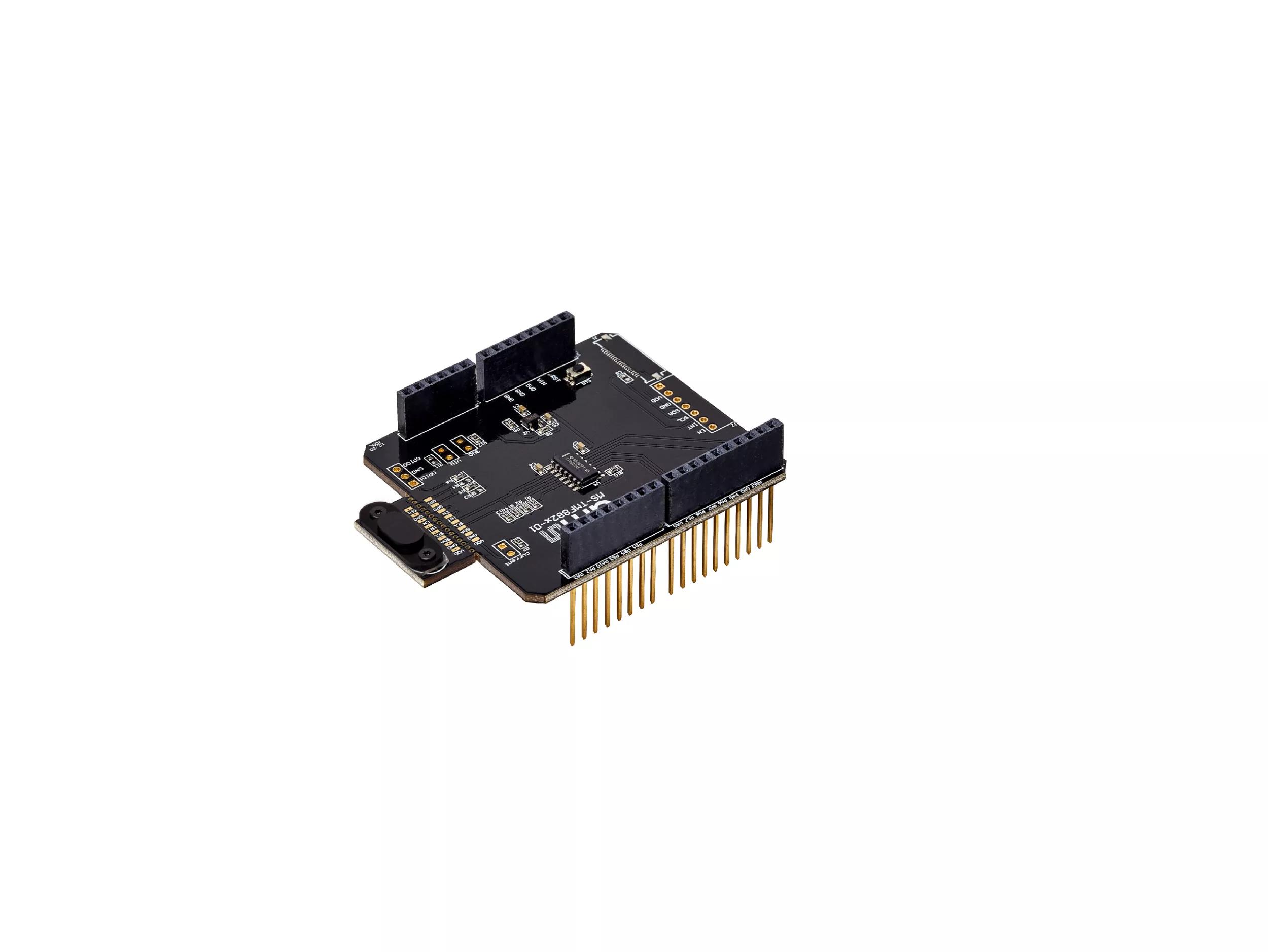

The TMF882X MCU Shield board is desgined to fit the Arduino UNO µC development board format.  This board features a small breakaway section which includes the TMF8828 device, 4 air gap spacers and 4 cover glass samples are included within this kit.
User guide Select & order
Contact us Support

Ordering codes

Product Type Description Order No. Availability
TMF882X-SHIELD
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product

Downloads

For other documents visit our Download center

User guides

TMF882X-SHIELD_QG001023_1-00

Quick start guide
EN
DE
CN
JP

TMF882x Mcu Shield Evm

User guide
EN
DE
CN
JP

Application note

Technical documents

Images

Related Products

ams TMF8828 configurable 8x8 multi-zone Time-of-Flight Sensor

ams TMF8828 configurable 8x8 multi-zone Time-of-Flight Sensor

The TMF8828 is a direct time-of-flight (dToF) sensor in a single modular package with associated VCSEL. The dToF device is based on SPAD, TDC and histogram technology and achieves 5000 mm detection range. Due to its lens on the SPAD, it supports 3x3, 4x4, 3x6 and 8x8 multizone output data and a wide, dynamically adjustable, field of view. A multi-lens-array (MLA) inside the package above the VCSEL widens up the FoI (field of illumination). All processing of the raw data is performed on-chip and the TMF8828 provides distance information together with confidence values on its I2C interface.
Details and Datasheet
ams TMF8821 configurable 4x4 multi-zone Time-of-Flight Sensor

ams TMF8821 configurable 4x4 multi-zone Time-of-Flight Sensor

The TMF8821 is a direct time-of-flight (dToF) sensor in a single modular package with associated VCSEL. The dToF device is based on SPAD, TDC and histogram technology and achieves 5000 mm detection range. Due to its lens on the SPAD, it supports 3x3, 4x4 and 3x6 multizone output data and a wide, dynamically adjustable, field of view. A multi-lens-array (MLA) inside the package above the VCSEL widens up the FoI (field of illumination). All processing of the raw data is performed on-chip and the TMF8821 provides distance information together with confidence values on its I2C interface.
Details and Datasheet
ams TMF8820 3x3 multi-zone Time-of-Flight Sensor

ams TMF8820 3x3 multi-zone Time-of-Flight Sensor

The TMF8820 is a direct time-of-flight (dToF) sensor in a single modular package with associated VCSEL. The dToF device is based on SPAD, TDC and histogram technology and achieves 5000 mm detection range. Due to its lens on the SPAD, it supports 3x3 multizone output data and a wide, dynamically adjustable, field of view. A multi-lens-array (MLA) inside the package above the VCSEL widens up the FoI (field of illumination). All processing of the raw data is performed on-chip and the TMF8820 provides distance information together with confidence values on its I2C interface.
