ams TSL2585_EVM_EB Evaluation kit

×

Description

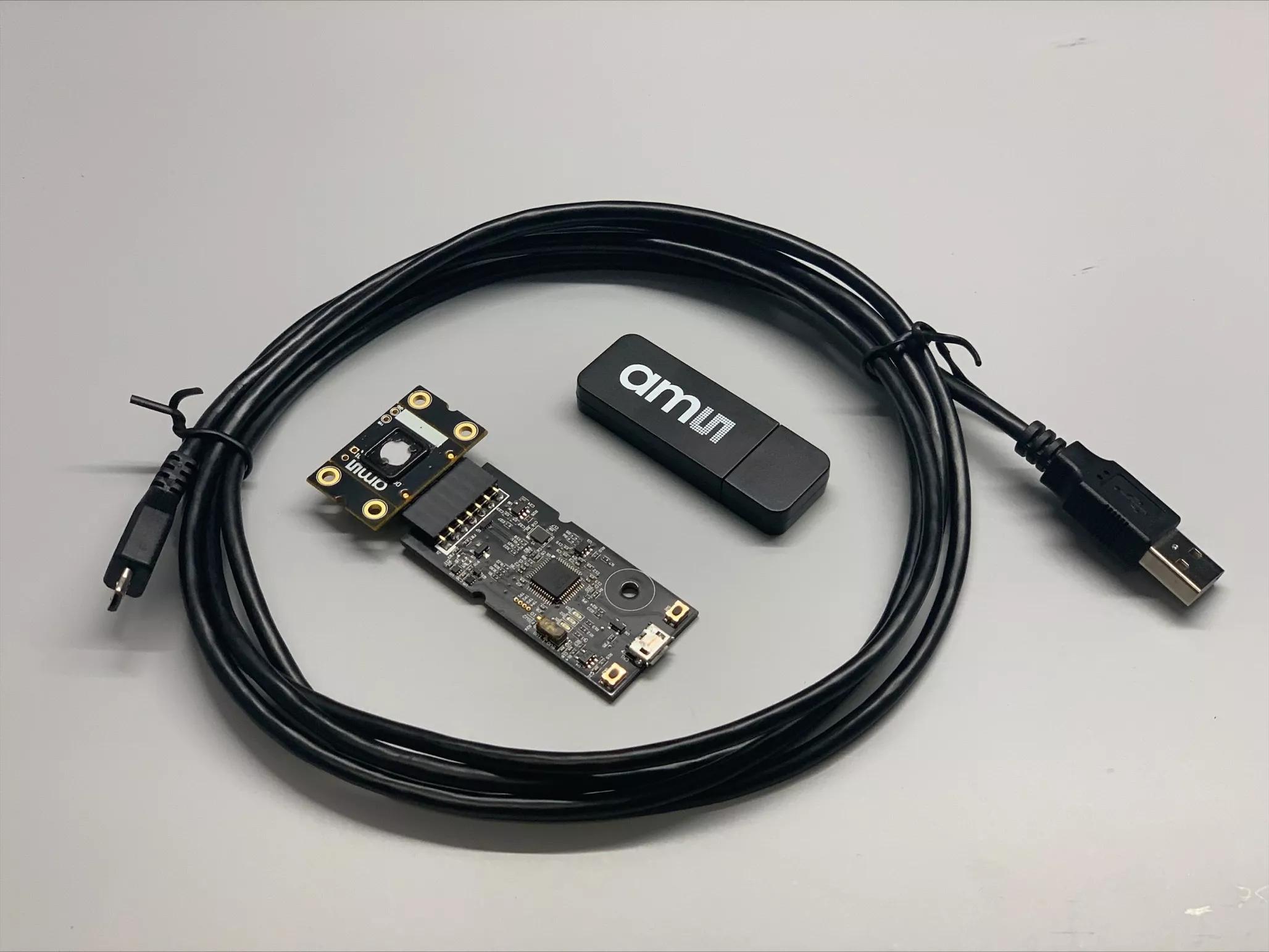

The TSL2585 Evaluation Kit comes with everything needed to evaluate the TSL2585 light sensor module. The evaluation kit comprises of a main controller board with a PIC microcontroller, an industry standard USB 2.0 interface (with an USB cable), a TSL2585 module daughter card, "plug-n-play" USB HID class drivers, software documentation, and GUI software allowing users to control the light sensor settings as the PIC takes the TSL2585 I²C digital outputs to calculate lux and UVI.
User guide
Contact us Support

Downloads

User guides
TSL2585_QG001010_3-00 · Quick start guide · PDF · en_US
TSL2585_UG001017_3-00 · User guide · PDF · en_US

Technical documents
TSL2585_EVM_Schematic_AD001008 · Application Data · PDF · en_US

Images
TSL2585EvalKit · Images · PNG

Software
TSL2585_EvalSW_withDiffusor_v2-0-0.exe · Evaluation software · EXE · en_US
TSL2585_EvalSW_v2-1-0.exe · Evaluation software · EXE · en_US
