ams AS1100 LED Driver IC

Discontinued
×
Discontinued

Description

The AS1100 is a SPI interfaced, dot-matrix LED driver for a 8x8 LED matrix or 8 7-segment LEDs. It includes a 4-bit PWM for the entire matrix and an external resistor can be used for analog current adjustment up to 5mA per LED.
Datasheet
AS1100 DS000273
English
Download
Contact us Support

Details

Features

  • Up to 64 LEDs in an 8x8 matrix
  • 4-bit PWM and resistor current control per matrix
  • BCD decoder

Benefits

  • Drive high LED count very easily
  • Brightness adjustment of the matrix
  • Allows decoding for 7-segment LEDs

Application fields

Computing Computing

Downloads

Datasheets
AS1100 DS000273 · Datasheet · PDF · en_US

Application note
AS1100 05 AN000120 · Product related · PDF · en_US

Environmental documents
MDF_174970080_AS1100WE_MD000158_2-00 · Material declaration form · PDF · en_US
MDF_174970080_AS1100WE-T_MD000159_2-00 · Material declaration form · PDF · en_US
MDF_174970081_AS1100WL_MD000160_3-00 · Material declaration form · PDF · en_US
MDF_174970081_AS1100WL-T_MD000161_2-00 · Material declaration form · PDF · en_US

Lifecycle documents
AS1xxx_AS25xx_AS3xxx_AS73211_AS89020_SL900A_EN001008_1-00 · Product discontinuation notification (PDN) · PDF · en_US

Images

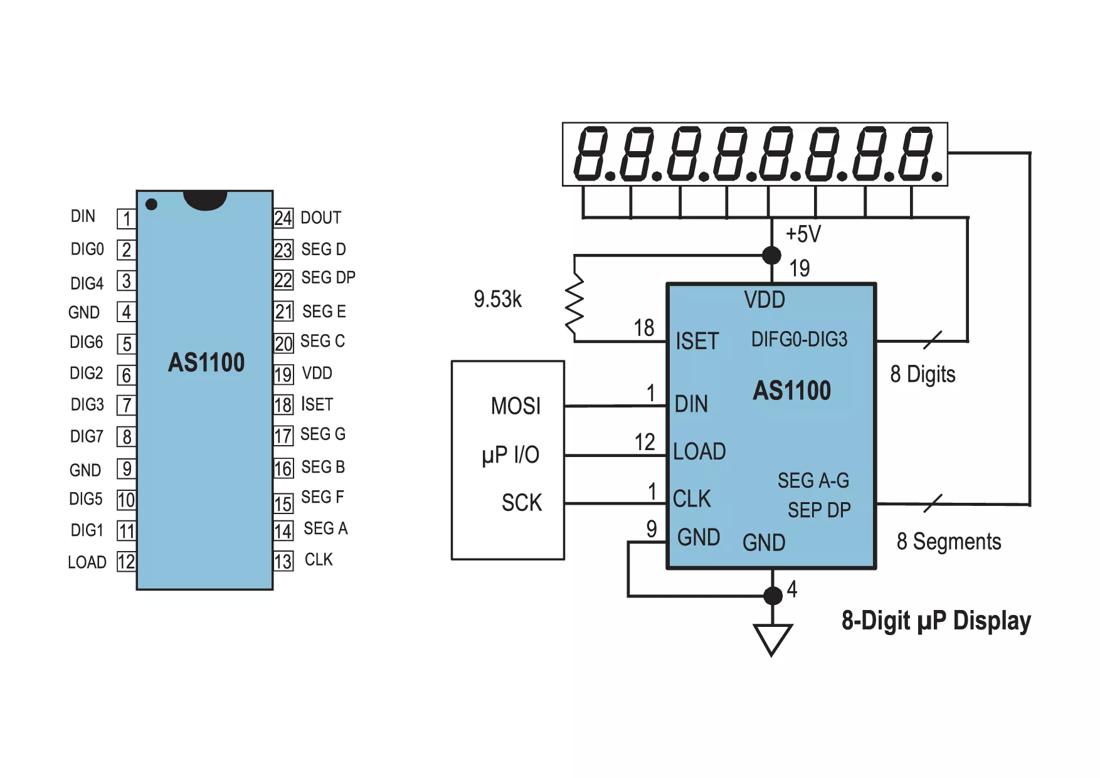

AS1100 · Block diagram · PNG
