ams AS1106 LED Driver IC

Discontinued
×
Discontinued

Description

The AS1106 is a SPI interfaced, dot-matrix LED driver IC for a 8x8 LED matrix or 8 7-segment LEDs. It includes a 4-bit PWM for the entire matrix and an external resistor can be used for analog current adjustment up to 40mA.
Datasheet
AS1106-07 DS000171
English
Download
Contact us Support

Details

Features

  • Up to 64 LEDs in an 8x8 matrix
  • 4-bit PWM and resistor current control per matrix
  • BCD decoder

Benefits

  • Drive high LED count very easily
  • Brightness adjustment of the matrix
  • Allows decoding for 7-segment LEDs

Application fields

Computing Computing

Downloads

Datasheets
AS1106-07 DS000171 · Datasheet · PDF · en_US

Environmental documents
MDF_174970076_AS1106WL_MD000170_2-00 · Material declaration form · PDF · en_US
MDF_174970076_AS1106WL-T_MD000171_2-00 · Material declaration form · PDF · en_US
MDF_174970077_AS1106WE_MD000172_2-00 · Material declaration form · PDF · en_US
MDF_174970077_AS1106WE-T_MD000173_2-00 · Material declaration form · PDF · en_US

Lifecycle documents
AS1xxx_AS25xx_AS3xxx_AS73211_AS89020_SL900A_EN001008_1-00 · Product discontinuation notification (PDN) · PDF · en_US

Images

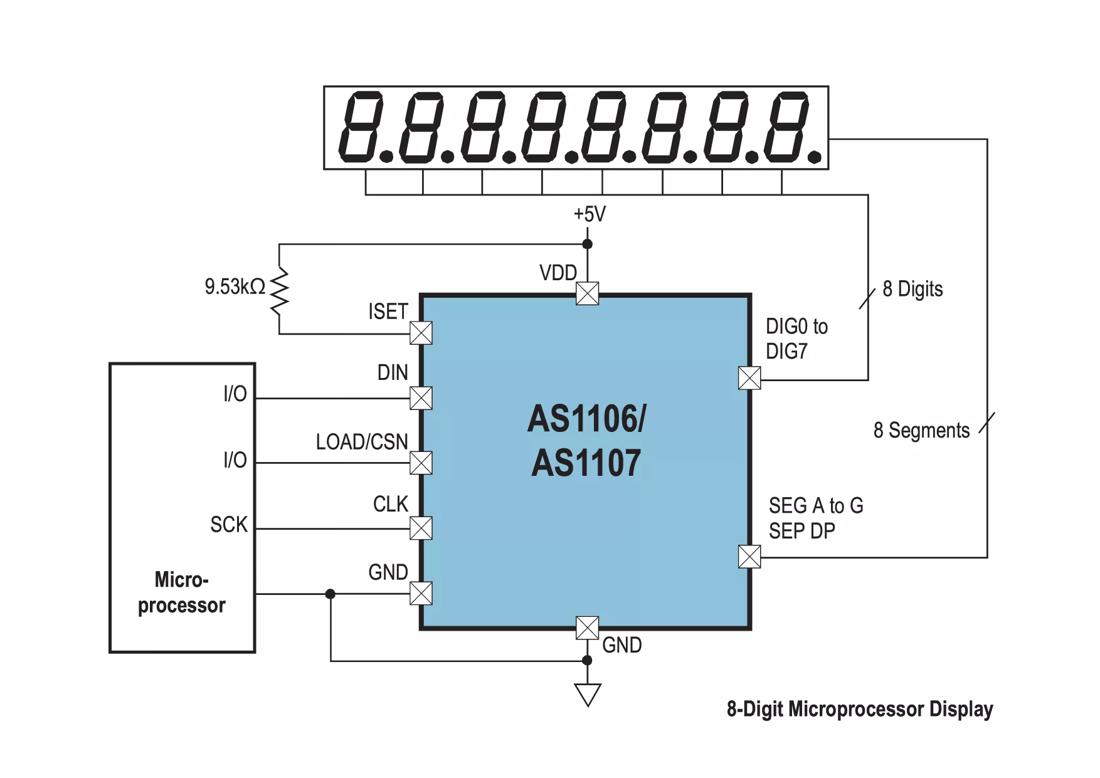

AS1106 AS1107 · Block diagram · PNG
