ams AS1108 LED Driver IC

ams AS1108 LED Driver IC
Discontinued
×
Discontinued

Description

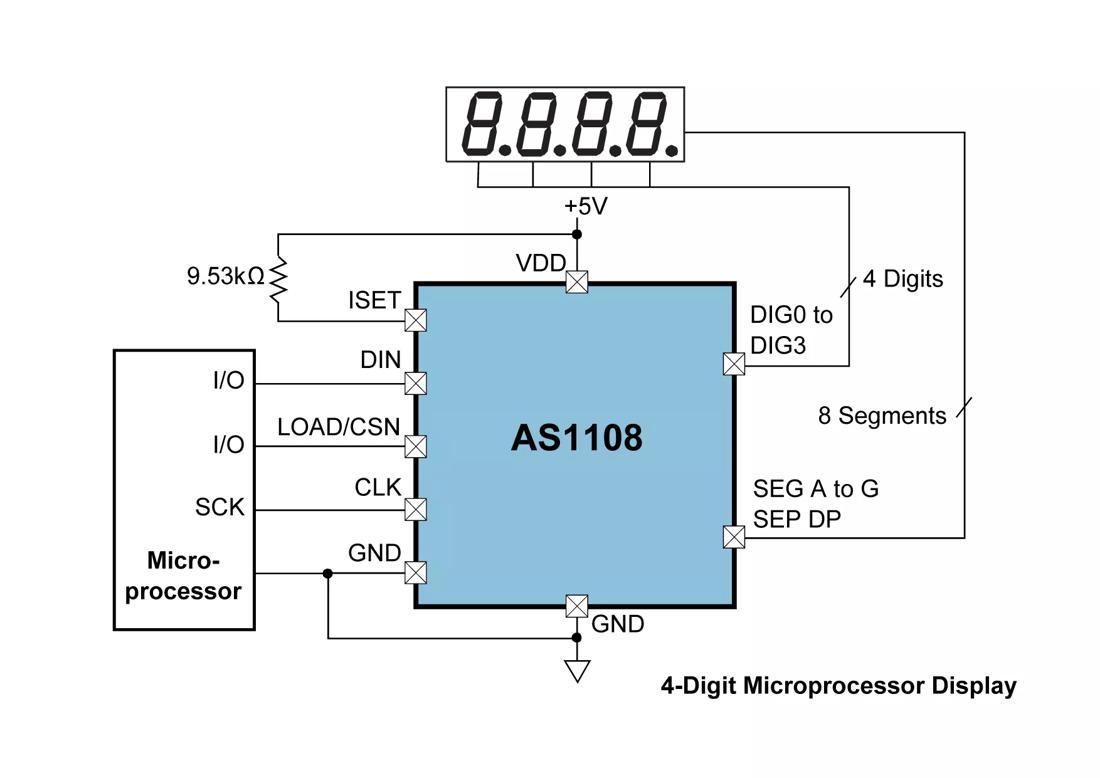

The AS1108 is a SPI interfaced, dot-matrix LED driver IC for a 4x8 LED matrix or 4 7-segment LEDs. It includes a 4-bit PWM for the entire matrix and an external resistor can be used for analog current adjustment up to 10mA per LED.
Datasheet
AS1108 DS000169
English
Download
Contact us Support

Details

Features

  • Up to 32 LEDs in a 4x8 matrix
  • 4-bit PWM and resistor current control per matrix
  • BCD decoder

Benefits

  • Drive high LED count very easily
  • Brightness adjustment of the matrix
  • Allows decoding for 7-segment LEDs
