ams AS1110 LED Driver IC

Discontinued
×
Discontinued

Description

The AS1110 is a SPI interfaced, 100mA 16-channel direct LED driver IC and offers on-chip diagnostics. It can detect open/short LED position during operation and offers a (flickerfree) low current diagnostic mode.
Datasheet
AS1110 DS000172
English
Download
Contact us Support

Details

Features

  • Open/Short error detection
  • Low current diagnostic mode
  • 100mA output current
  • 50MHz SPI interface

Benefits

  • Improved picture quality & reduced maintenance cost through identifying defect LEDs & its position
  • No flickering during LED test
  • Highest brightness of LEDs
  • Allows high resolution external PWM via SPI

Application fields

Computing Computing

Downloads

Datasheets
AS1110 DS000172 · Datasheet · PDF · en_US

Environmental documents
MDF_176170003_AS1110-BQFR_MD000289_1-00 · Material declaration form · PDF · en_US
MDF_176170029_AS1110-BQFT_MD000290_1-00 · Material declaration form · PDF · en_US
MDF_176170030_AS1110-BSST_MD000291_1-00 · Material declaration form · PDF · en_US
MDF_176170030_AS1110-BSSU_MD000292_1-00 · Material declaration form · PDF · en_US
MDF_176170055_AS1110A-BSST_MD000293_1-00 · Material declaration form · PDF · en_US

Lifecycle documents
AS1110_AS1113_PN000184_1-00 · Product change notification (PCN) · PDF · en_US
AS1xxx_AS25xx_AS3xxx_AS73211_AS89020_SL900A_EN001008_1-00 · Product discontinuation notification (PDN) · PDF · en_US

Images

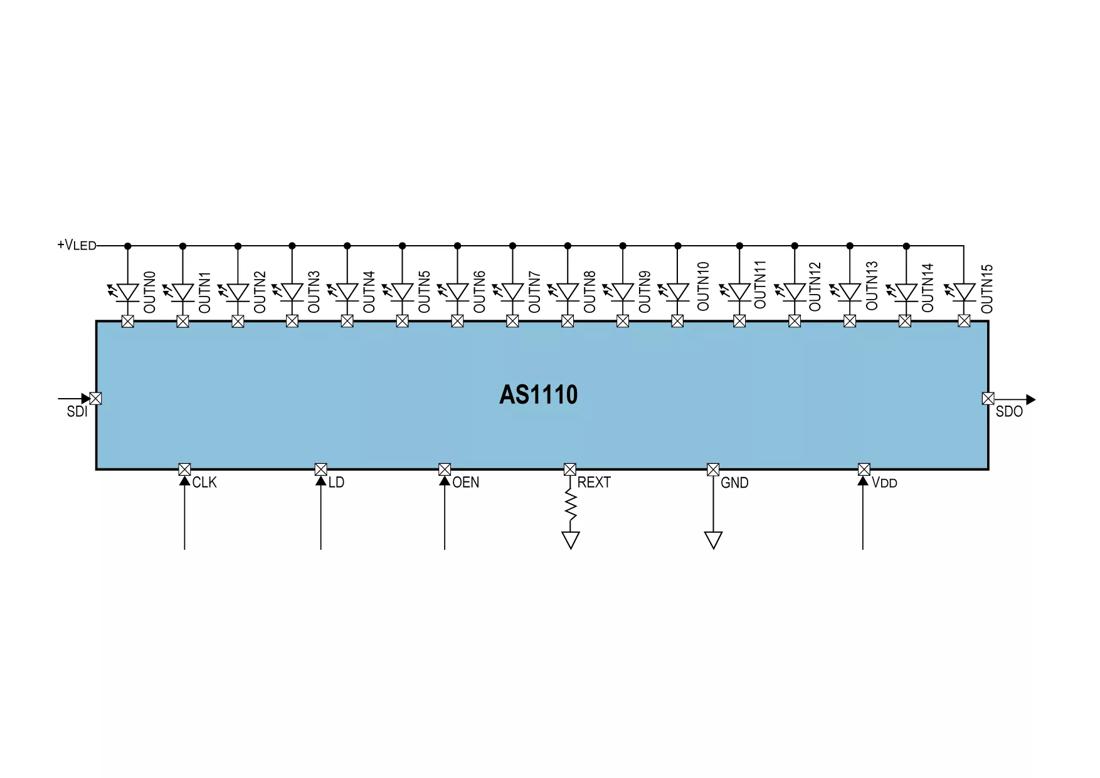

AS1110 · Block diagram · PNG
