ams AS1112 LED Driver IC

ams AS1112 LED Driver IC
Discontinued
×
Discontinued

Description

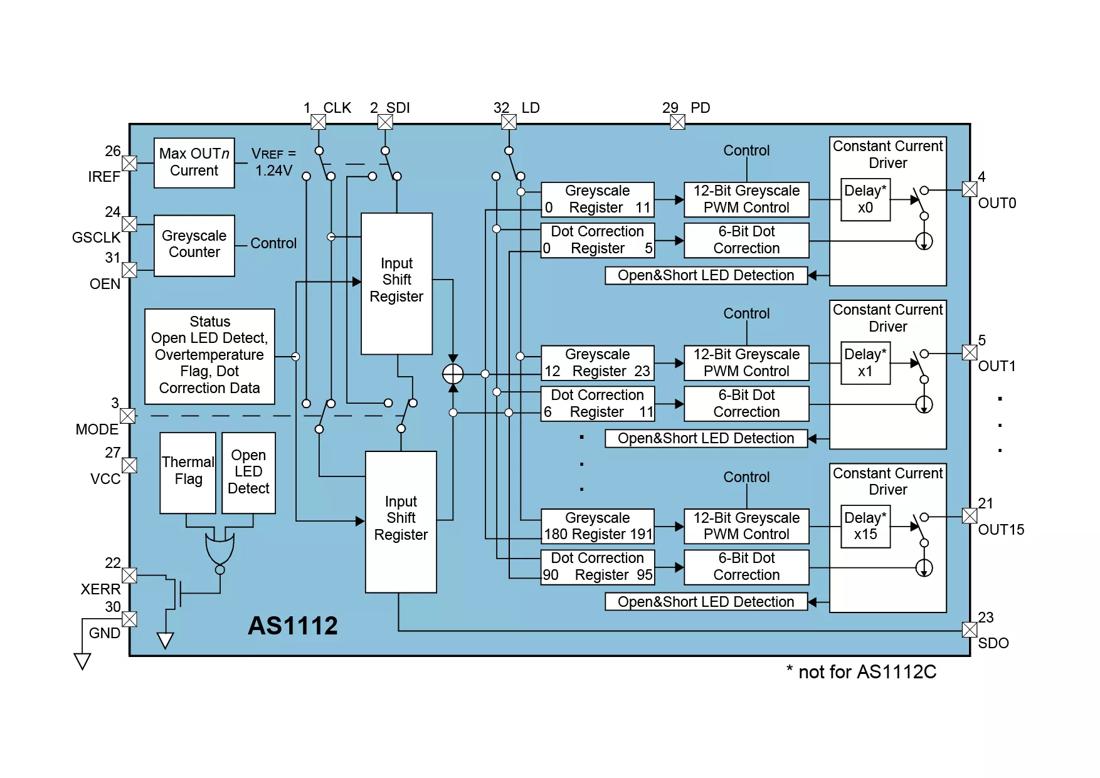

The AS1112 is a SPI interfaced, 100mA 16-channel direct LED driver IC with 12-bit internal PWM and 6-bit analog current adjustment. It can detect open/short LED position during operation. The AS1112 includes very fast output drivers to have maintain accurracy at low duty cycles.
Datasheet
AS1112 DS000164
English
Download
Contact us Support

Details

Features

  • 12-bit PWM control (4096 steps)
  • 6-bit analog current control
  • 100mA output current
  • Fast output drivers

Benefits

  • 6.8 billion colors
  • RGB LED white point adjustment
  • Highest brightness of LEDs
  • Excellent PWM performance over all duty cycles
