ams AS1113 LED Driver IC

Discontinued
×
Discontinued

Description

The AS1113 is a SPI interfaced, 50mA 16-channel direct LED driver and offers on-chip diagnostics. It can detect open/short LED position during operation and offers a (flickerfree) low current diagnostic mode.
Datasheet
AS1113 DS000251
English
Download
Contact us Support

Details

Features

  • Open/Short error detection
  • Low current diagnostic mode
  • 50mA output current
  • 50MHz SPI interface

Benefits

  • Improved picture quality & reduced maintenance cost through identifying defect LEDs & its position
  • No flickering during LED test
  • Highest brightness of LEDs
  • Allows high resolution external PWM via SPI

Application fields

Computing Computing

Downloads

Datasheets
AS1113 DS000251 · Datasheet · PDF · en_US

Environmental documents
MDF_176170062_AS1113-BSST_MD000295_1-00 · Material declaration form · PDF · en_US
MDF_176170062_AS1113-BSSU_MD000297_1-00 · Material declaration form · PDF · en_US
MDF_176170069_AS1113-BQFR_MD000298_1-00 · Material declaration form · PDF · en_US
MDF_176170069_AS1113-BQFT_MD000299_1-00 · Material declaration form · PDF · en_US

Lifecycle documents
AS1110_AS1113_PN000184_1-00 · Product change notification (PCN) · PDF · en_US
AS1xxx_AS25xx_AS3xxx_AS73211_AS89020_SL900A_EN001008_1-00 · Product discontinuation notification (PDN) · PDF · en_US

Images

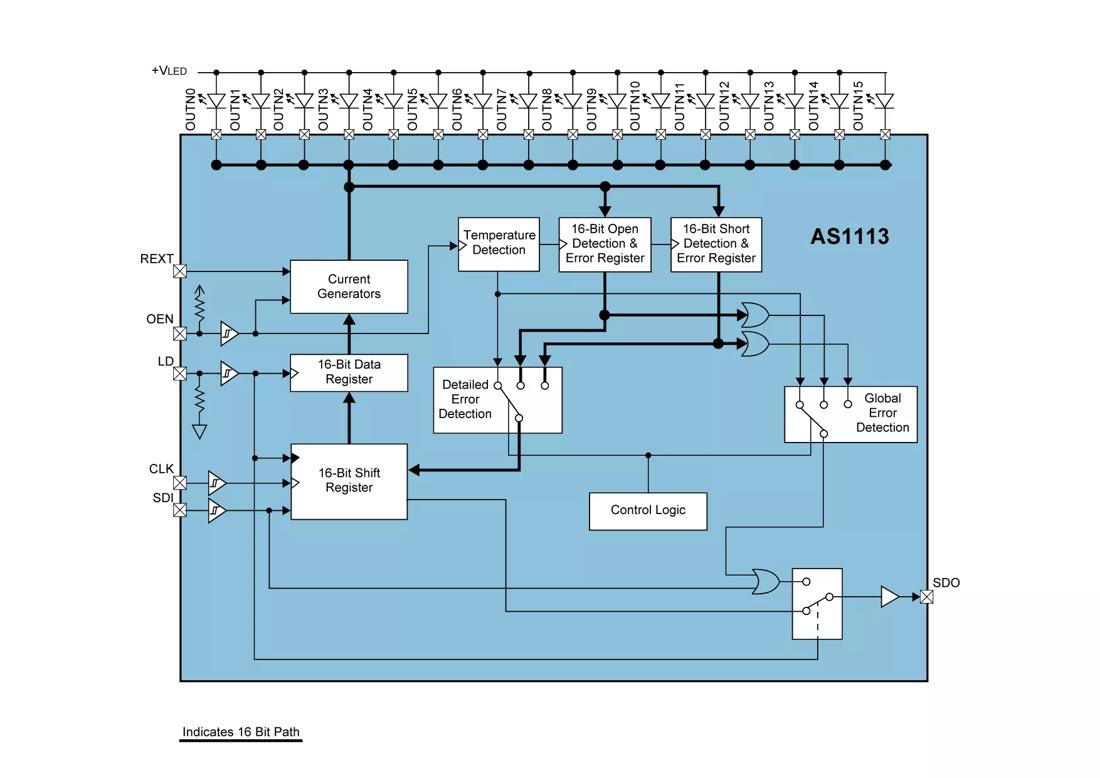

AS1113 · Block diagram · PNG
