ams AS3689 Lighting Management Unit

Discontinued
×
Discontinued

Description

The AS3689 is a highly-integrated CMOS power and lighting management unit to supply power to LCD and camera modules in mobile telephones, and other 1-cell Li+ or 3-cell NiMH powered devices. The device incorporates one low-power, low-dropout regulator (LDO), one DC-DC step-up converter for white backlight LEDs, one high-power charge pump for camera flash LEDs, support for up to 11 current sinks, a two-wire serial interface, and control logic all onto a single device.
Datasheet
AS3689 DS000253
English
Download
Contact us Support

Details

Features

  • High-efficiency DC-DC step-up converter
  • High-efficiency high-power charge pump
  • Supports up to 15 current sinks
  • PWM generation and LED pattern generator

Benefits

  • Up to 25V/50mA for white LEDs
  • CP output current up to 400mA
  • 3 high voltage current sinks
  • Autonomous logarithmic up/down dimming

Downloads

Datasheets
AS3689 DS000253 · Datasheet · PDF · en_US

Lifecycle documents
AS1xxx_AS25xx_AS3xxx_AS73211_AS89020_SL900A_EN001008_1-00 · Product discontinuation notification (PDN) · PDF · en_US

Images

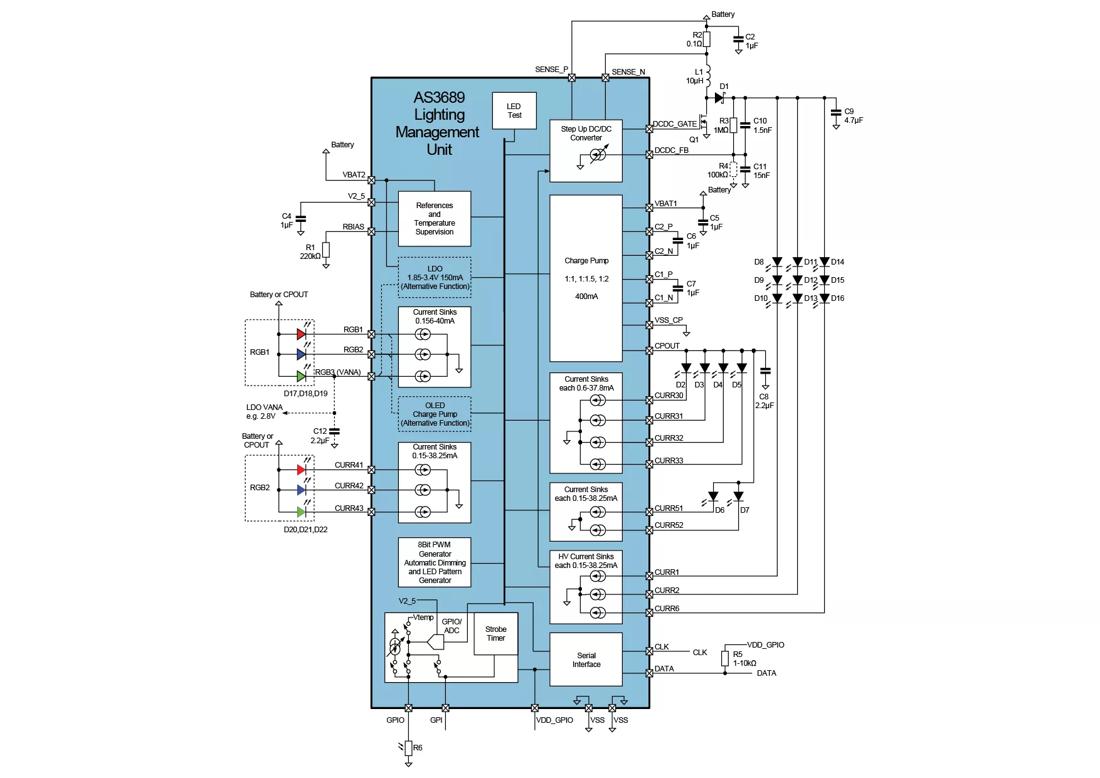

AS3689 · Block diagram · PNG
