Details
Parameters
Color of emission
Deep Blue (439-461 nm)
Peak wavelength
λ
447
nm
Current
IF
2000
mA
Brightness
ΦE
60000
mW
Beam angle
∢
7
°
∢
26
°
Dimension
l
30.0
mm
w
25.5
mm
h
4.19
mm
Operating temperature
Top
min.
-0
°C
Top
max.
70
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

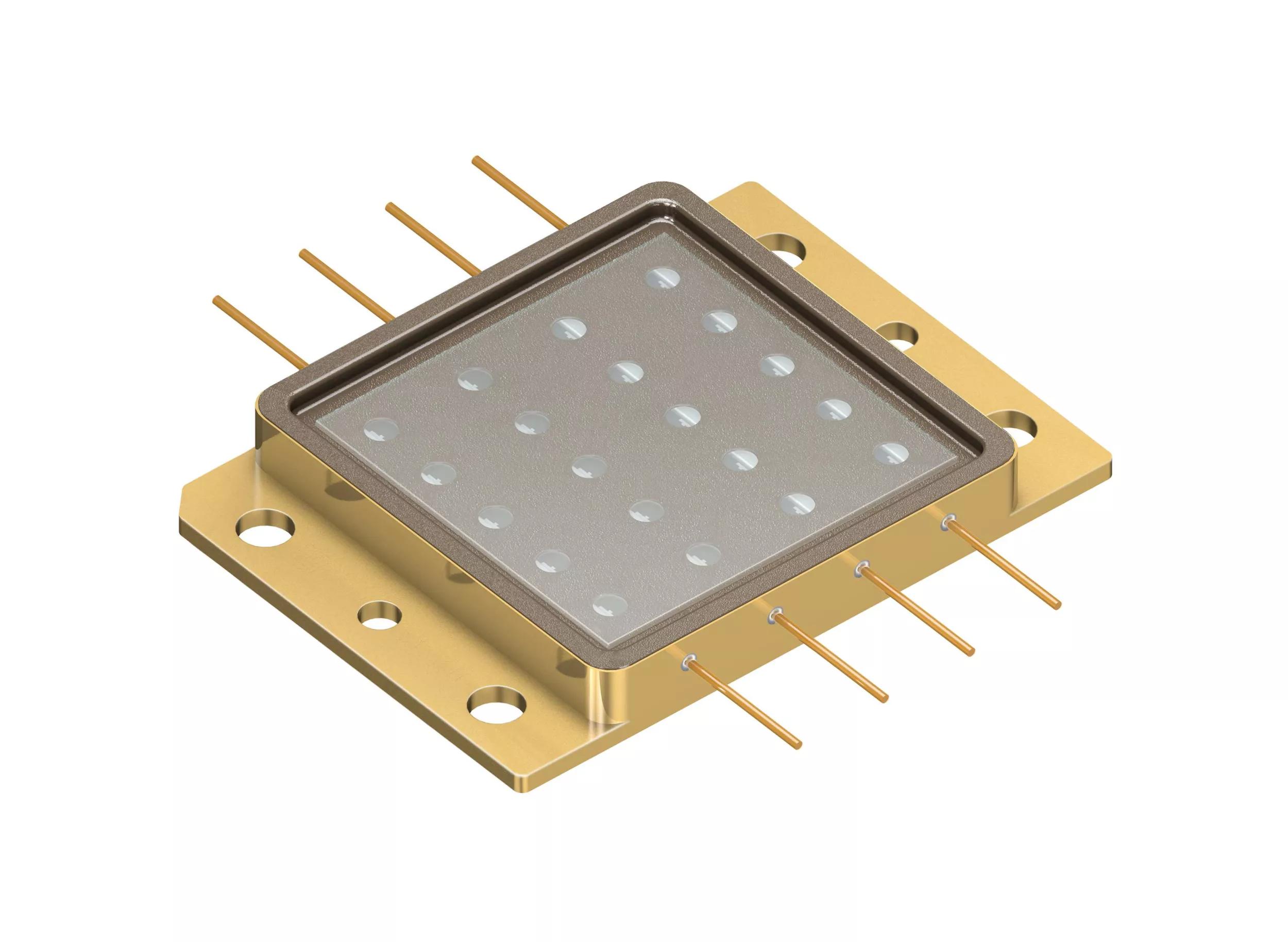

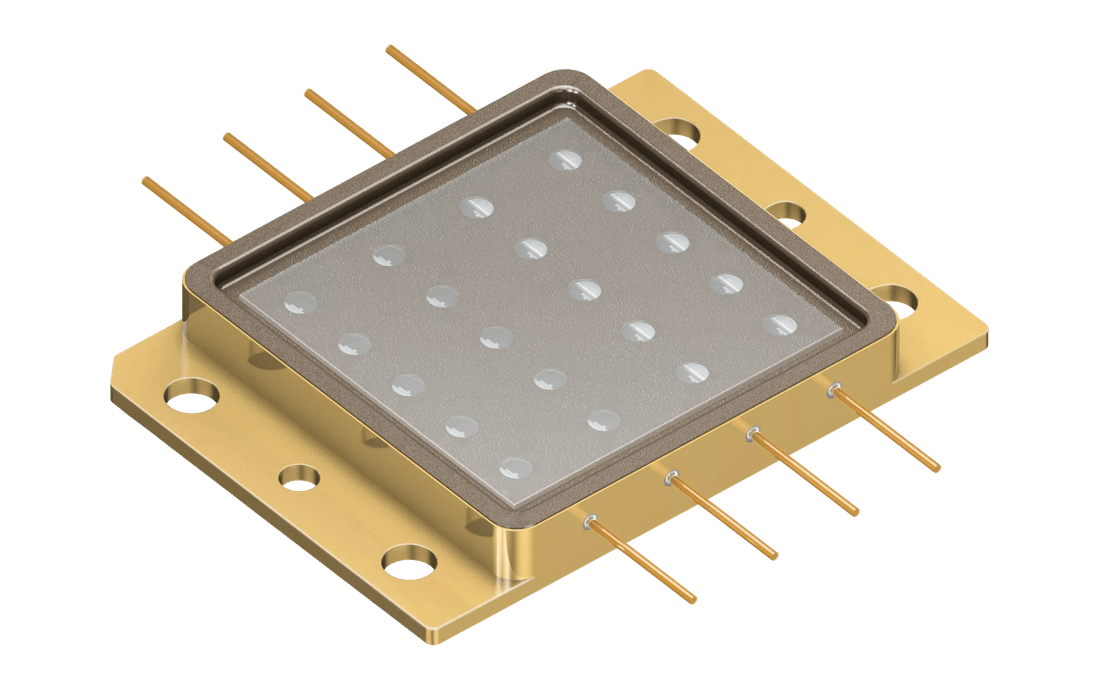

| PLPM4 450 | Popt = 60 W (typ.) (IF=2 A) | Q65111A5713 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
