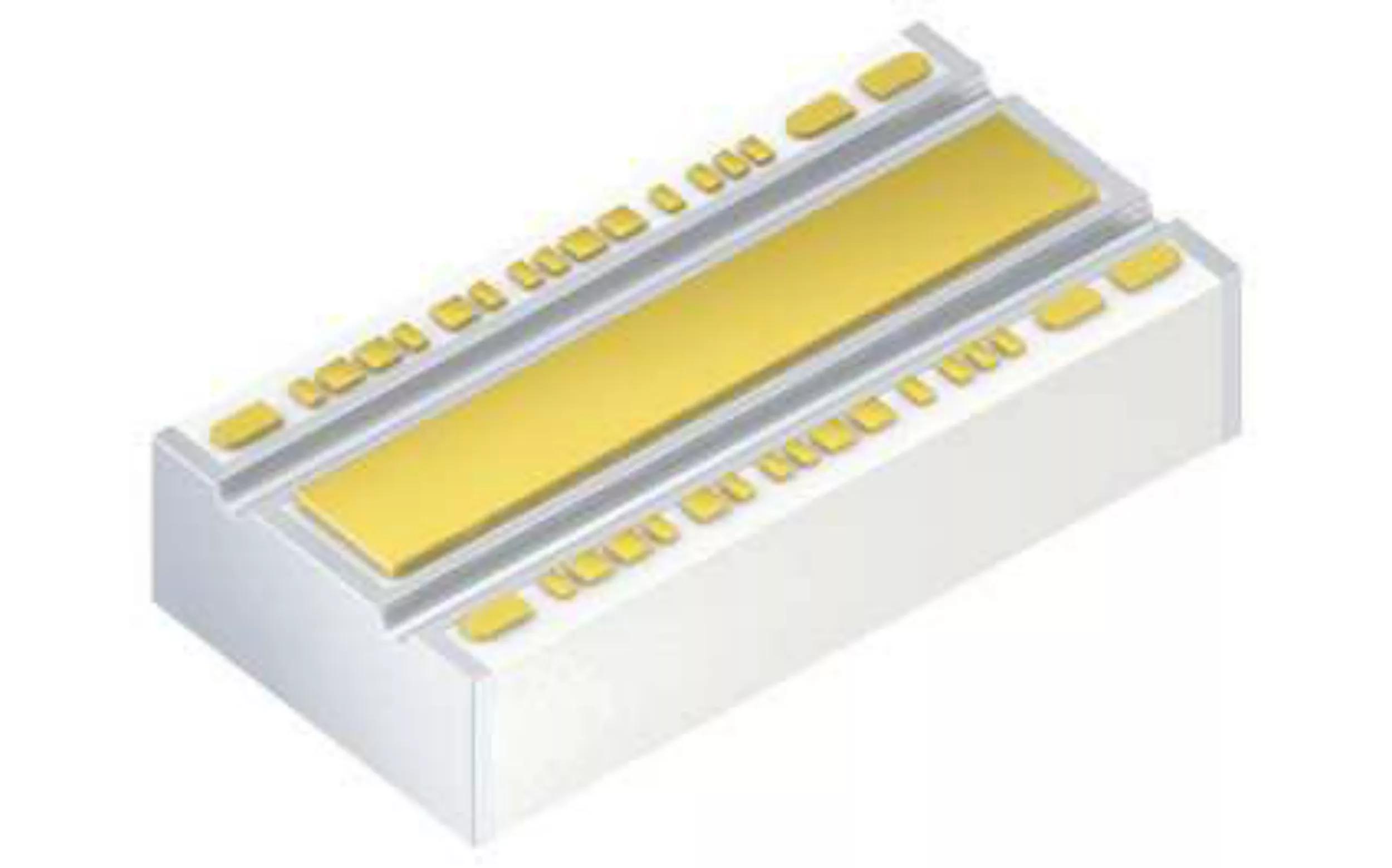

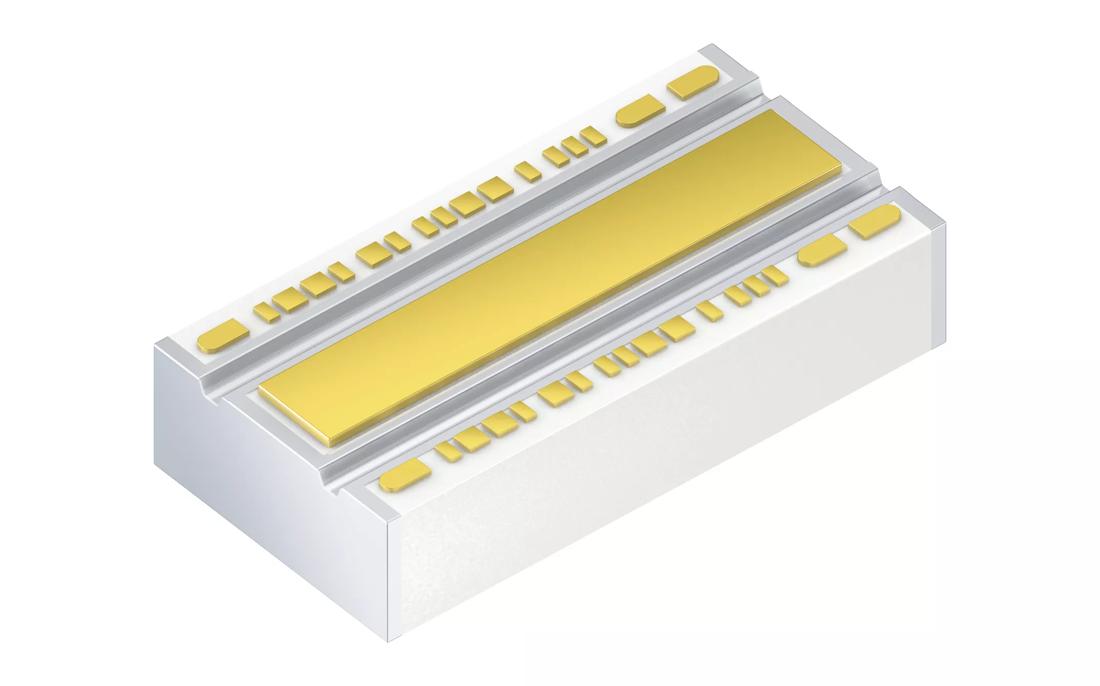

OSRAM IR LASER Diode, SPL DP90_3

×

Description

Nanostack Pulsed Laser Diode

Details

Parameters

Color of emission
Infrared (>800 nm)
Peak wavelength
λ
908 nm
Current
IF
20000 mA
Brightness
ΦE
65000 mW
Beam angle
10 °
25 °
Dimension
l
0.6 mm
w
0.3 mm
h
0.115 mm
Operating temperature
Top min.
-40 °C
Top max.
105 °C

Ordering codes

Product Type Description Order No. Availability
SPL DP90_3 Popt= 65 W typ. (IF = 20 A) Q65113A0420
