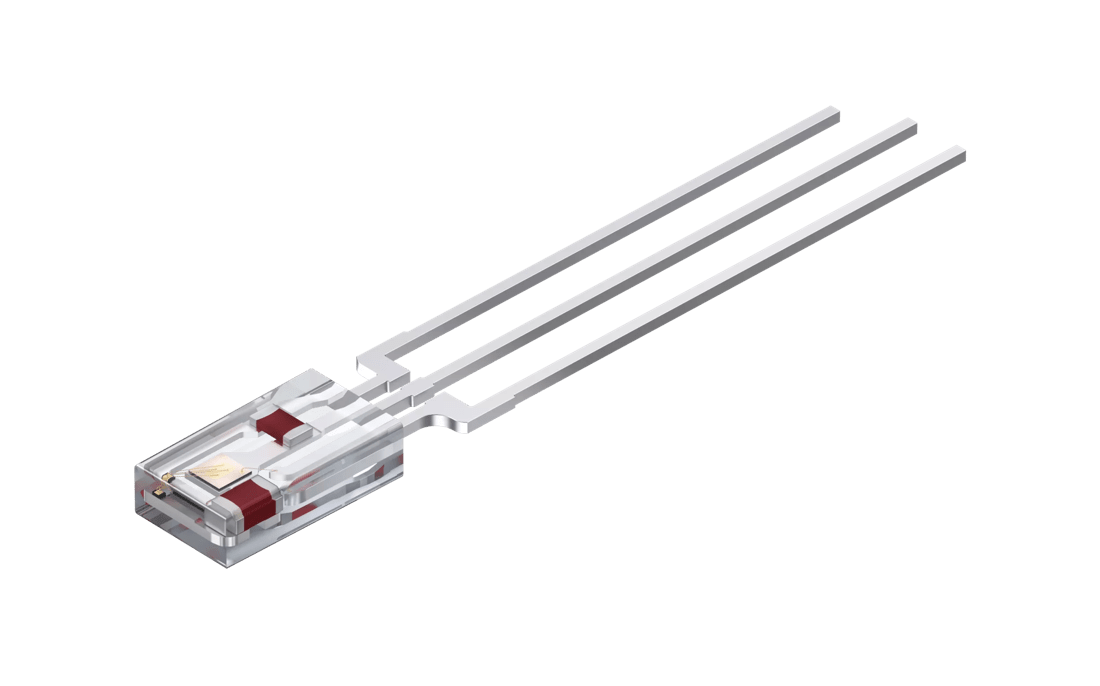

OSRAM Radial Smart Laser, SPL LL90_3

Discontinued
×
Discontinued

Description

Hybrid Pulsed Laser Diode with Integrated Driver Stage 905 nm, 70 W Peak Power
Datasheet
SPL LL90_3
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Infrared (>800 nm)
Peak wavelength
λ
905 nm
Current
IF
999 mA
Brightness
ΦE
70000 mW
Beam angle
∢
15 °
∢
30 °
Dimension
l
2.5 mm
w
5.0 mm
h
8.6 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Application fields

Industrial Robotics

Ordering information

Product Type Description Ordering code Availability
SPL LL90_3 λpeak = 895 ... 915 nm, (λpeak = 905 nm typ.) (Popt = 70 W) Q65110A1009 Discontinued

Downloads

Datasheets
SPL LL90_3 · Datasheet · PDF · en_US

Application note
Operating the pulsed laser diode SPL LL90_3 · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
