Details
Parameters
Color of emission
Infrared (>800 nm)
Peak wavelength
λ
905
nm
Current
IF
8000
mA
Brightness
ΦE
75000
mW
Beam angle
∢
12
°
∢
25
°
Dimension
l
5.0
mm
w
5.0
mm
h
4.6
mm
Operating temperature
Top
min.
-40
°C
Top
max.
85
°C
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

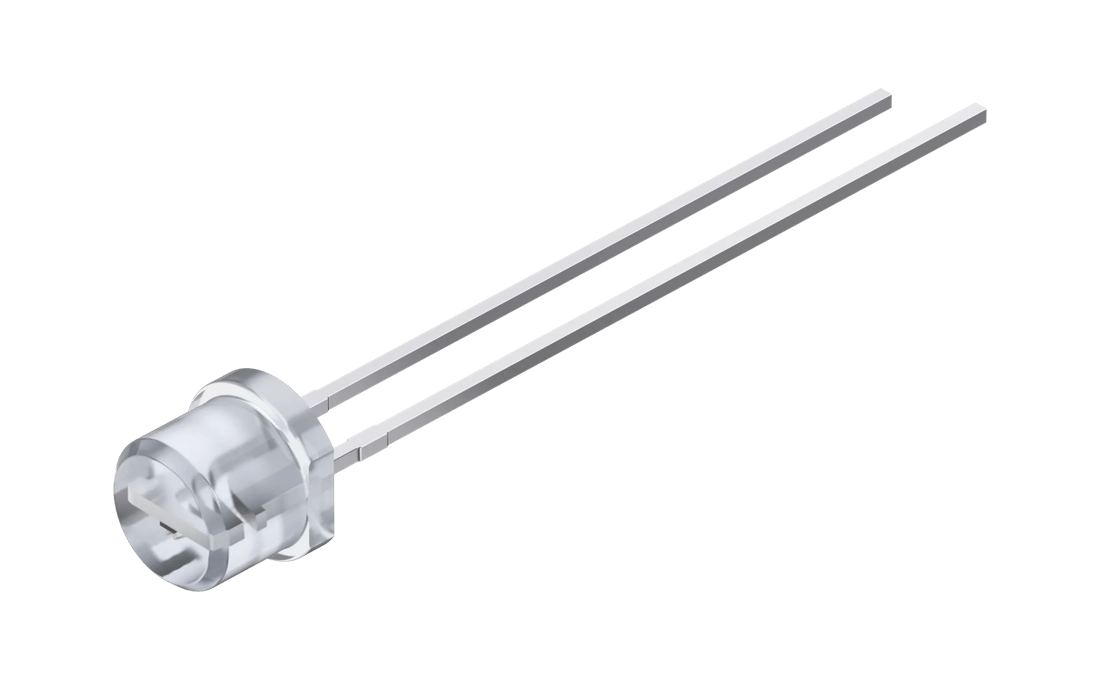

| SPLPL90AT03 | λpeak = 895 ... 915 nm, (λpeak = 905 nm typ.) (Popt = 30 W) | Q65113A5477 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
