OSRAM SMT Laser, SPL S4L90A_3 A01

×

Description

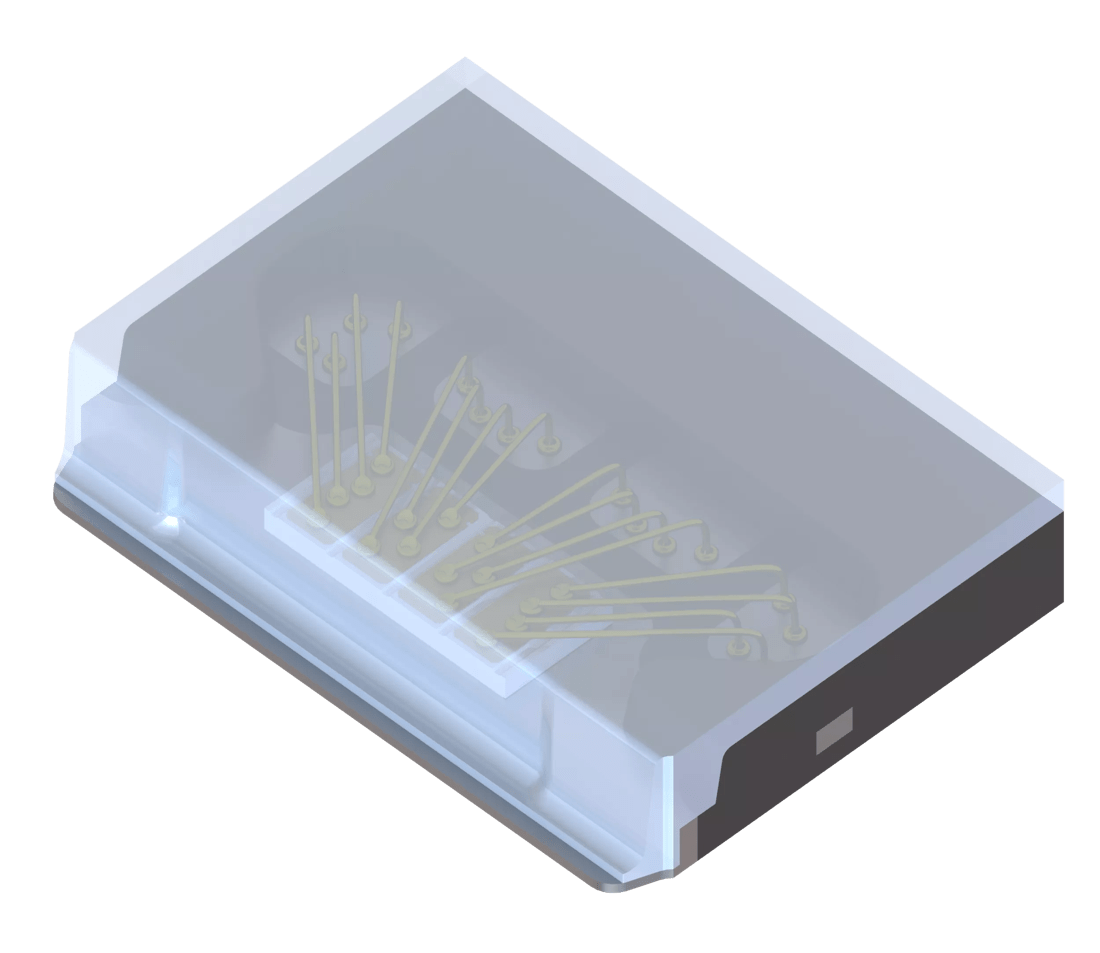

4 Channel SMT Laser in QFN package
Datasheet
SPL S4L90A_3 A01
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Infrared (>800 nm)
Peak wavelength
λ
908 nm
Current
IF
40000 mA
Brightness
ΦE
500000 mW
Beam angle
∢
13 °
∢
40 °
Dimension
l
3.35 mm
w
2.45 mm
h
0.69 mm
Operating temperature
Top min.
-40 °C
Top max.
105 °C

Ordering information

Product Type Description Ordering code Availability
SPL S4L90A_3 A01 Popt = 500 W typ. (IF = 160 A) Q65112A6167 Full production

Downloads

Datasheets
SPL S4L90A_3 A01 · Datasheet · PDF · en_US

Application note
Time-of-flight (ToF) measurement using pulse lasers · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US

Technical documents
OSRAM OS Flyer Industrial LiDAR (EN) · Factsheet · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images
SPL S4L90A_3 A01 · Images · PNG
