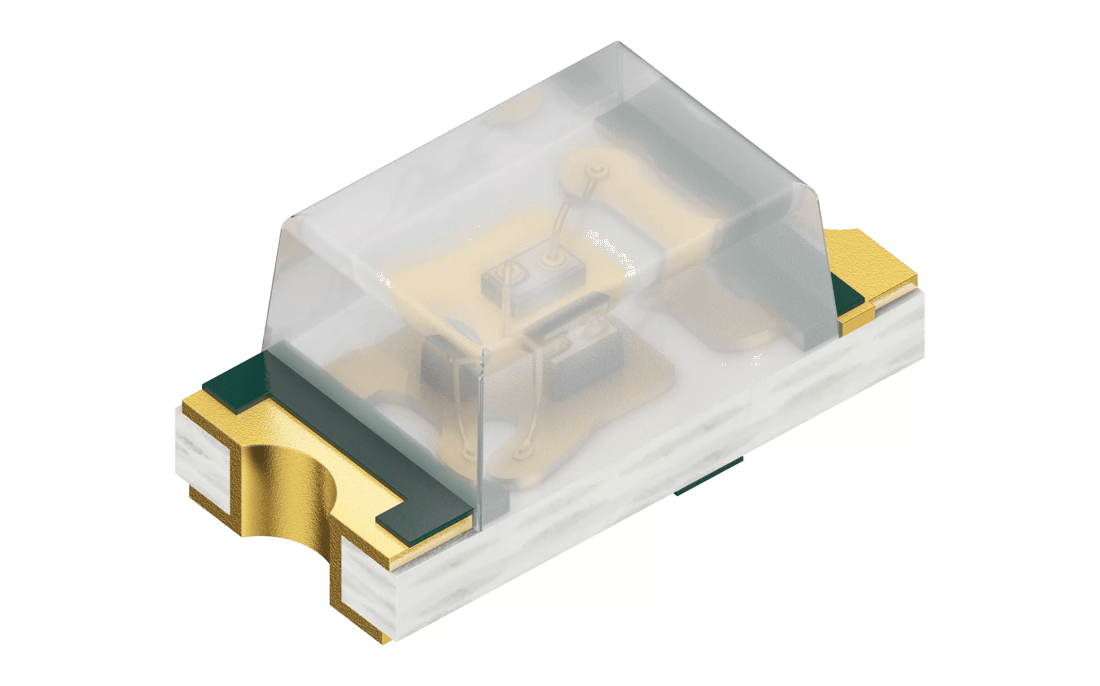

OSRAM Chip LED 0603, LB Q99G.01

OSRAM Chip LED 0603, LB Q99G.01
New
×
New

Description

The square package with just 2mm outline combines best performance with a small footprint for environments where improved corrosion robustness is needed. A centralized chip allows an easy integration into optical systems. The availability of all main colors and white points gives highest flexibility in various application areas.
Datasheet
LB Q99G.01
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Blue (450-480 nm)
Electrical power
0.014 W
Low
Brightness
ΦV
0.428 lm
IV
0.0925 cd
ΦE
6.05 mW
IE
1.31 mW/sr
Beam angle
∢
140 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
1.6 mm
w
0.8 mm
h
0.7 mm

Ordering codes

Product Type Description Order No. Availability
LB Q99G.01-P1R1-35-1 Iv = 45.0 ... 140.0 mcd (IF = 5 mA) Q65113A5255
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
