OSRAM Chip LED 0603, LG Q976.01

×

Description

The Chip LED 0603 is the product of choice for low power status indication in electronics. The small package size allows compact designs, like 7-segment displays, symbol backlighting or button and switch illumination in control panels. The high brightness of the LED ensures good visibility at any time.
Datasheet
LG Q976.01
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Green (565-575 nm)
Electrical power
0.04 W
Low
Brightness
ΦV
0.129 lm
IV
0.0315 cd
ΦE
0.205 mW
IE
0.0501 mW/sr
Beam angle
∢
140 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
1.6 mm
w
0.8 mm
h
0.7 mm

Ordering information

Product Type Description Ordering code Availability
LG Q976.01-MGNI-35-1 Iv = 18 ... 45 mcd (IF = 20 mA) Q65113A5260 Full production

Downloads

Datasheets
LG Q976.01 · Datasheet · PDF · en_US

Application note
Light guides · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

Resources
Electrical Simulation · Electrical Simulation · FOLDER

Images

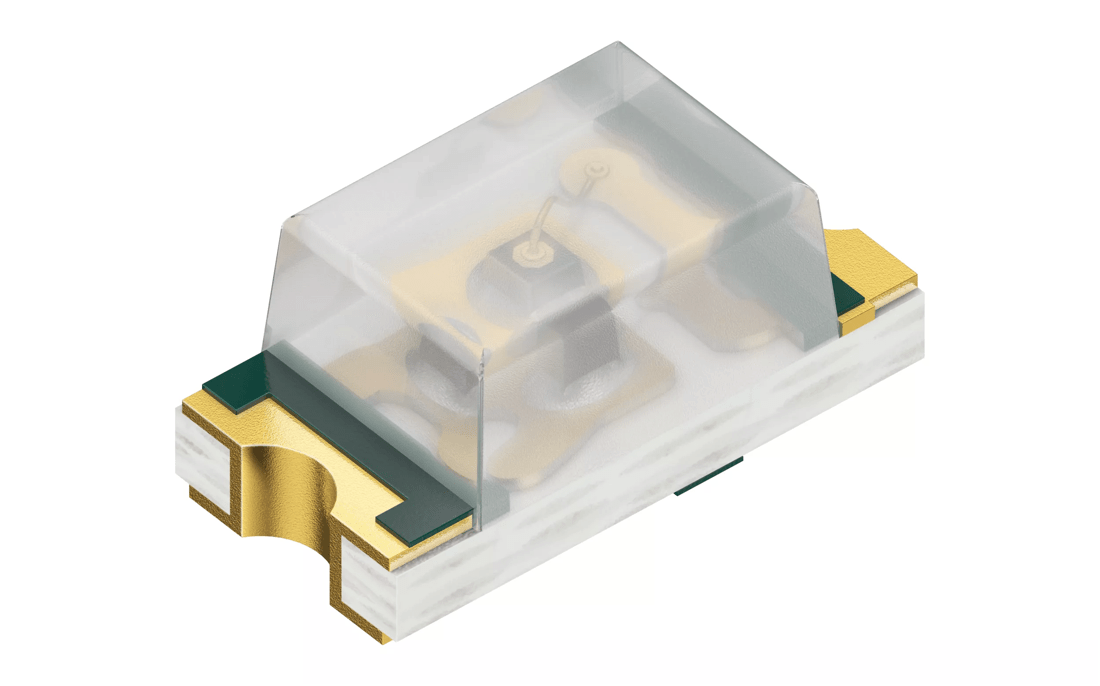

LG Q976.01 Chip LEDs 0603 Gen 2 Eco Versions · Images · TIF
