OSRAM Chip LED 0603, LR Q976.01

OSRAM Chip LED 0603, LR Q976.01
New
×
New

Description

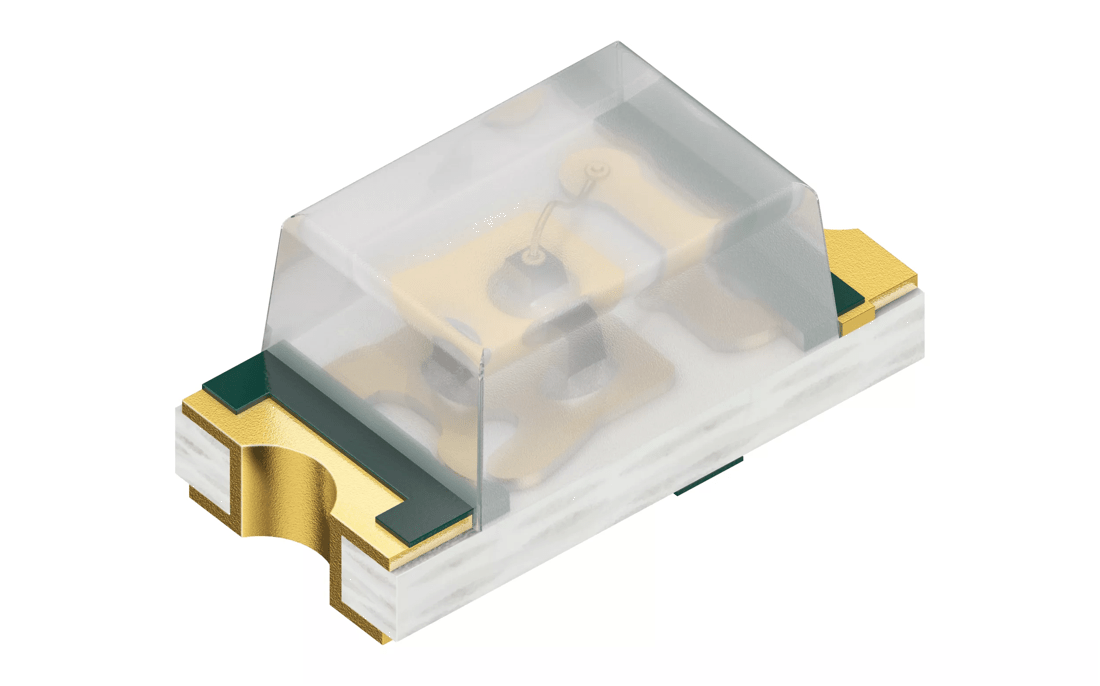

The Chip LED 0603 is the product of choice for status indication in electronics. The small package size allows compact designs within 7-segment displays and simple backlighting applications in dashboards and switches.
Datasheet
LR Q976.01
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
Electrical power
0.04 W
Low
Brightness
ΦV
0.482 lm
IV
0.118 cd
ΦE
2.29 mW
IE
0.56 mW/sr
Beam angle
∢
140 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
1.6 mm
w
0.8 mm
h
0.7 mm

Ordering codes

Product Type Description Order No. Availability
LR Q976.01-P2R2-1 Iv = 56.0 ... 180.0 mcd (IF = 20 mA) Q65113A5259
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
