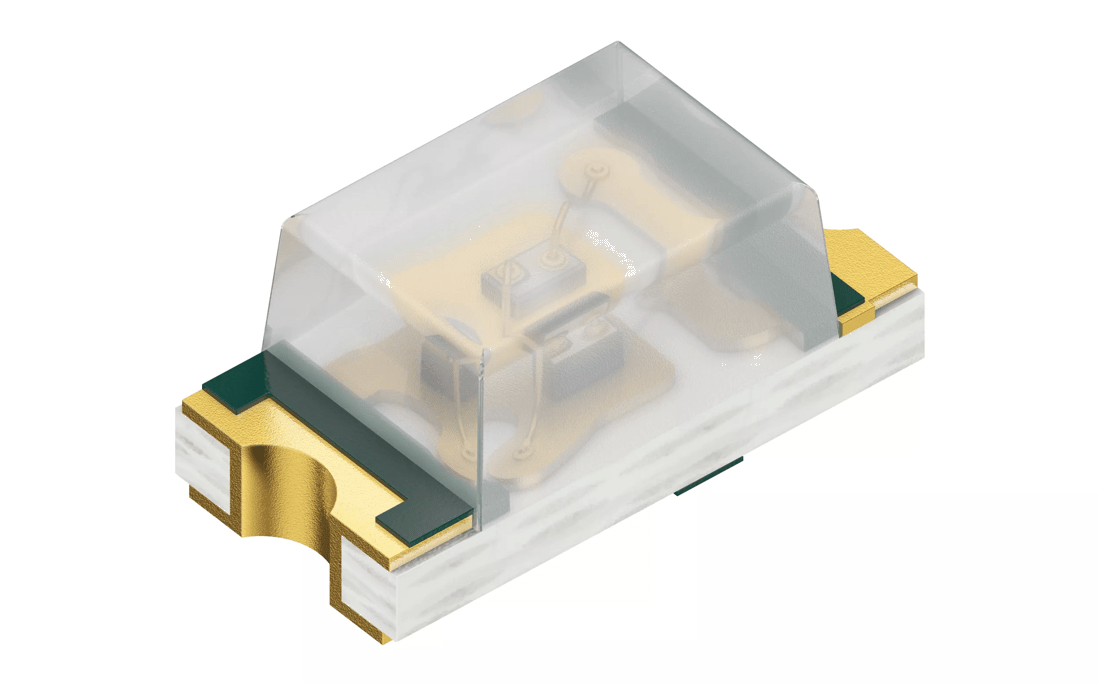

OSRAM Chip LED 0603, LT Q99G.01

×

Description

The Chip LED 0603 is the product of choice for status indication in electronics. The small package size allows compact designs within 7-segment displays and simple backlighting applications in dashboards and switches.

Details

Parameters

Color of emission
True Green (513-545 nm)
Electrical power
0.015 W
Low
Brightness
ΦV
1.16 lm
IV
0.248 cd
ΦE
2.41 mW
IE
0.515 mW/sr
Beam angle
140 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
1.6 mm
w
0.8 mm
h
0.7 mm

Ordering codes

Product Type Description Order No. Availability
LT Q99G.01-R2T1-25-1 Iv = 140 ... 355 mcd (IF = 5 mA) Q65113A5257
