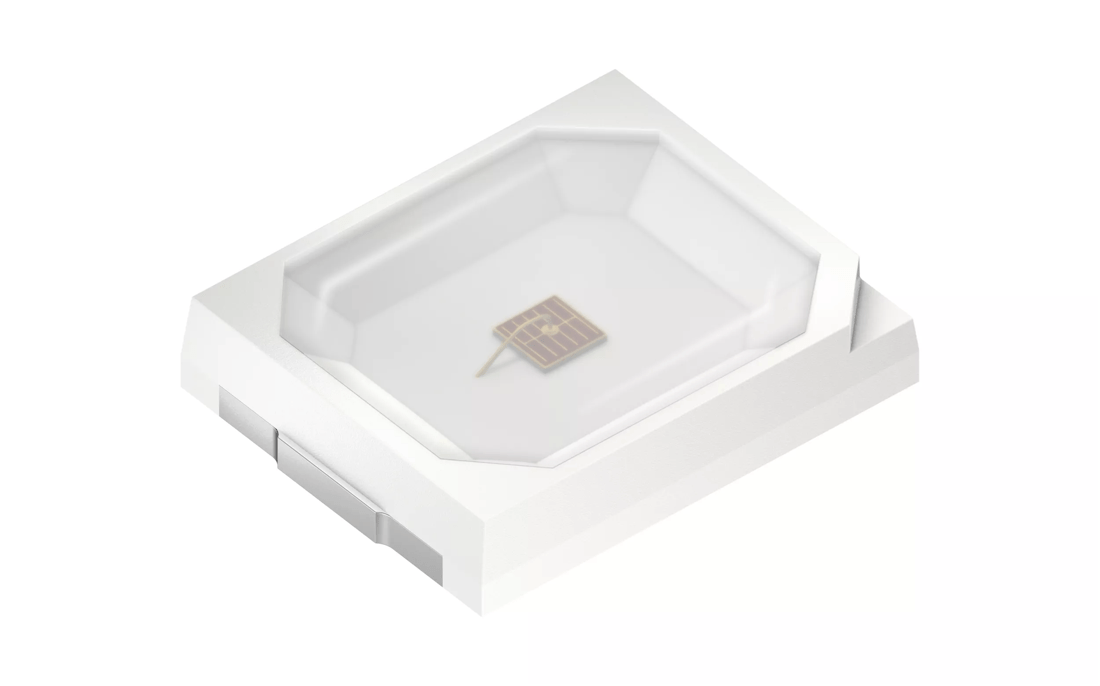

OSRAM DURIS™ E 2835, GA JTLPS1.23

×

Description

The DURIS™ E 2835 color family provide excellent color rendering and supreme efficacy in cost effective industry standard LED. DURIS™ E 2835 never fails to impress with its performance on system level.
Datasheet
GA JTLPS1.23
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Amber (609-624 nm)
Electrical power
0.35 W
Mid
Brightness
ΦV
34.5 lm
IV
11.1 cd
ΦE
158 mW
IE
50.9 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
100 °C
Dimension
l
3.5 mm
w
2.8 mm
h
0.7 mm

Ordering information

Product Type Description Ordering code Availability
GA JTLPS1.23-H2H7-23-1 ΦV = 30.00 ... 39.00 lm (IF = 150 mA) Q65113A5636 Full production

Downloads

Datasheets
GA JTLPS1.23 · Datasheet · PDF · en_US

Application note
Brilliant Mix and Mix-to-Match — Professional white for general lighting applications · Product related · PDF · en_US
Light quality — White light parameters · Product related · PDF · en_US
Light quality — Color metrics · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
Dimming InGaN LEDs · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
