Details
Parameters
Color of emission
True Green (513-545 nm)
Electrical power
0.44
W
Mid
Brightness
ΦV
80
lm
IV
25.8
cd
ΦE
166
mW
IE
53.4
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Dimension
l
3.5
mm
w
2.8
mm
h
0.7
mm
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| GT JTLPS1.13-KKLN-25-1 | ΦV = 64 ... 96 lm (IF = 150 mA) | Q65113A1047 |
Downloads
For other documents visit our
Download center
Datasheets
GT JTLPS1.13
Datasheet
Application note
Brilliant Mix and Mix-to-Match — Professional white for general lighting applications
Product related
Light quality — White light parameters
Product related
Light quality — Color metrics
Product related
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Details on photobiological safety of LED light sources
General information
Preventing LED failures caused by corrosive materials
General information
Importing rayfiles and ray-measurement files of LEDs
General information
Chemical compatibility of LEDs
General information
Handling of silicon resin LEDs
Handling recommendations
ESD protection while handling LEDs
Handling recommendations
Dry pack information
Handling recommendations
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Processing of SMD LEDs
Soldering and processing
Recommended pick-and-place tools of LEDs
Soldering and processing
Manual lead-free soldering of LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
Dimming InGaN LEDs
Electrical design
Comparison of simple LED circuits for low power LEDs
Electrical design
Determination of resistances for brightness compensation
Electrical design
LED driving technology for long term flexibility
Electrical design
The basic principles of Electrical Overstress (EOS)
Electrical design
Resources
CAD Data
CAD Data
Electrical Simulation
Electrical Simulation
Optical Simulation
Optical Simulation
Images

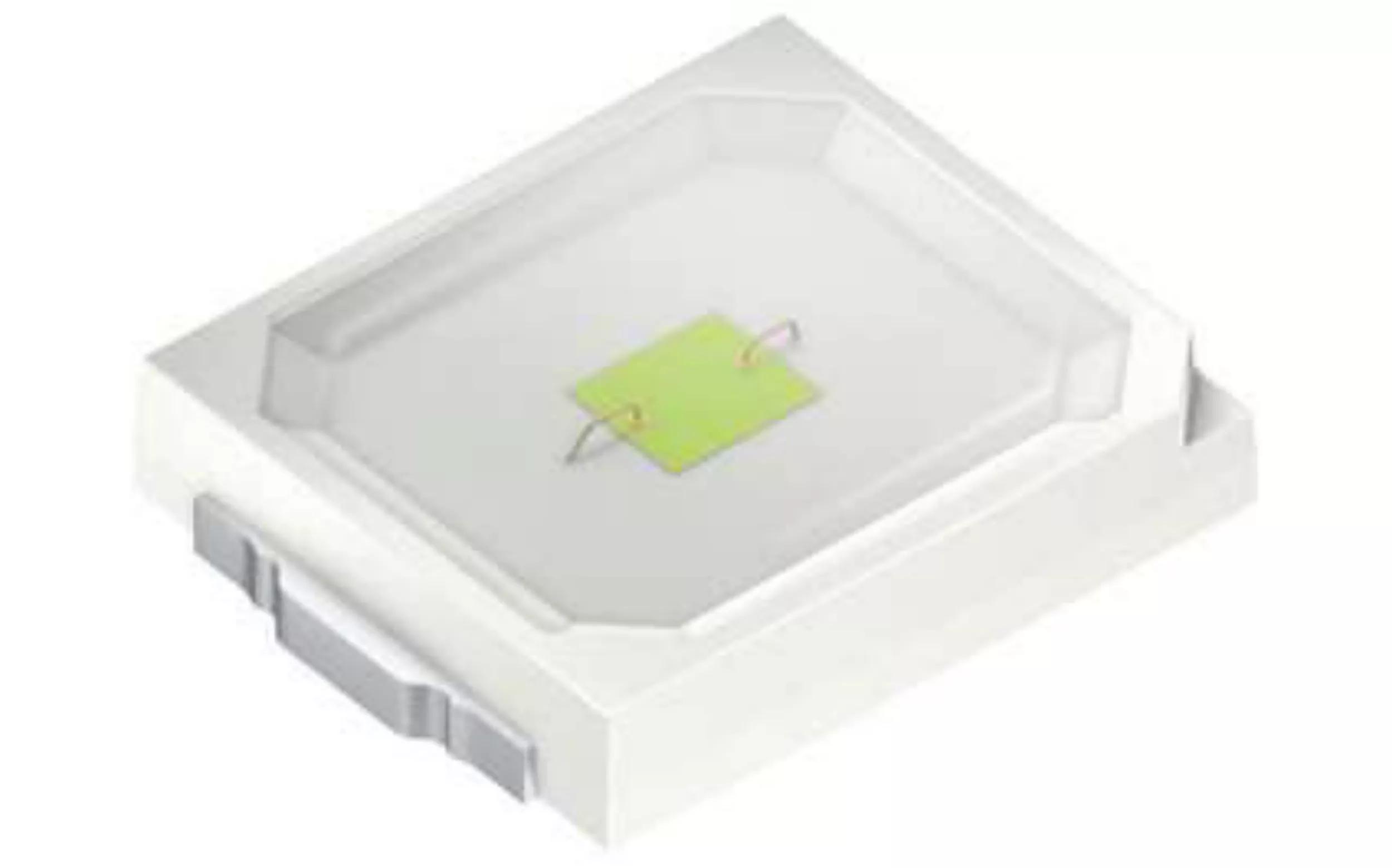

GT_JTLPS1-13_36x22.4mm_cmyk
