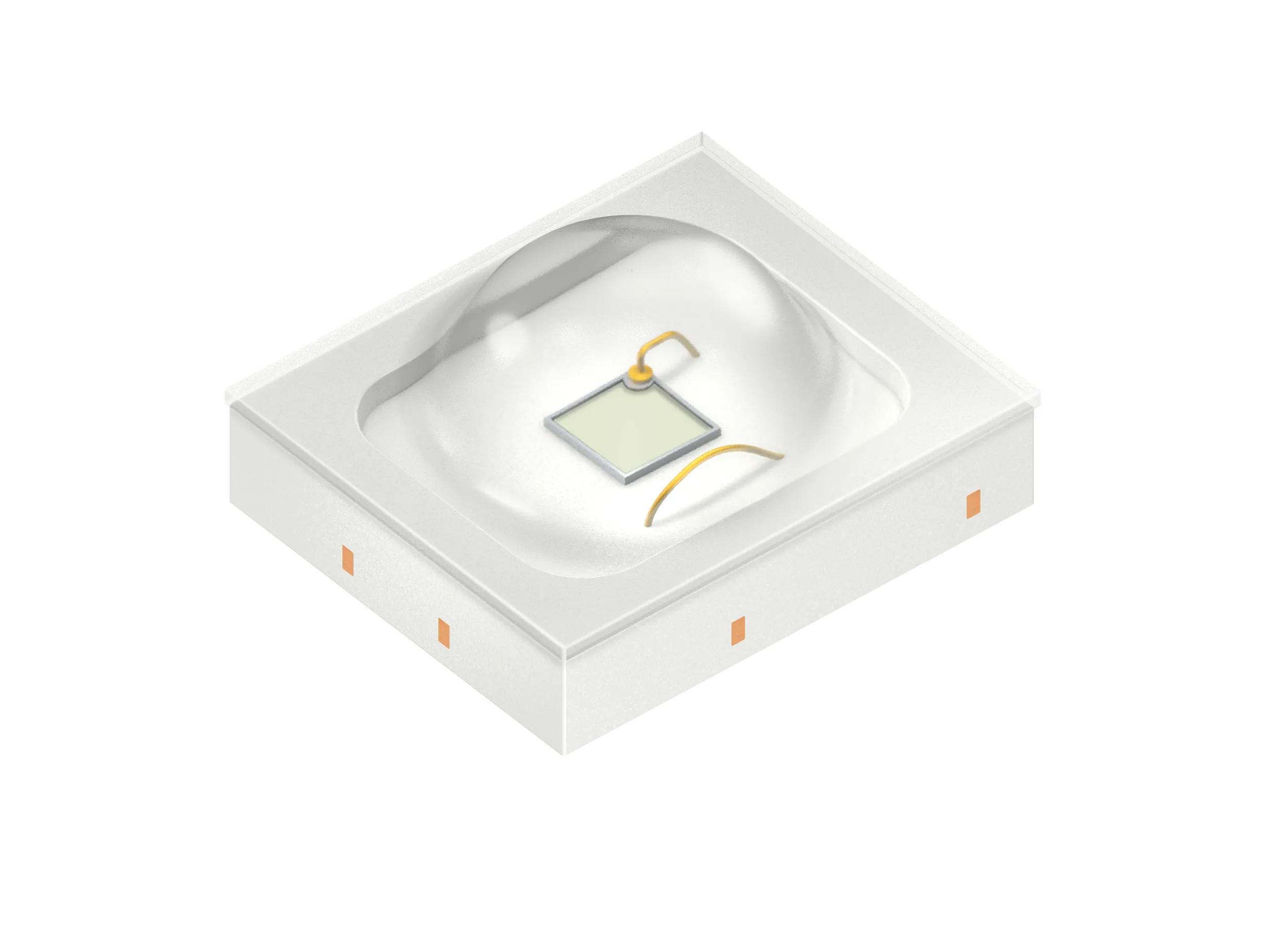

OSRAM DURISĀ® P, GT DASPA1.13

OSRAM DURISĀ® P, GT DASPA1.13
Discontinued
Ɨ
Discontinued

Description

High-efficacy mid-power LED with long lifetimes also at high currents and high junction temperatures.
Datasheet
GT DASPA1.13
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
True Green (513-545 nm)
Electrical power
0.33 W
Mid
Brightness
Ī¦V
26 lm
IV
7.75 cd
Ī¦E
54.7 mW
IE
16.3 mW/sr
Beam angle
āˆ¢
120 Ā°
Operating temperature
Top min.
-40 Ā°C
Top max.
120 Ā°C
Dimension
l
2.65 mm
w
2.25 mm
h
1.31 mm

Application fields

Lighting Indoor lighting

Ordering codes

Product Type Description Order No. Availability
GT DASPA1.13-GSGU-26-1 Ī¦V = 22 ... 28 lm (IF = 100 mA) Q65111A4405
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GT DASPA1.13-GRGT-26-1 Ī¦V = 21 ... 26 lm (IF = 100 mA) Q65111A4406
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
