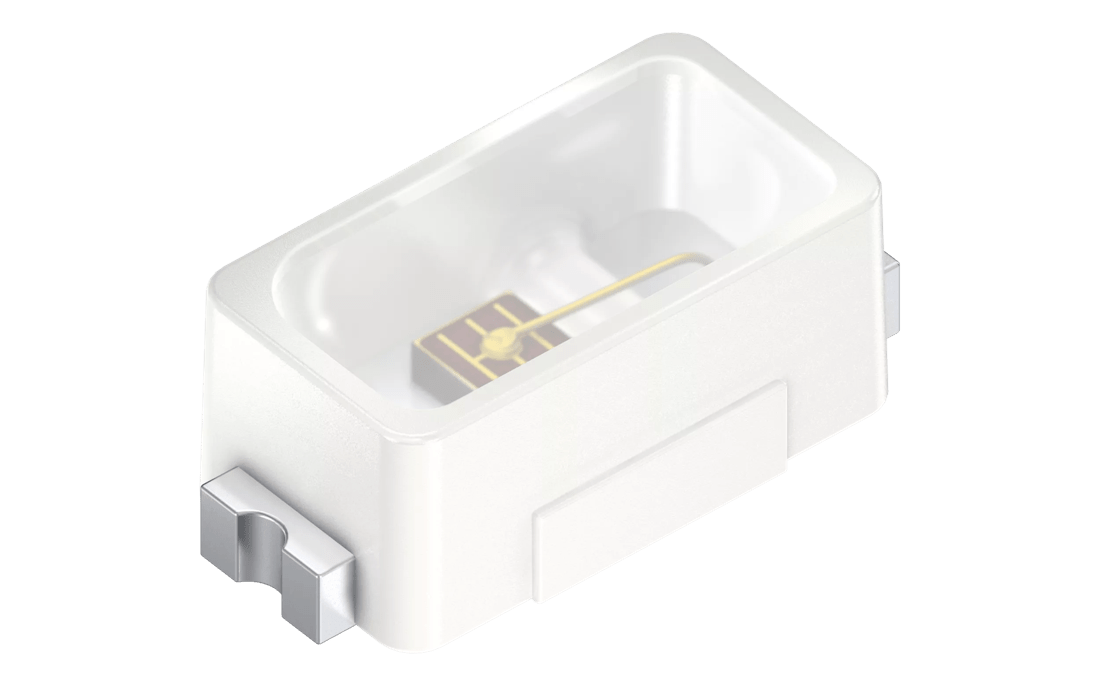

OSRAM FIREFLY® E1608, CH DELSS1.22

×

Description

The FIREFLY E1608 family expands ams OSRAM's portfolio of visible products for use in mobile devices like fitness tracking or health monitoring. It offers one of the smallest LED footprints in a highly reliable and proven package. The compact size of only 0.8 mm x 1.6 mm x 0.6 mm allows customers the benefit of more flexible product designs. The hyper red CH DELSS1.22 is specially designed for SPO2 applications. It features a special narrow wavelength of 655 nm to improve signal detection, that is ideally matched to these applications.

Details

Parameters

Color of emission
Hyper Red (635-666 nm)
Electrical power
0.038 W
Low
Brightness
ΦV
0.928 lm
IV
0.282 cd
ΦE
16.3 mW
IE
4.95 mW/sr
Beam angle
120 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
1.6 mm
w
0.8 mm
h
0.6 mm

Ordering codes

Product Type Description Order No. Availability
CH DELSS1.22-N1P2-35 Ie = 2.80 ... 7.10 mW/sr, (Φe=4.90 mW typ.) (IF = 20 mA) Q65113A4318
