OSRAM Golden DRAGON™ Plus, LT W5AM

Discontinued
×
Discontinued

Description

This Golden DRAGON™ family member allows the design of small size high brightness light sources, while meeting highest lifetime requirements.
Datasheet
LT W5AM
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
True Green (513-545 nm)
Electrical power
1.2 W
High
Brightness
ΦV
116 lm
Beam angle
∢
170 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
11.0 mm
w
6.0 mm
h
2.8 mm

Ordering information

Product Type Description Ordering code Availability
LT W5AM-KYKZ-35-Z = 82.00 ... 112.00 lm (IF = 350 mA) Q65110A9877 Discontinued
LT W5AM-KZLY-36 = 97.00 ... 150.00 lm (IF = 350 mA) Q65111A3585 Discontinued

Downloads

Datasheets
LT W5AM · Datasheet · PDF · en_US

Application note
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
Dimming InGaN LEDs · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

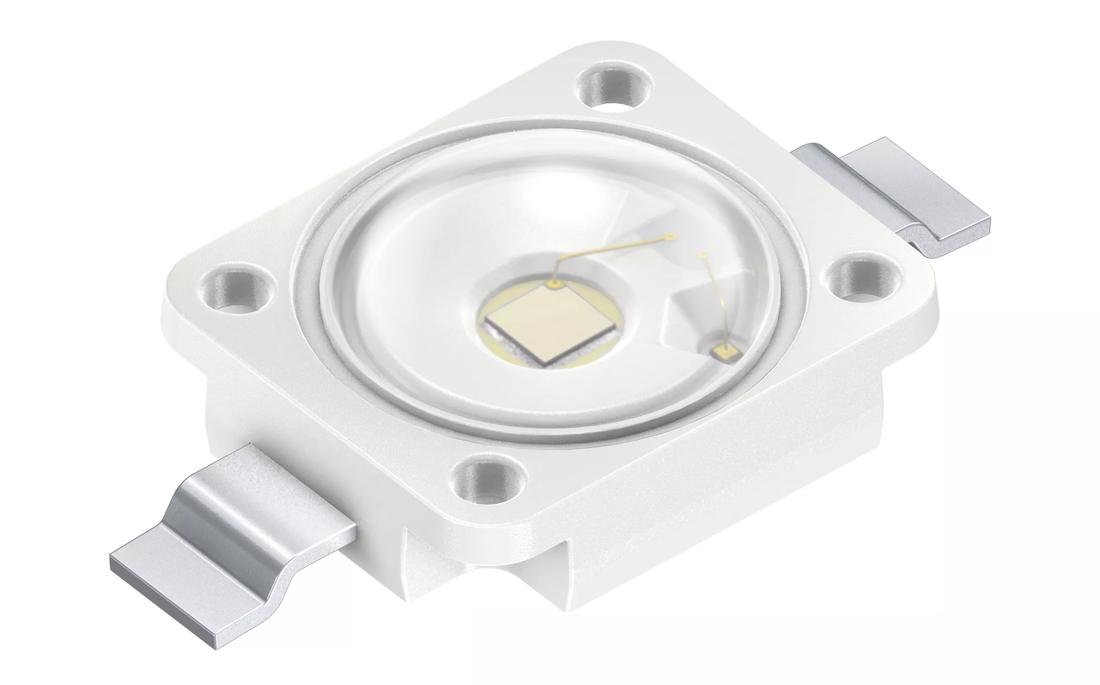

Golden DRAGON plus Lx W5AM · Images · TIF
