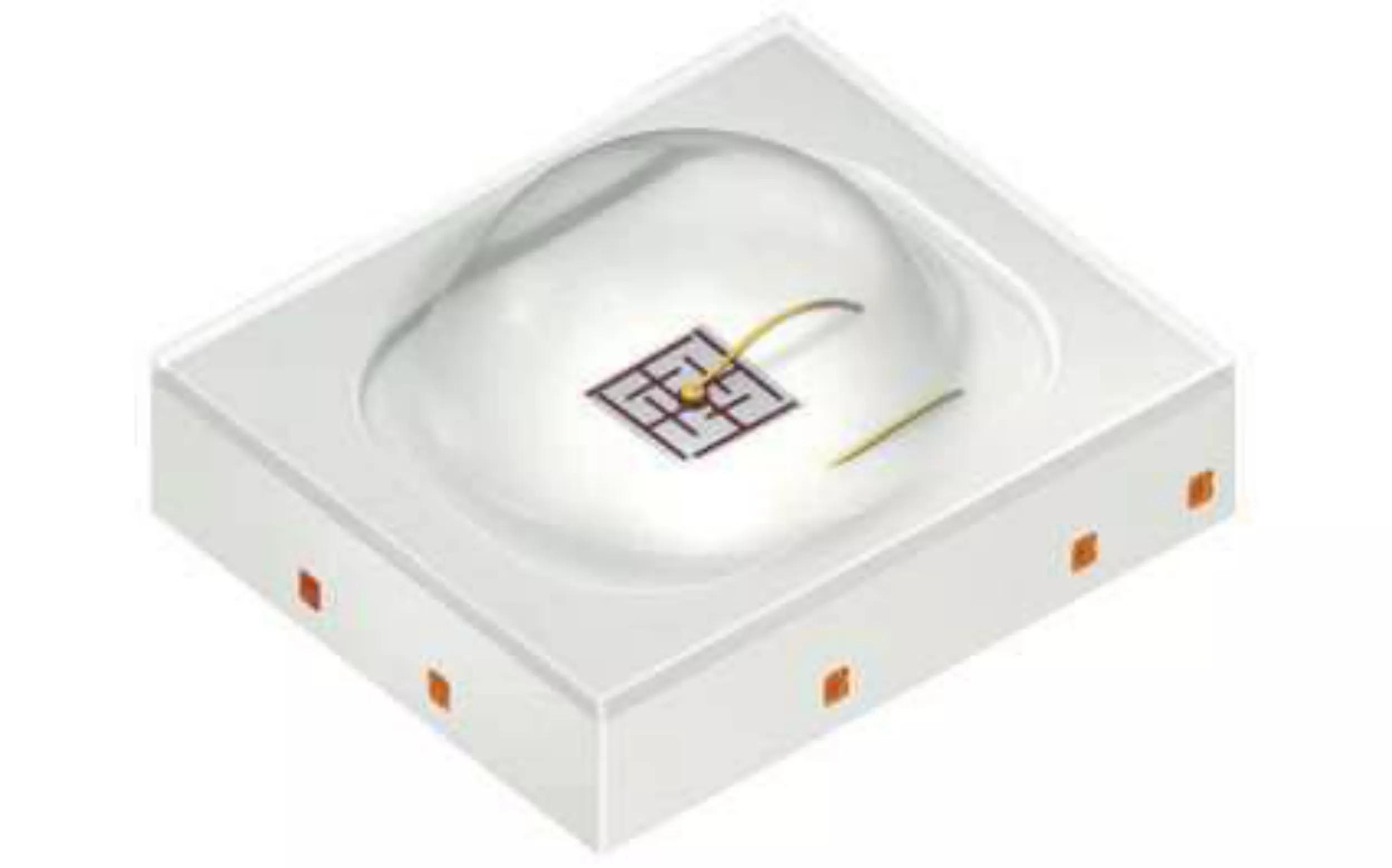

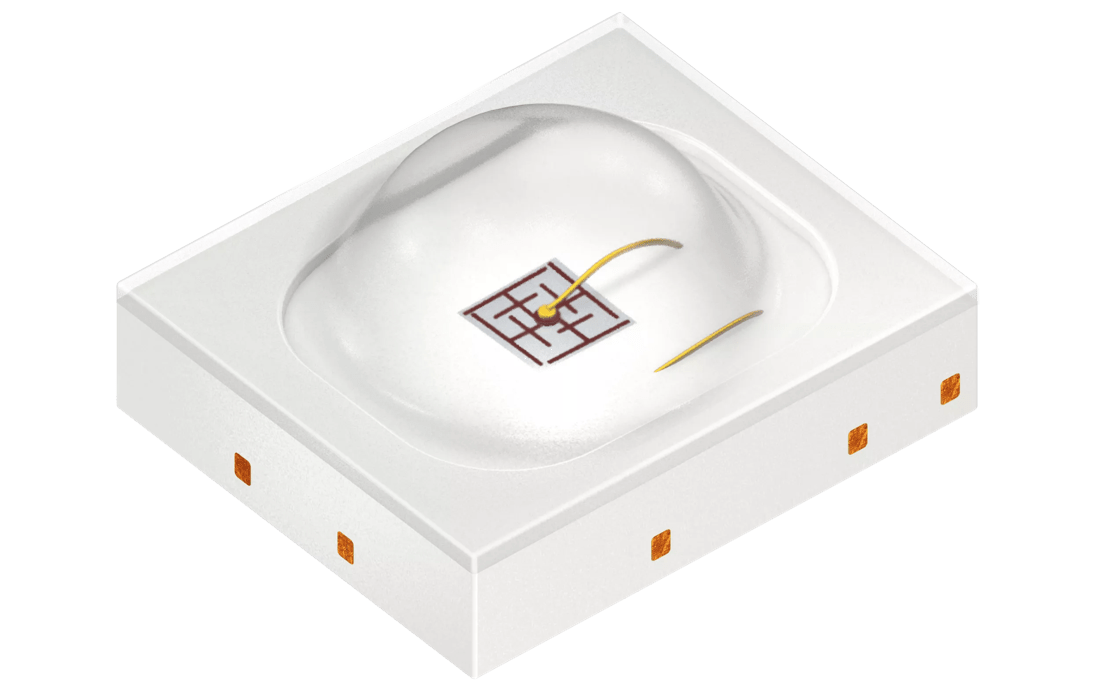

OSRAM OSCONIQ™ P 2226, GF DASPA2.24

Discontinued
×
Discontinued

Description

High-efficacy mid-power LED with long lifetimes also at high currents and high junction temperatures.
Datasheet
GF DASPA2.24
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Far Red (720-740 nm)
Electrical power
0.18 W
Mid
Brightness
ΦV
0.103 lm
IV
0.0312 cd
ΦE
66 mW
IE
20 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
120 °C
Dimension
l
2.6 mm
w
2.2 mm
h
1.25 mm

Ordering information

Product Type Description Ordering code Availability
GF DASPA2.24-PNQJ-1-1 ΦE = 61 ... 76 mW (IF = 100 mA) Q65112A7463 Discontinued
