OSRAM OSCONIQ® P 2226, GY DASPA2.23

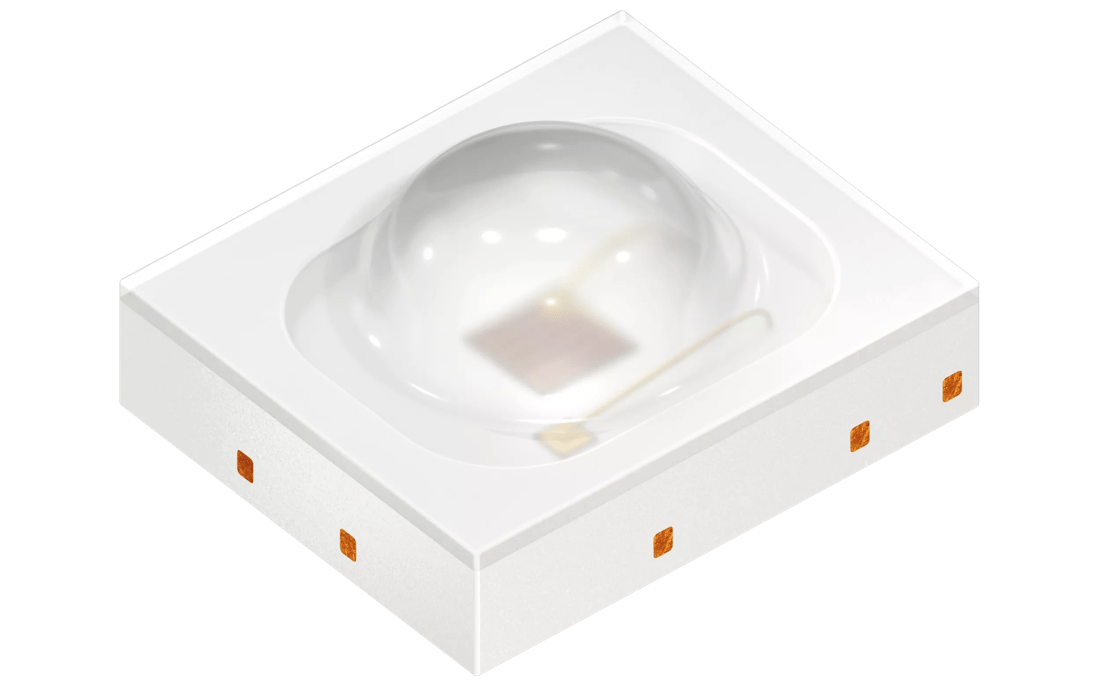

Name: OSRAM OSCONIQ® P 2226, GY DASPA2.23
Brand: ams-OSRAM AG

Product features

High-efficacy mid-power LED with long lifetimes also at high currents and high junction temperatures.

Datasheet Choose product

Application note Optical simulation CAD files Tools Contact us Support

Downloads

Datasheet

GY DASPA2.23

Datasheet / 1.0 MB

Application note

Brilliant Mix and Mix-to-Match — Professional white for general lighting applications

Product Related / 1.7 MB

Light quality — Color metrics

Product Related / 1.6 MB

Light quality — White light parameters

Product Related / 2.0 MB

Chemical compatibility of LEDs

General Information / 2.0 MB

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General Information / 1.7 MB

Details on photobiological safety of LED light sources

General Information / 1.4 MB

Dry pack information

General Information / 1.2 MB

Importing rayfiles and ray-measurement files of LEDs

General Information / 903.2 KB

LED 可靠性与使用寿命

General Information / 1.7 MB

Lebensdauer und Zuverlässigkeit von LEDs

General Information / 1.9 MB

Preventing LED failures caused by corrosive materials

General Information / 1.2 MB

Reliability and lifetime of LEDs

General Information / 1.9 MB

ESD protection while handling LEDs

Processing and Handling / 1.8 MB

Further details on lead free reflow soldering of LEDs

Processing and Handling / 1.4 MB

LED 无铅回流焊的详细介绍

Processing and Handling / 1.7 MB

Manual lead-free soldering of LEDs

Processing and Handling / 1.9 MB

Weitere Hinweise zum bleifrei Reflow-Löten von LEDs

Processing and Handling / 1.4 MB

Comparison of simple LED circuits for low power LEDs

Driving of LEDs / 1.2 MB

Determination of resistances for brightness compensation

Driving of LEDs / 873.5 KB

LED driving technology for long term flexibility

Driving of LEDs / 1.1 MB

The basic principles of Electrical Overstress (EOS)

Driving of LEDs / 1.6 MB

Measurement, calibration and measurement uncertainty of LEDs

Measurement / 2.5 MB

欧司朗光电半导体有限公司 LED 的测量、

Measurement / 2.4 MB

Optical simulation

Optical Simulation

Optical simulation

Download

CAD files

CAD Data

CAD files

Download

Ordering codes

Product Type	Description	Order No.	Availability
GY DASPA2.23-FUGR-35-FH	Φ_V = 16 ... 22 lm (I_F = 100 mA)	Q65112A6653	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product	Order now
GY DASPA2.23-FSFU-35-FH	Φ_V = 14 ... 18 lm (I_F = 100 mA)	Q65112A3462	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product	Order now
