OSRAM OSCONIQ™ P 3737 (2W), GD PUSRA2.15

×

Description

Brand new, upgraded high-power LED with our ams OSRAM’s latest chip technology and new generation of optimized lens, delivering industry leading performance, superior robustness and long lifetime. With high efficiency REDS available in three wavelengths, the family offers five colors for ease of design and high flexibility for all your horticulture spectrum needs.
Datasheet
GD PUSRA2.15
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Deep Blue (439-461 nm)
Electrical power
2.0 W
High
Brightness
ΦV
39.3 lm
IV
11.9 cd
ΦE
1480 mW
IE
446 mW/sr
ΦP
5.5 µmol/s
Beam angle
∢
125 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
3.7 mm
w
3.7 mm
h
2.37 mm

Ordering information

Product Type Description Ordering code Availability
GD PUSRA2.15-T2T4-24-1 Φ<_sub>P = 5.30 ... 5.90 μmol/s (IF = 700 mA) Q65115A0348 Full production

Downloads

Datasheets
GD PUSRA2.15 · Datasheet · PDF · en_US

Application note
Brilliant Mix and Mix-to-Match — Professional white for general lighting applications · Product related · PDF · en_US
High power OSCONIQ™ P — Details on properties, handling and processing · Product related · PDF · en_US
Light quality — White light parameters · Product related · PDF · en_US
Light quality — Color metrics · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
Dimming InGaN LEDs · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

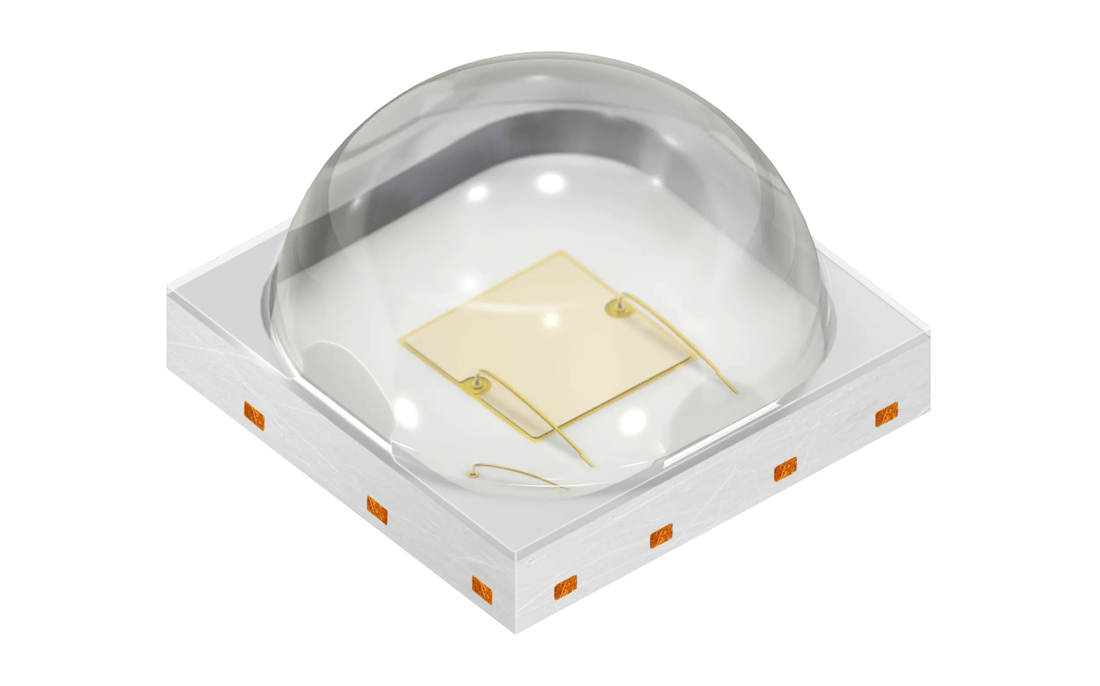

GD PUSRA2-15 OSOCONIQ P 3737 42x26mm cmyk · Images · TIF

Product selector

Find the right product.
Product selector

More OSCONIQ™ P 3737 (2w)

Designed for reliable performance in harsh greenhouse environments, the OSCONIQ™ P 3737 Gen 2 resists high humidity, sulphur exposure from fertilizers, and temperature fluctuations. Built on the latest ams OSRAM chip technology, this high-power LED delivers industry-leading efficiency, exceptional robustness, and a long operational lifetime, ensuring consistent results and reduced maintenance costs.
Explore more OSCONIQ™ P 3737 (2w)
