Details
Parameters
Color of emission
Hyper Red (635-666 nm)
Electrical power
1.3
W
High
Brightness
ΦV
29.1
lm
IV
8.64
cd
ΦE
1070
mW
IE
317
mW/sr
ΦP
6
µmol/s
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
125
°C
Dimension
l
3.7
mm
w
3.7
mm
h
2.37
mm
Application fields
Ordering information
| Product Type | Description | Ordering code | Availability |
|---|---|---|---|
| GH PUSRA2.25-T4U1-1-1 | Φ<_sub>P = 5.70 ... 6.30 μmol/s (IF = 700 mA) | Q65115A0384 | Discontinued |
| GH PUSRA2.25-T5U1-1-1-G3 | Φ<_sub>P = 5.90 ... 6.30 μmol/s (IF = 700 mA) | Q65115A2820 | Full production |
Downloads
Datasheets
Application note
Resources
Images
Product selector
Find the right product.

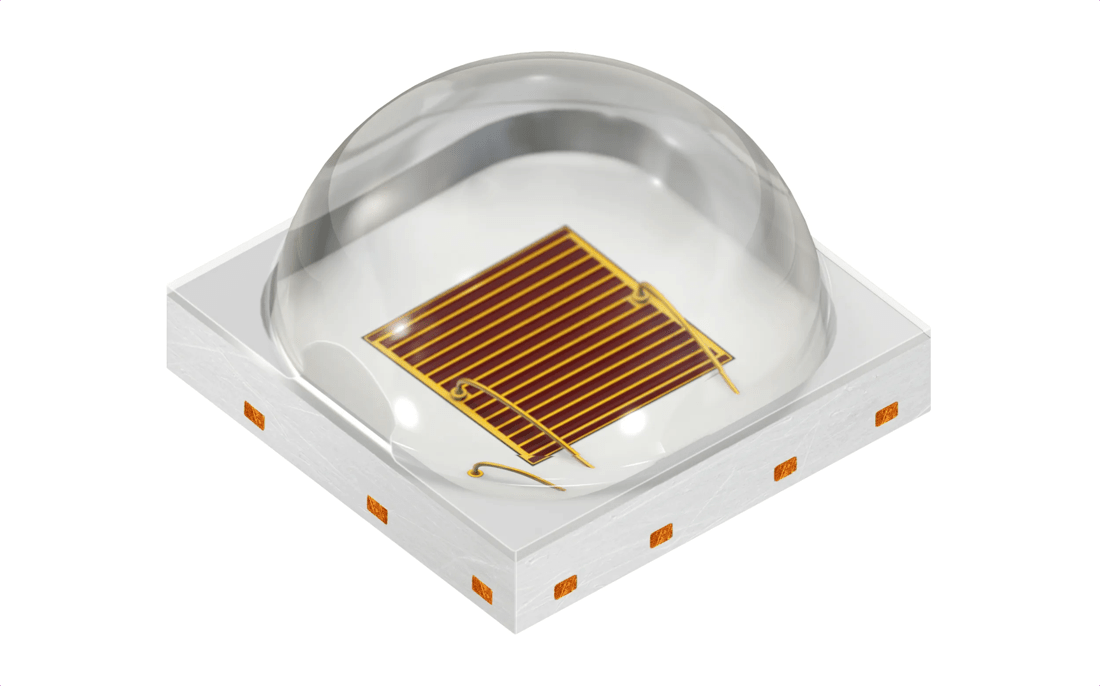

More OSCONIQ™ P 3737 (2w)
Designed for reliable performance in harsh greenhouse environments, the OSCONIQ™ P 3737 Gen 2 resists high humidity, sulphur exposure from fertilizers, and temperature fluctuations.
Built on the latest ams OSRAM chip technology, this high-power LED delivers industry-leading efficiency, exceptional robustness, and a long operational lifetime, ensuring consistent results and reduced maintenance costs.
