OSRAM OSLON™ Black Flat, LCY H9PP

×

Description

OSLON Black Flat is a new small size high-flux LED for slim designs. The black package stands for high stability.
Datasheet
LCY H9PP
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Yellow (580-595 nm)
Electrical power
1.0 W
High
Brightness
ΦV
73 lm
IV
24.3 cd
ΦE
260 mW
IE
86.3 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
3.75 mm
w
3.75 mm
h
0.7 mm
Device qualification
AEC-Q102

Ordering information

Product Type Description Ordering code Availability
LCY H9PP-7J6K-5F5G-1 ΦV = 56 ... 90 lm (IF = 350 mA) Q65111A4118 Full production

Downloads

Datasheets
LCY H9PP · Datasheet · PDF · en_US

Application note
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Preventing LED failures caused by corrosive materials · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
The thermal measurement point of LEDs · Thermal management · PDF · en_US
Behaviour of InGaN LEDs in parallel circuits · Electrical design · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming InGaN LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
LED diagnosis in automotive applications · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

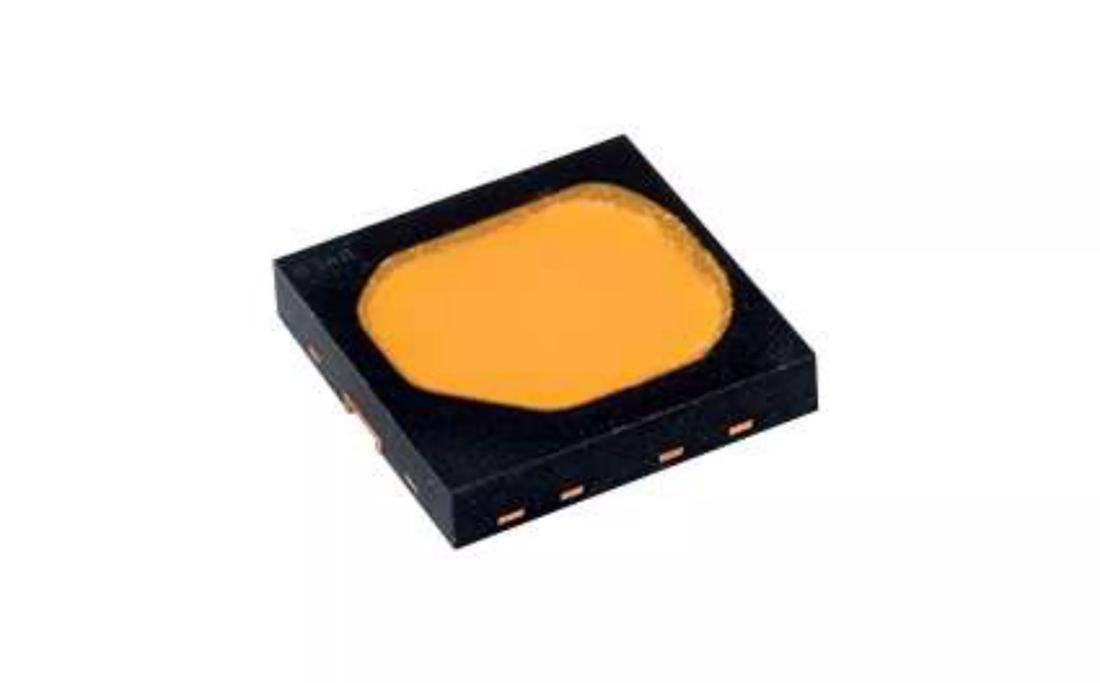

LCY H9PP 510 · Images · EPS
