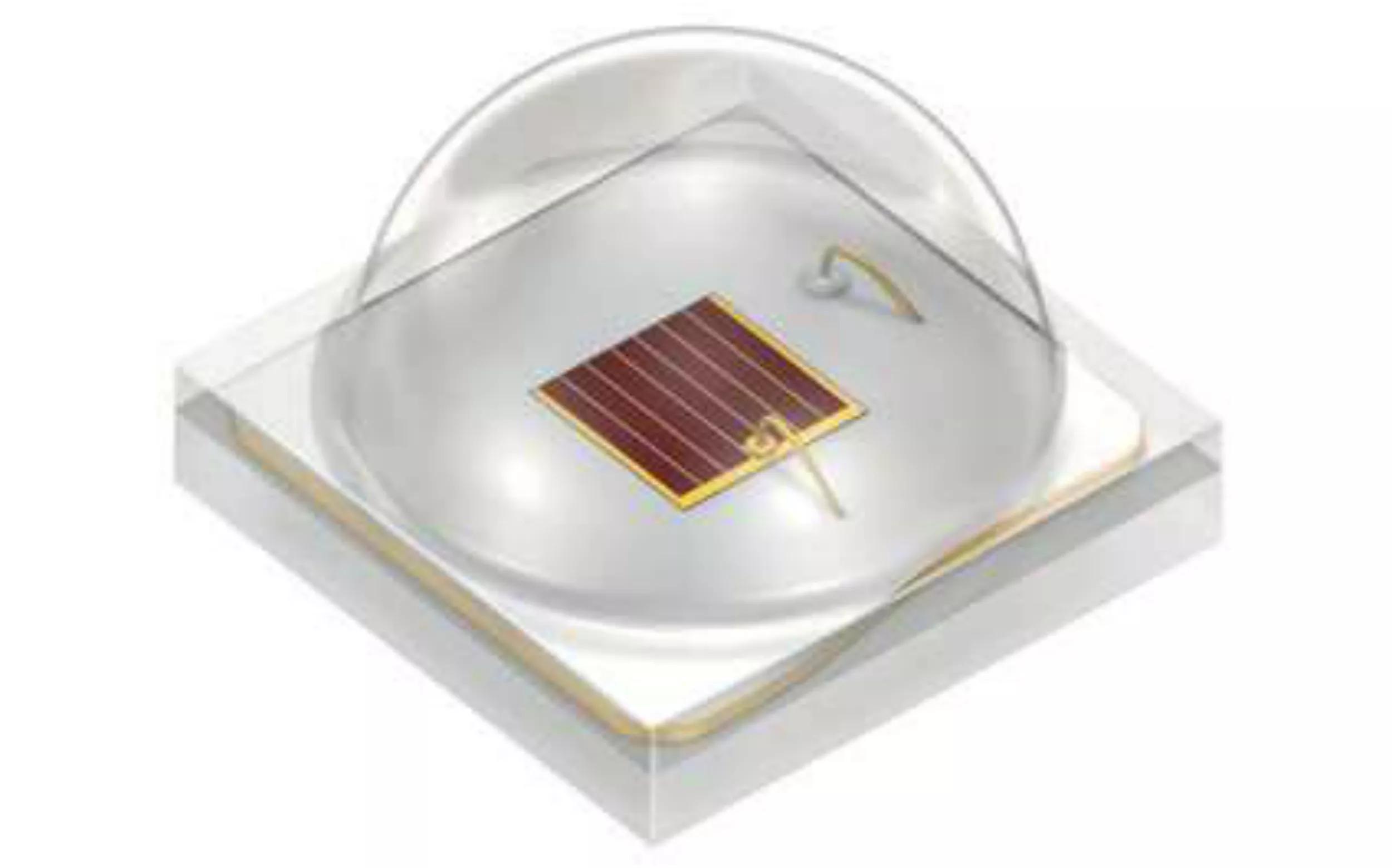

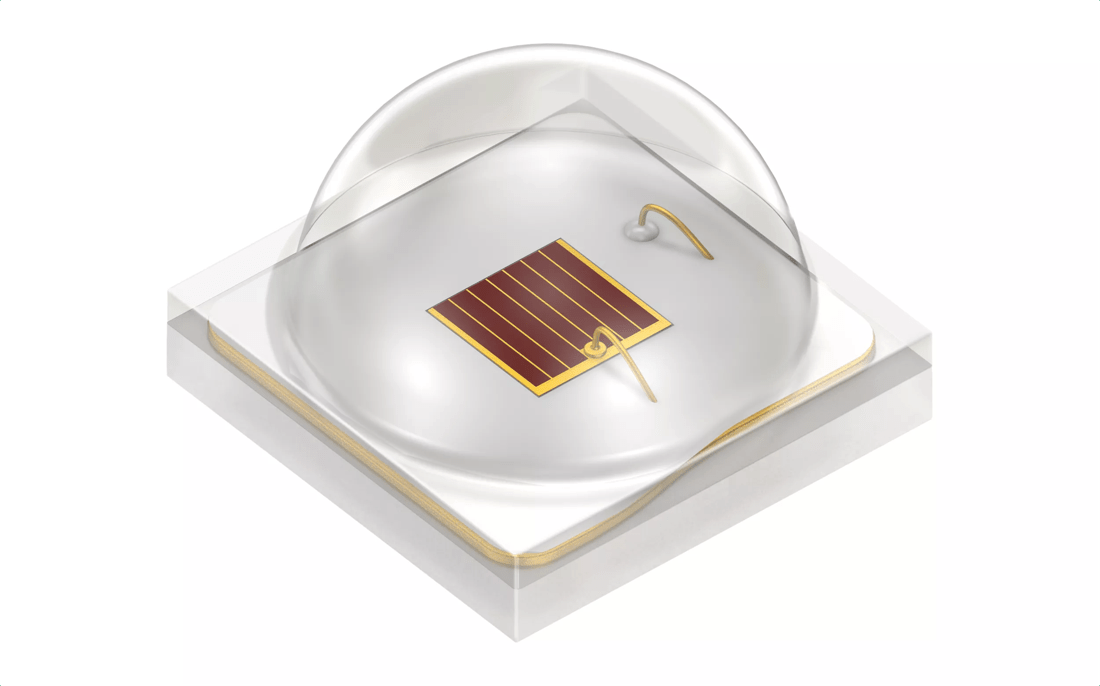

OSRAM OSLON™ Optimal, GR CSSRML.24

×

Description

A brand new family of LEDs with our ams OSRAM’s latest chip technology, delivering significant performance upgrades. The OSLON™ Optimal strikes a perfect balance of performance and cost along with proven robustness, high reliability and long lifetime.
Datasheet
GR CSSRML.24
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Super Red (627-639 nm)
Electrical power
0.73 W
High
Brightness
ΦV
70 lm
IV
22.3 cd
ΦE
490 mW
IE
156 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
3.0 mm
w
3.0 mm
h
2.12 mm

Ordering information

Product Type Description Ordering code Availability
GR CSSRML.24-TOUL-47-1 ΦE = 415 ... 565 mW (IF = 350 mA) Q65113A5762 Full production
GR CSSRML.24-UJUL-57-1 ΦE = 450 ... 565 mW (IF = 350 mA) Q65113A5994 Full production

Downloads

Datasheets
GR CSSRML.24 · Datasheet · PDF · en_US

Application note
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
