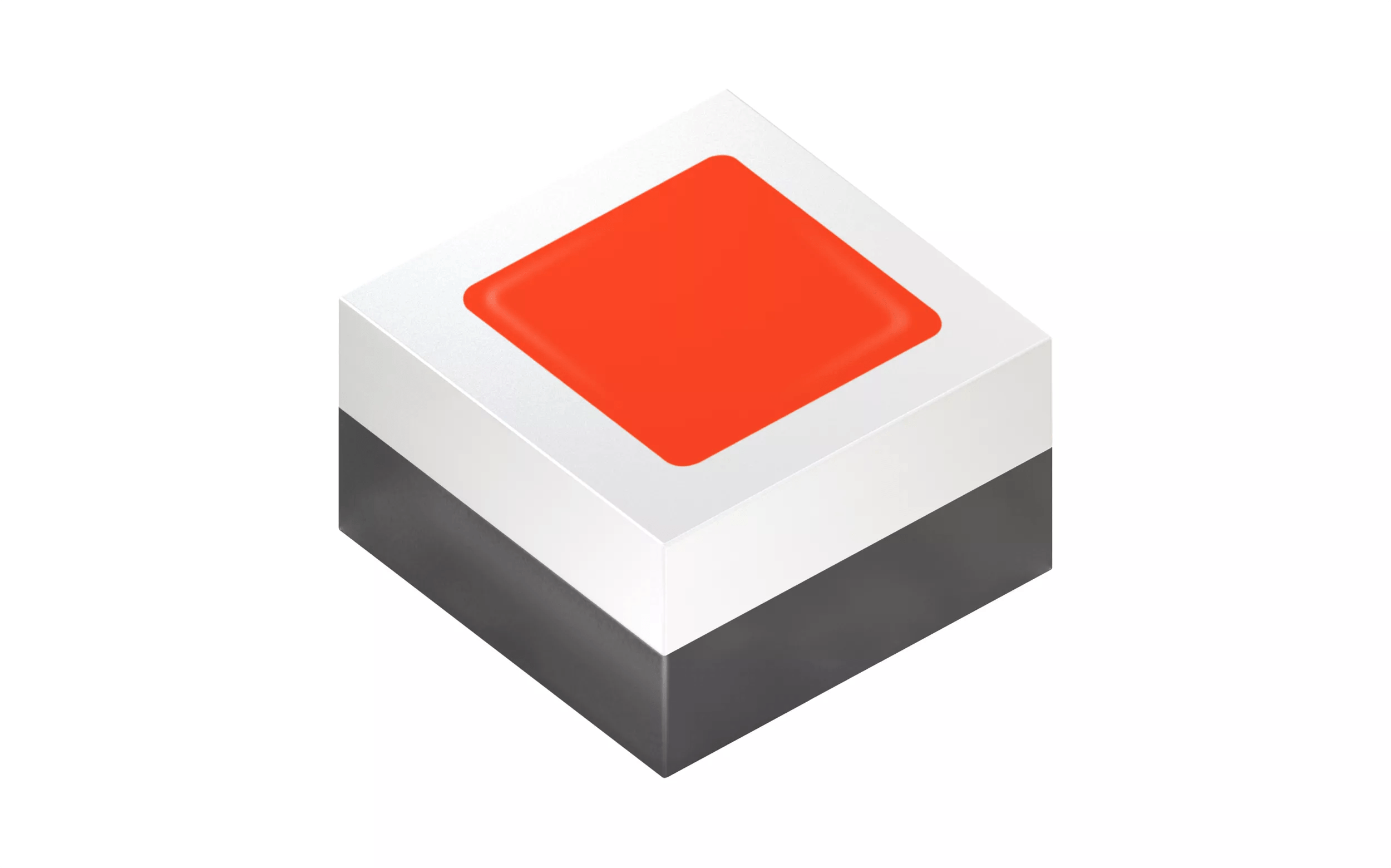

OSRAM OSLON® Pure 1414, GR VJLPL1.F3

Description

The OSLON Pure® 1414, one of the best lumen density, excellent efficiency and color homogeneity. The OSLON Pure® 1414 come with full color spectrum and color temperature of 1800K to 6500K that enable customer to perform color tuning and tight clustering. It can be use stand alone as well as in cluster together to achieve the spectrum that you need.

Datasheet

Select & order

Details

Parameters

Color of emission

Red (612-630 nm)

Electrical power

1.0 W

High

Brightness

Φ_V

40 lm

I_V

13.3 cd

Φ_E

253 mW

I_E

83.9 mW/sr

Beam angle

∢

120 °

Operating temperature

T_op min.

-40 °C

T_op max.

100 °C

Dimension

1.4 mm

0.85 mm

Application fields

Industrial Robotics Projection & display Factory automation Appliances & tools

Medical & health Medical lighting

Lighting Indoor lighting Entertainment Outdoor & industrial lighting

Ordering codes

Product Type	Description	Order No.	Availability
GR VJLPL1.F3-HSHU-R2R3-1	Φ_V = 35.9 ... 45.0 lm (I_F = 350 mA)	Q65113A7185	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Mouser Buy now
