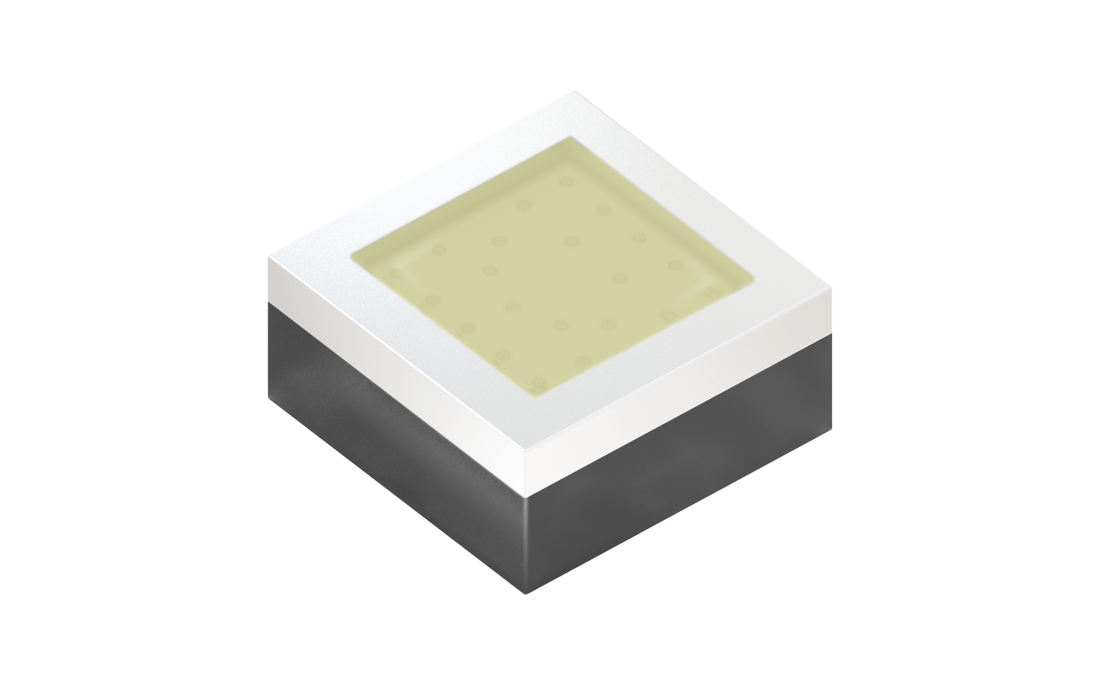

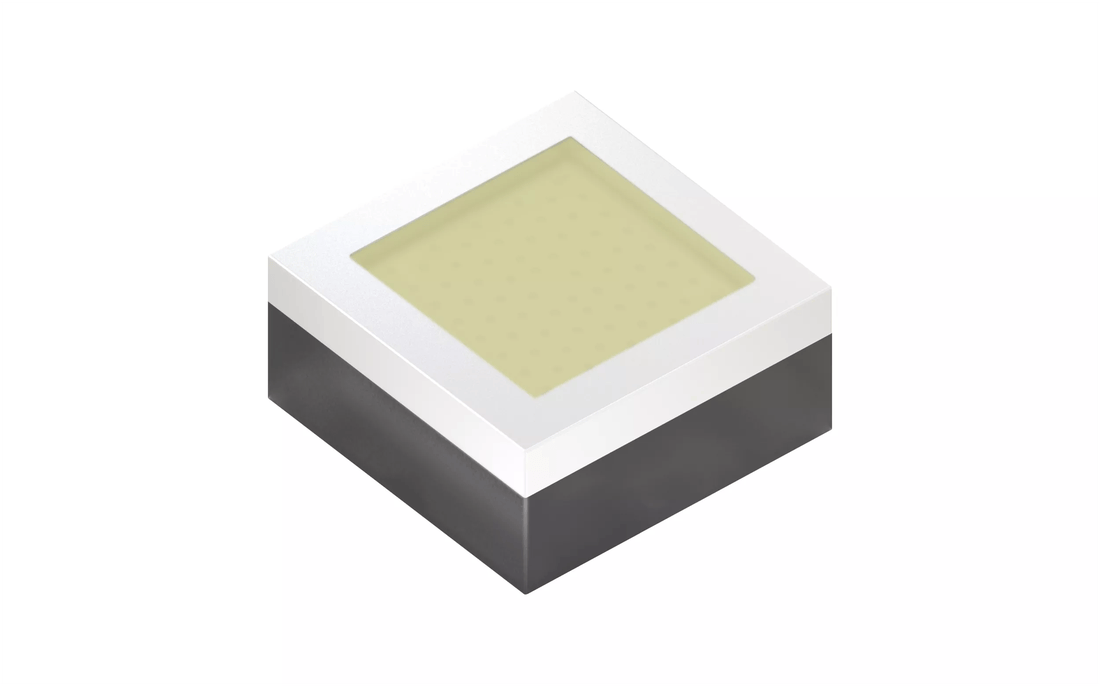

OSRAM OSLON™ Pure 1414, GT VJLPL1.13

×

Description

The OSLON Pure™ 1414, one of the best lumen density, excellent efficiency and color homogeneity. The OSLON Pure™ 1414 come with full color spectrum and color temperature of 1800K to 6500K that enable customer to perform color tuning and tight clustering. It can be use stand alone as well as in cluster together to achieve the spectrum that you need.
Datasheet
GT VJLPL1.13
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
True Green (513-545 nm)
Electrical power
0.93 W
High
Brightness
ΦV
121 lm
IV
41.3 cd
ΦE
252 mW
IE
86 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
100 °C
Dimension
l
1.4 mm
w
1.4 mm
h
0.75 mm

Ordering information

Product Type Description Ordering code Availability
GT VJLPL1.13-LPLS-T3T4-1 ΦV = 112.0 ... 150.0 lm (IF = 350 mA) Q65113A7111 Full production
GT VJLPL1.13-LRLU-T3T4-1 ΦV = 130.0 ... 180.0 lm (IF = 350 mA) Q65115A2206 Full production
