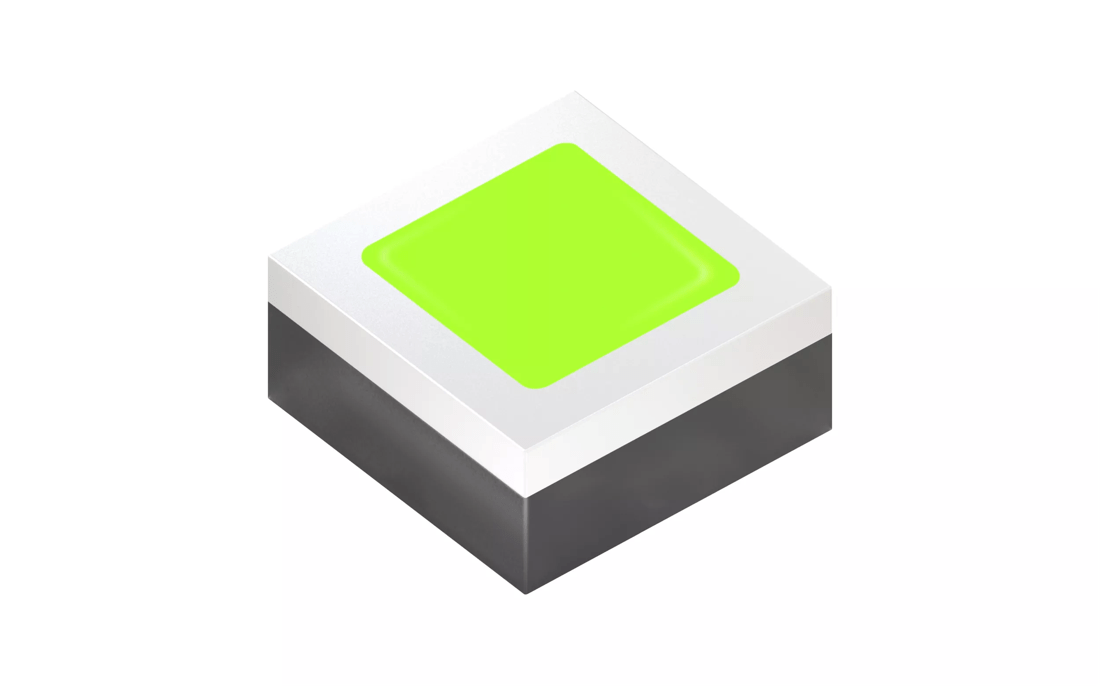

OSRAM OSLON® Pure 1414, GW VJLPL1.WB

OSRAM OSLON® Pure 1414, GW VJLPL1.WB
New
×
New

Description

The OSLON Pure® 1414, one of the best lumen density, excellent efficiency and color homogeneity. The OSLON Pure® 1414 come with full color spectrum and color temperature of 1800K to 6500K that enable customer to perform color tuning and tight clustering. It can be use stand alone as well as in cluster together to achieve the spectrum that you need.
Datasheet
GW VJLPL1.WB
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Green (565-575 nm)
Electrical power
1 W
High
Brightness
ΦV
179 lm
IV
59.8 cd
ΦE
397 mW
IE
133 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
100 °C
Dimension
l
1.4 mm
w
1.4 mm
h
0.75 mm

Ordering codes

Product Type Description Order No. Availability
GW VJLPL1.WB-LUMQ-M1M2-1 ΦV = 164.0 ... 210.0 lm (IF = 350 mA) Q65113A8121
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
