OSRAM OSLON® Signal, LJ CRBP.01

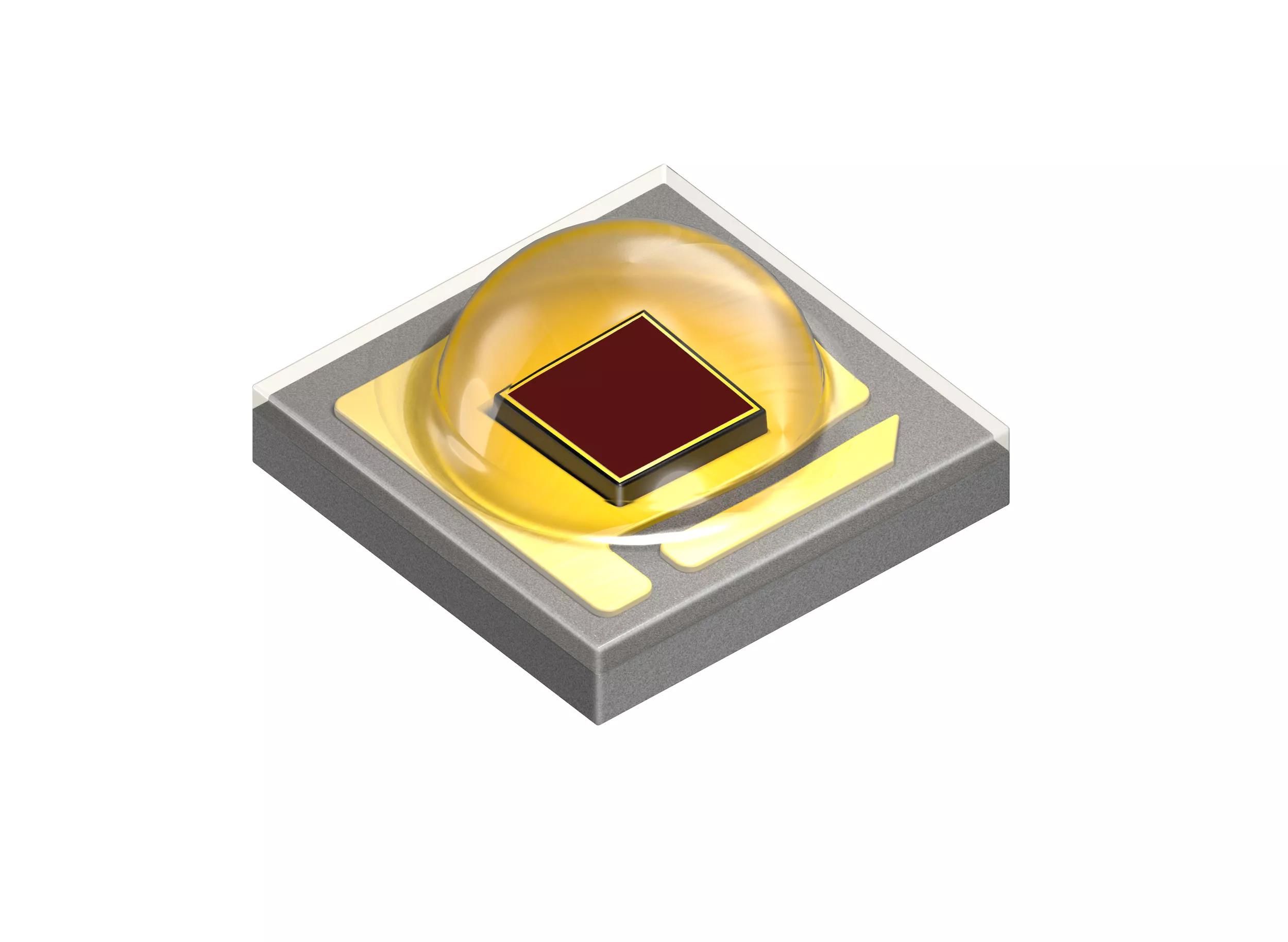

The OSLON® Signal combines a compact form factor with high efficiency and electrically insulated thermal pad. The square package matches the optical center with the mechanical center. This provides easy clustering flexibility and high packing density for a maximum flux density.
The color bins are defined for best fit to most signaling norms.
Details
Ordering codes
| Product Type | Description | Order No. | Availability | |
|---|---|---|---|---|
| LJ CKBP-JYKY-36-1 | ΦV = 52 ... 97 lm (IF = 350 mA) | Q65111A5610 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
|
| LJ CKBP-JZKZ-25-1 | ΦV = 61 ... 112 lm (IF = 350 mA) | Q65111A5609 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
|
| LJ CKBP-HYKX-47-1 | ΦV = 33 ... 82 lm (IF = 350 mA) | Q65112A0755 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
×
Downloads
For other documents visit our
Download center
Application note
OSLON® (ceramic) package family — Details on the assembly and solder pad design
Product related
Preventing LED failures caused by corrosive materials
General information
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Details on photobiological safety of LED light sources
General information
Importing rayfiles and ray-measurement files of LEDs
General information
Chemical compatibility of LEDs
General information
Ceramic LEDs — Details on handling and processing
Handling recommendations
Handling of silicon resin LEDs
Handling recommendations
ESD protection while handling LEDs
Handling recommendations
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Processing of SMD LEDs
Soldering and processing
Recommended pick-and-place tools for LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
Package related thermal resistance of LEDs
Thermal management
Temperature measurement with thermocouples
Thermal management
Thermal management of LED light sources
Thermal management
LED diagnosis in automotive applications
Electrical design
Comparison of simple LED circuits for low power LEDs
Electrical design
Dimming LEDs with respect to grouping current
Electrical design
The basic principles of Electrical Overstress (EOS)
Electrical design
