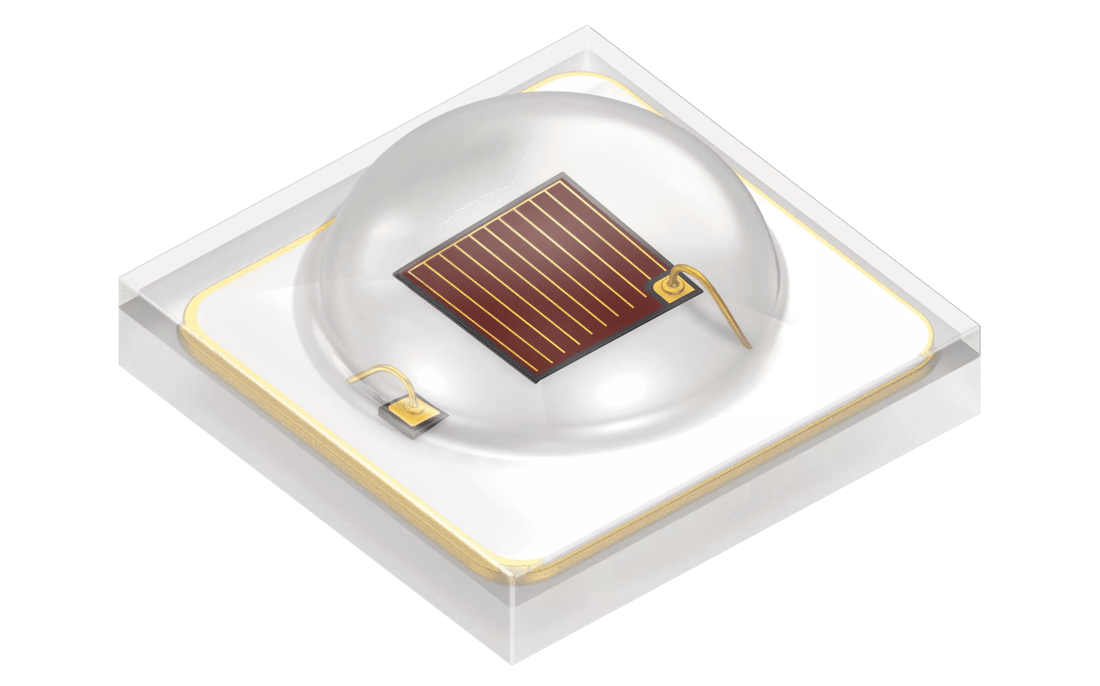

OSRAM OSLON™ SSL 150, GY CSHPM1.23

×

Description

New, higher performing OSLON SSL family LED with well known superior robustness, high reliability, long lifetime, low thermal resistance. Perfectly addressing applications demanding for high efficiency and long lifetime requirement.
Datasheet
GY CSHPM1.23
English
Download
Select & order
Contact us Support

Details

Parameters

Electrical power
0.77 W
High
Brightness
ΦV
76 lm
IV
15.7 cd
ΦE
154 mW
IE
31.7 mW/sr
Beam angle
∢
150 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
3.0 mm
w
3.0 mm
h
1.59 mm

Ordering information

Product Type Description Ordering code Availability
GY CSHPM1.23-KQKS-36 ΦV = 76.3 ... 97.0 lm (IF = 350 mA) Q65112A0763 Full production
GY CSHPM1.23-KRKT-36 ΦV = 82.0 ... 104.2 lm (IF = 350 mA) Q65113A3837 Full production
