OSRAM OSLON® SSL 80, GF CS8PM2.24

OSRAM OSLON® SSL 80, GF CS8PM2.24

Discontinued

Description

New, higher performing OSLON SSL family LED with well known superior robustness, high reliability, long lifetime, low thermal resistance. Perfectly addressing applications demanding for high efficiency and long lifetime requirement.

Contact us Support

Details

Parameters

Color of emission

Far Red (720-740 nm)

Electrical power

0.65 W

Mid

Brightness

Φ_V

0.69 lm

I_V

0.339 cd

Φ_E

295 mW

I_E

145 mW/sr

Beam angle

∢

80 °

Operating temperature

T_op min.

-40 °C

T_op max.

120 °C

Dimension

l

3.0 mm

w

3.0 mm

h

2.36 mm

Application fields

Lighting Indoor lighting Entertainment Agriculture & horticulture Outdoor & industrial lighting

Ordering codes

Product Type	Description	Order No.	Availability
GF CS8PM2.24-2T4T-1	Φ_E = 315 ... 450 mW (I_F = 350 mA)	Q65112A8358	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now Distribution partners: Mouser Buy now

Downloads

Datasheets

GF CS8PM2.24

Datasheet

DE

CN

JP

Application note

Brilliant Mix and Mix-to-Match — Professional white for general lighting applications

Product related

DE

CN

JP

Light quality — White light parameters

Product related

DE

CN

JP

Light quality — Color metrics

Product related

DE

CN

JP

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General information

DE

CN

JP

Details on photobiological safety of LED light sources

General information

DE

CN

JP

Preventing LED failures caused by corrosive materials

General information

DE

CN

JP

Reliability and lifetime of LEDs

General information

JP

Importing rayfiles and ray-measurement files of LEDs

General information

DE

CN

JP

Chemical compatibility of LEDs

General information

DE

CN

JP

Measurement, calibration and measurement uncertainty of LEDs

General information

DE

JP

Partial Flux — Measurement reliability of lensed LEDs

Handling recommendations

DE

CN

JP

Handling of silicon resin LEDs

Handling recommendations

DE

CN

JP

ESD protection while handling LEDs

Handling recommendations

DE

CN

JP

Dry pack information

Handling recommendations

DE

CN

JP

Ceramic LEDs — Details on handling and processing

Soldering and processing

DE

CN

JP

Measuring of the temperature profile during the reflow solder process

Soldering and processing

DE

CN

JP

Processing of SMD LEDs

Soldering and processing

DE

CN

JP

Recommended pick-and-place tools of LEDs

Soldering and processing

DE

CN

JP

Further details on lead free reflow soldering of LEDs

Soldering and processing

JP

Manual lead-free soldering of LEDs

Soldering and processing

DE

CN

JP

PCB technologies for LED applications

Thermal management

DE

CN

JP

Comparison of simple LED circuits for low power LEDs

Electrical design

DE

CN

JP

Determination of resistances for brightness compensation

Electrical design

DE

CN

JP

LED driving technology for long term flexibility

Electrical design

DE

CN

JP

The basic principles of Electrical Overstress (EOS)

Electrical design

DE

CN

JP

Resources

CAD Data

CAD Data

Electrical Simulation

Electrical Simulation

Optical Simulation

Optical Simulation

Images

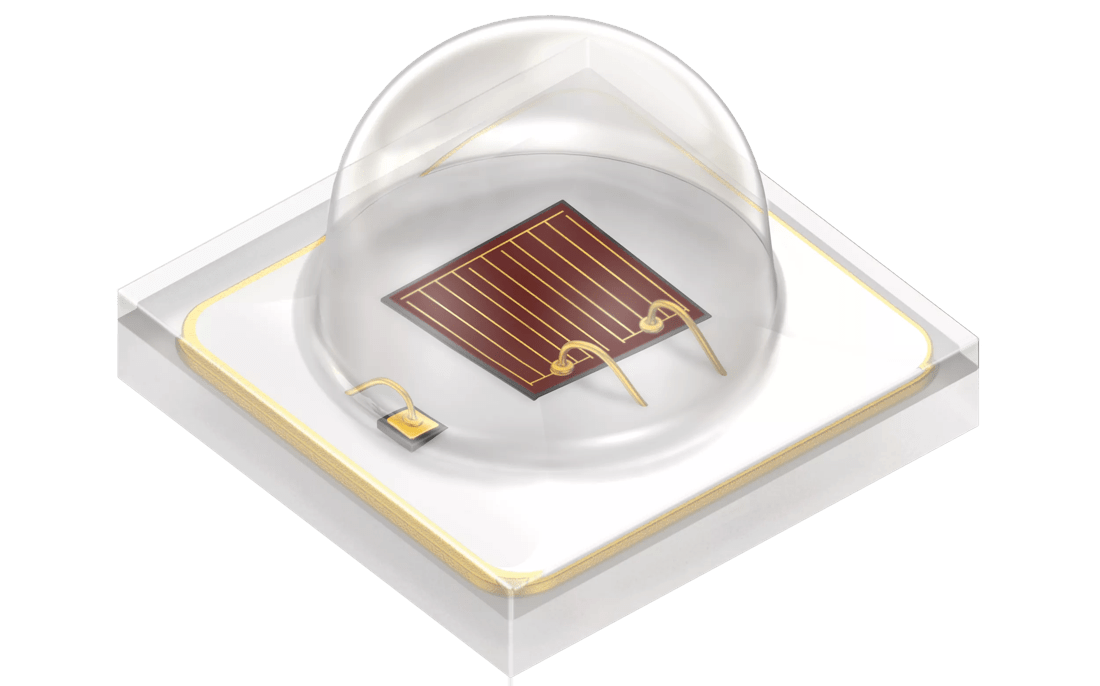

OSLON SSL 80 - GF_CS8PM2-24_Productpicture
