OSRAM OSRAM OSTAR™ Projection Compact, KP CSLMM1.F1

Ordering and shipping still possible
×
Ordering and shipping still possible

Description

Compact light source with isolated heat sink for improved heat dissipation and high current chip technology for increased light output.
Datasheet
KP CSLMM1.F1
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Pure Green (554-566 nm)
Electrical power
2.3 W
High
Brightness
ΦV
365 lm
IV
117 cd
ΦE
809 mW
IE
260 mW/sr
ΦP
1.65 µmol/s
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
3.0 mm
w
3.0 mm
h
0.75 mm
Device qualification
AEC-Q102

Ordering information

Product Type Description Ordering code Availability
KP CSLMM1.F1-5N8N-A ΦV = 280 ... 450 lm (IF = 750 mA) Q65113A5493 Ordering and shipping are still possible

Downloads

Datasheets
KP CSLMM1.F1 · Datasheet · PDF · en_US

Application note
Projection with LED light sources · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Ceramic LEDs — Details on handling and processing · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
The thermal measurement point of LEDs · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
LED diagnosis in automotive applications · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

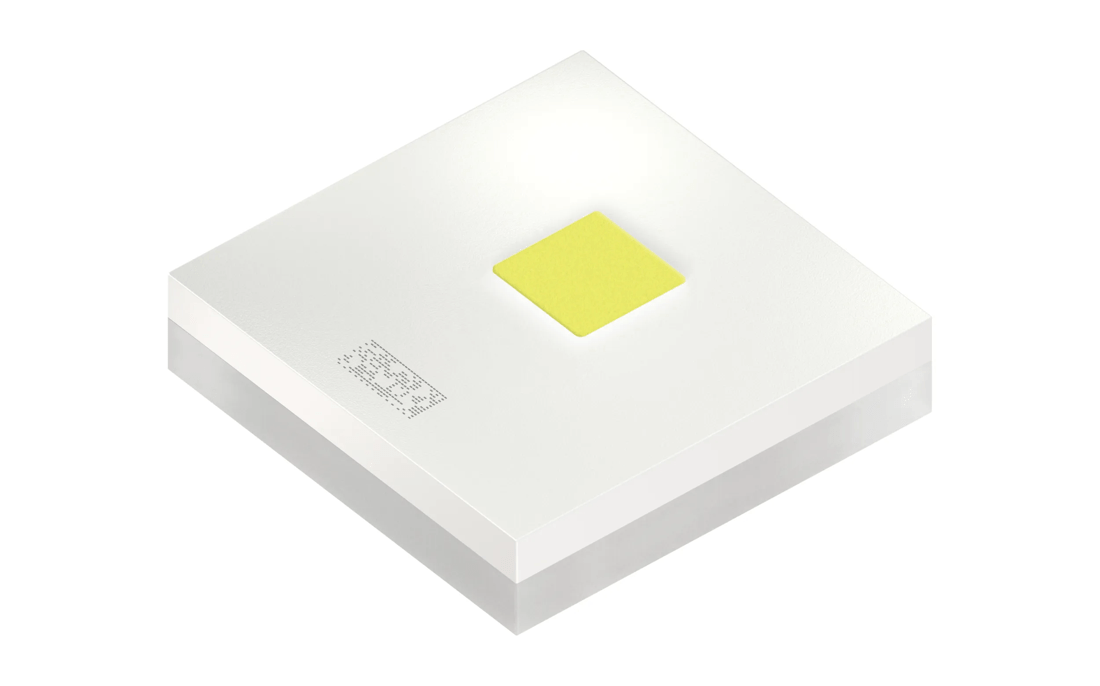

KP CSLMMA-F1 42x26mm cmyk · Images · TIF
