Description

Compact light source with isolated heat sink for improved heat dissipation and high current chip technology for increased light output.

Contact us Support

Details

Parameters

Color of emission

Red (612-630 nm)

Electrical power

3.0 W

High

Brightness

Φ_V

187 lm

I_V

60.4 cd

Φ_E

726 mW

I_E

234 mW/sr

Beam angle

∢

110 °

Operating temperature

T_op min.

-40 °C

T_op max.

100 °C

Dimension

l

3.0 mm

w

3.0 mm

h

0.75 mm

Application fields

Industrial Factory automation

Lighting Entertainment

Ordering codes

Product Type	Description	Order No.	Availability
KR CULPM1.23-LTMP-34	Φ_V = 150 ... 194 lm (I_F = 1400 mA)	Q65113A6287	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now Distribution partners: Digi-Key Buy now Farnell Buy now Mouser Buy now
KR CULPM1.23-MPMR-23	Φ_V = 180 ... 224 lm (I_F = 1400 mA)	Q65113A6285	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now Distribution partners: Digi-Key Buy now Farnell Buy now Mouser Buy now
KR CULPM1.23-LTMR-25	Φ_V = 150 ... 224 lm (I_F = 1400 mA)	Q65113A6286	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now Distribution partners: Digi-Key Buy now Mouser Buy now

Downloads

Datasheets

KR CULPM1.23

Datasheet

DE

JP

Application note

Projection with LED light sources

Product related

DE

CN

JP

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General information

DE

CN

JP

Details on photobiological safety of LED light sources

General information

DE

CN

JP

Reliability and lifetime of LEDs

General information

JP

Importing rayfiles and ray-measurement files of LEDs

General information

DE

CN

JP

Chemical compatibility of LEDs

General information

DE

CN

JP

Measurement, calibration and measurement uncertainty of LEDs

General information

DE

JP

Handling of silicon resin LEDs

Handling recommendations

DE

CN

JP

ESD protection while handling LEDs

Handling recommendations

DE

CN

JP

Dry pack information

Handling recommendations

DE

CN

JP

Fundamentals of LED handling

Handling recommendations

DE

CN

JP

Ceramic LEDs — Details on handling and processing

Soldering and processing

DE

CN

JP

Processing of SMD LEDs

Soldering and processing

DE

CN

JP

Recommended pick-and-place tools of LEDs

Soldering and processing

DE

CN

JP

Further details on lead free reflow soldering of LEDs

Soldering and processing

JP

PCB technologies for LED applications

Thermal management

DE

CN

JP

Package related thermal resistance of LEDs

Thermal management

DE

CN

JP

Temperature measurement with thermocouples

Thermal management

DE

CN

JP

Thermal management of LED light sources

Thermal management

DE

CN

JP

LED diagnosis in automotive applications

Electrical design

DE

CN

JP

Comparison of simple LED circuits for low power LEDs

Electrical design

DE

CN

JP

Dimming LEDs with respect to grouping current

Electrical design

DE

CN

JP

The basic principles of Electrical Overstress (EOS)

Electrical design

DE

CN

JP

Resources

Electrical Simulation

Electrical Simulation

Images

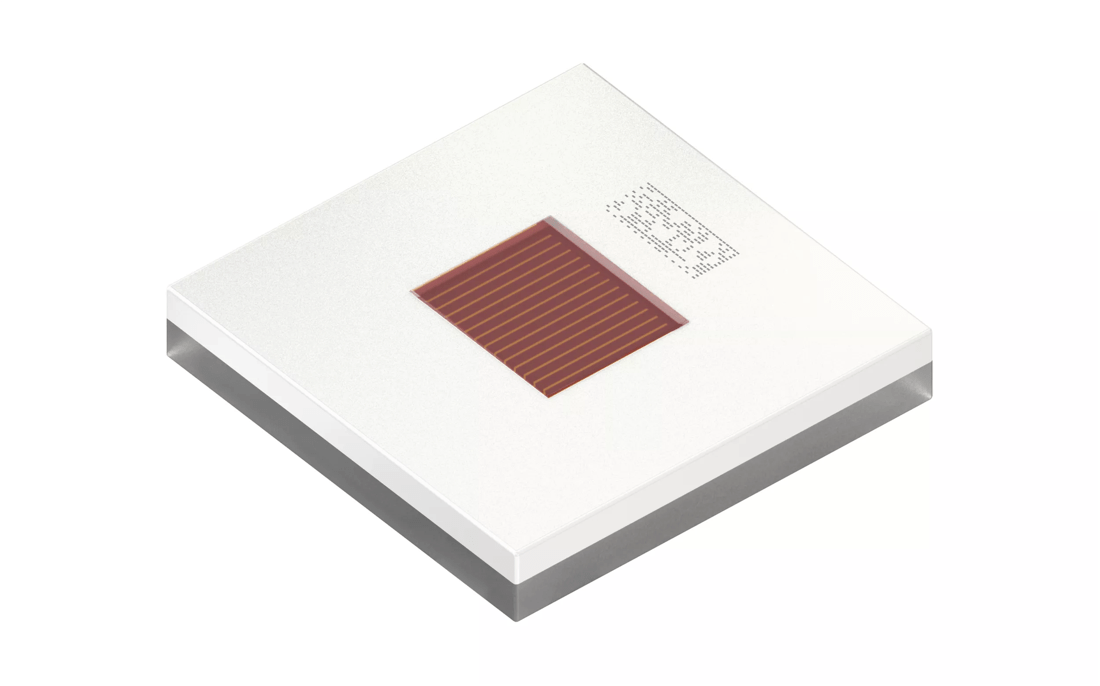

KR_CULPM1-23_42x26mm_cmyk
