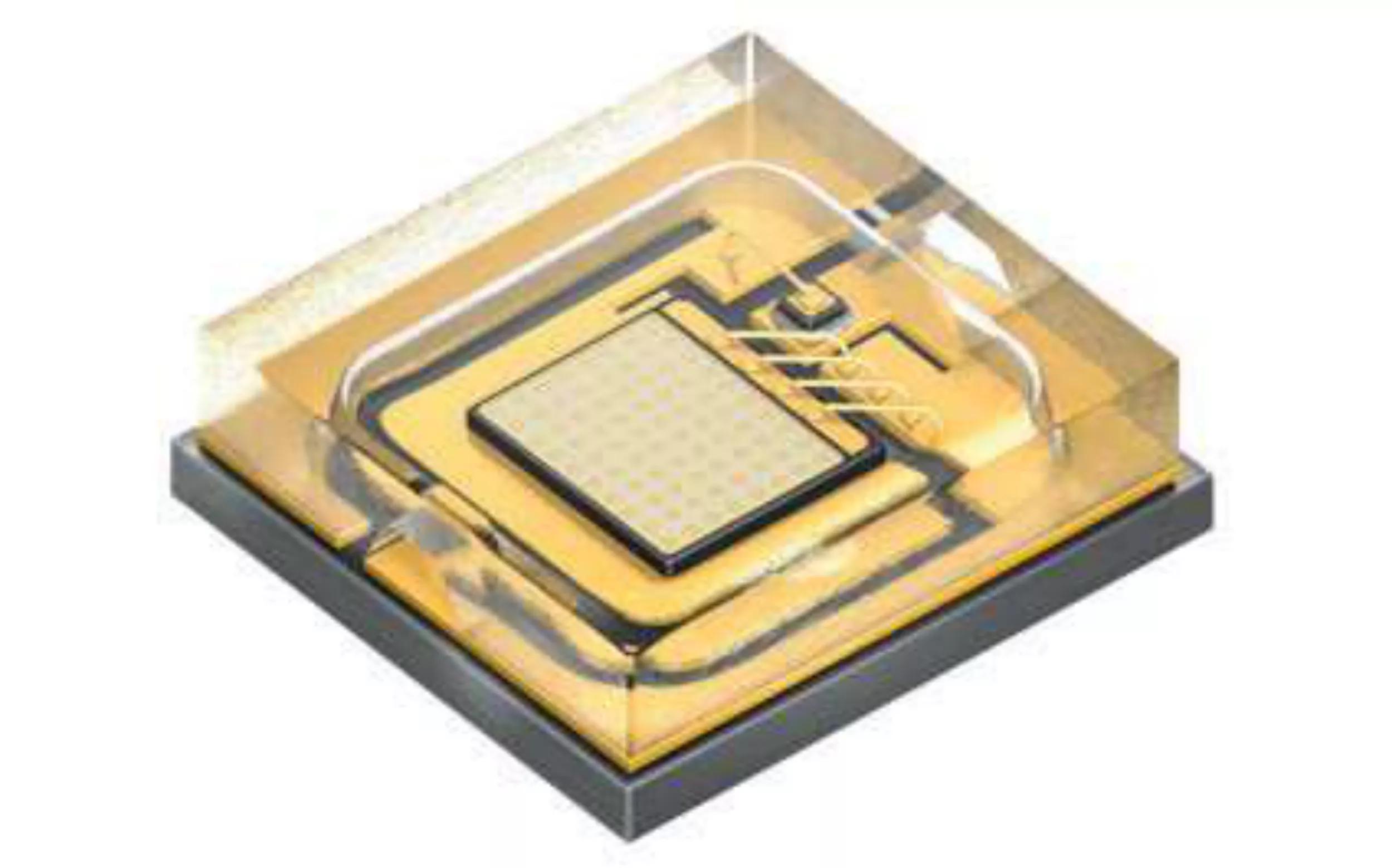

OSRAM OSRAM OSTAR™ Projection Compact, LE B Q8WP

×

Description

High luminance device in a reliable ceramic package configuration dedicated for RGB projection systems in automotive environments.
Datasheet
LE B Q8WP AM
English
Download
Chinese
Download
LE B Q8WP
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Blue (450-480 nm)
Electrical power
4.1 W
High
Brightness
ΦV
89.9 lm
IV
32.3 cd
ΦE
2050 mW
IE
735 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
3.9 mm
w
3.65 mm
h
1.2 mm
Device qualification
AEC-Q102

Ordering information

Product Type Description Ordering code Availability
LE B Q8WP-5B7B-VW Φe = 1800 ... 2500 mW (IF = 1400 mA) Q65113A2448 Full production
LE B Q8WP-8A7B-24 Φe = 1590 ... 2500 mW (IF = 1400 mA) Q65112A4116 Full production
LE B Q8WP-8A7B-24-AM Φe = 1590 ... 2500 mW (IF = 1400 mA) Q65113A3580 Full production
