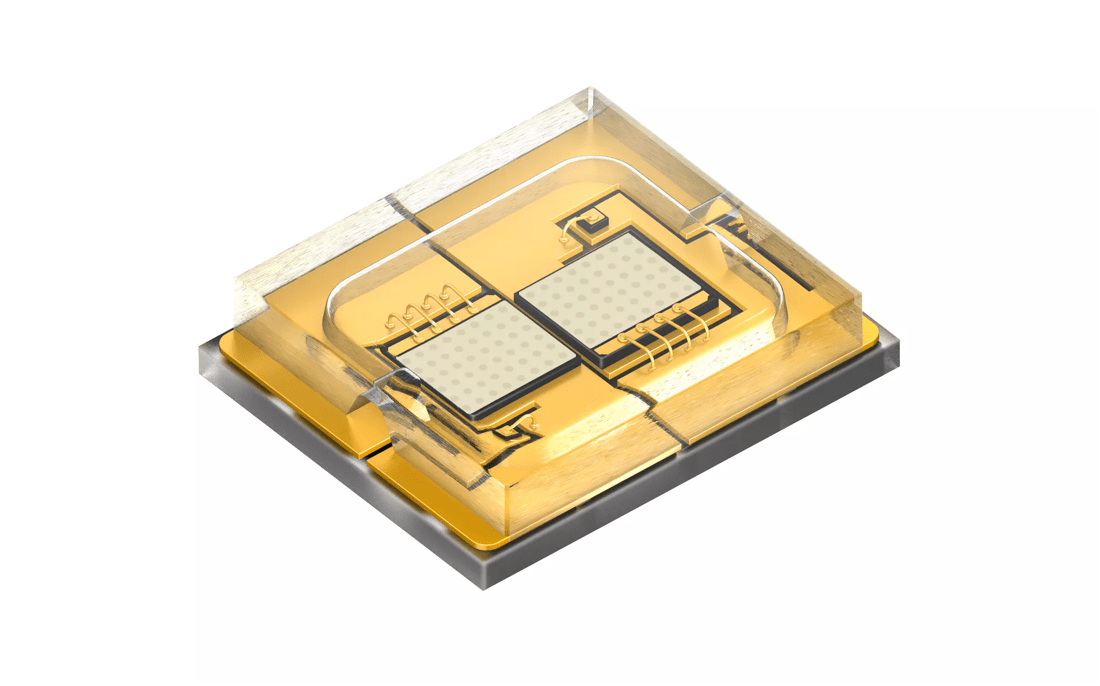

OSRAM OSRAM OSTAR™ Projection Compact, LE T Q7WR

×

Description

The OSTAR Projection LE T Q7WR is specifically designed for automotive head-up applications using a DMD.
Datasheet
LE T Q7WR
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
True Green (513-545 nm)
Electrical power
3.9 W
High
Brightness
ΦV
815 lm
IV
272 cd
ΦE
1670 mW
IE
559 mW/sr
ΦP
3.58 µmol/s
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
5.75 mm
w
4.68 mm
h
1.25 mm
Device qualification
AEC-Q102

Ordering information

Product Type Description Ordering code Availability
LE T Q7WR-8P7Q-34 ΦV = 630 ... 1000 lm (IF = 1400 mA) Q65113A4994 Full production

Downloads

Datasheets
LE T Q7WR · Datasheet · PDF · en_US

Application note
Projection with LED light sources · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Ceramic LEDs — Details on handling and processing · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
The thermal measurement point of LEDs · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
LED diagnosis in automotive applications · Electrical design · PDF · en_US
