OSRAM OSRAM OSTAR® Projection Compact, LE T Q8WP

Name: OSRAM OSRAM OSTAR® Projection Compact, LE T Q8WP
Brand: ams-OSRAM AG

Product features

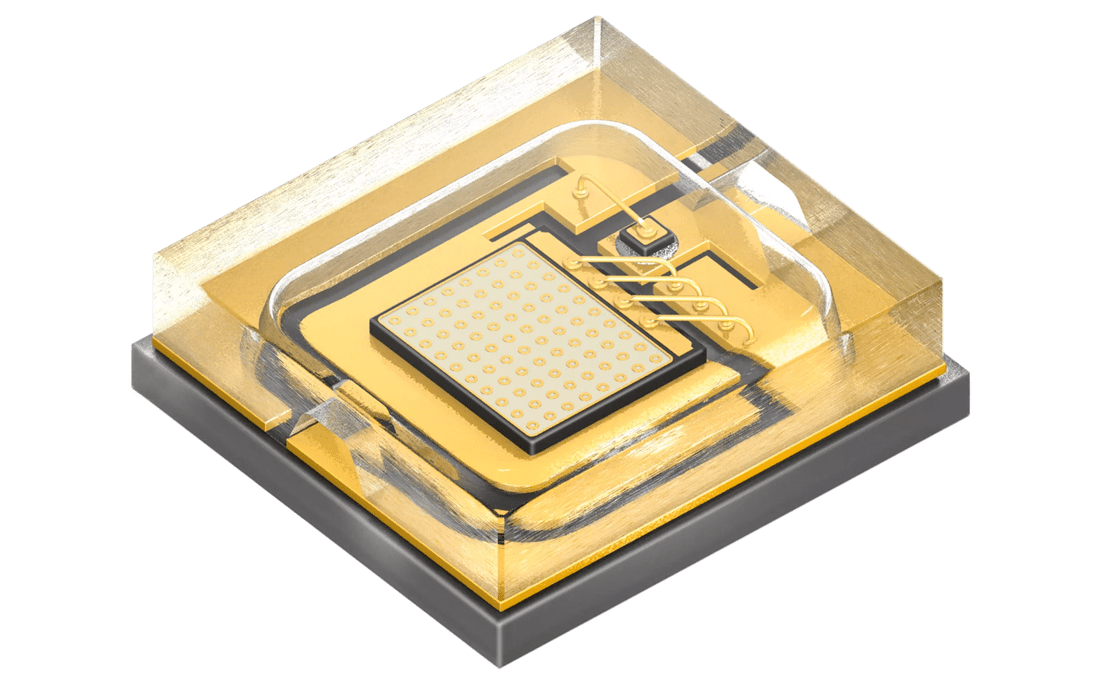

Compact light source in SMT technology, glass window on top, RoHS compliant

Datasheet Choose product

Application note Optical simulation CAD files Electrical simulation Tools Contact us Support

Downloads

Datasheet

LE T Q8WP

Datasheet / 2.0 MB

EN CN

Application note

Projection with LED light sources

Product Related / 1.4 MB

Chemical compatibility of LEDs

General Information / 2.0 MB

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General Information / 1.7 MB

Details on photobiological safety of LED light sources

General Information / 1.4 MB

Dry pack information

General Information / 1.2 MB

Importing rayfiles and ray-measurement files of LEDs

General Information / 903.2 KB

LED 可靠性与使用寿命

General Information / 1.7 MB

Lebensdauer und Zuverlässigkeit von LEDs

General Information / 1.9 MB

Reliability and lifetime of LEDs

General Information / 1.9 MB

Ceramic LEDs — Details on handling and processing

Processing and Handling / 2.2 MB

ESD protection while handling LEDs

Processing and Handling / 1.8 MB

Fundamentals of LED handling

Processing and Handling / 1.3 MB

Further details on lead free reflow soldering of LEDs

Processing and Handling / 1.4 MB

Handling of silicon resin LEDs

Processing and Handling / 496.2 KB

LED 无铅回流焊的详细介绍

Processing and Handling / 1.7 MB

PCB technologies for LED applications

Processing and Handling / 3.1 MB

Processing of SMD LEDs

Processing and Handling / 4.5 MB

Recommended pick-and-place tools for LEDs

Processing and Handling / 6.0 MB

Weitere Hinweise zum bleifrei Reflow-Löten von LEDs

Processing and Handling / 1.4 MB

Behaviour of InGaN LEDs in parallel circuits

Driving of LEDs / 1.1 MB

Comparison of simple LED circuits for low power LEDs

Driving of LEDs / 1.2 MB

Dimming LEDs with respect to grouping current

Driving of LEDs / 1,007.0 KB

LED diagnosis in automotive applications

Driving of LEDs / 2.1 MB

The basic principles of Electrical Overstress (EOS)

Driving of LEDs / 1.6 MB

Package related thermal resistance of LEDs

Thermal Management / 2.1 MB

Temperature measurement with thermocouples

Thermal Management / 3.9 MB

Thermal management of LED light sources

Thermal Management / 1.9 MB

Measurement, calibration and measurement uncertainty of LEDs

Measurement / 2.5 MB

欧司朗光电半导体有限公司 LED 的测量、

Measurement / 2.4 MB

Optical simulation

Optical Simulation

Optical simulation

Download

CAD files

CAD Data

CAD files

Download

Electrical simulation

Electrical Simulation

Electrical simulation

Download

Ordering codes

Product Type	Description	Order No.	Availability
LE T Q8WP-NANB-34	Φ_V = 280 ... 450 lm (I_F = 1400 mA)	Q65113A2445	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product	Order now
LE T Q8WP-MBNB-34	Φ_V = 224 ... 450 lm (I_F = 1400 mA)	Q65111A8428	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now Mouser Buy now

Tools

LightGuide

Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.

Open LightGuide
