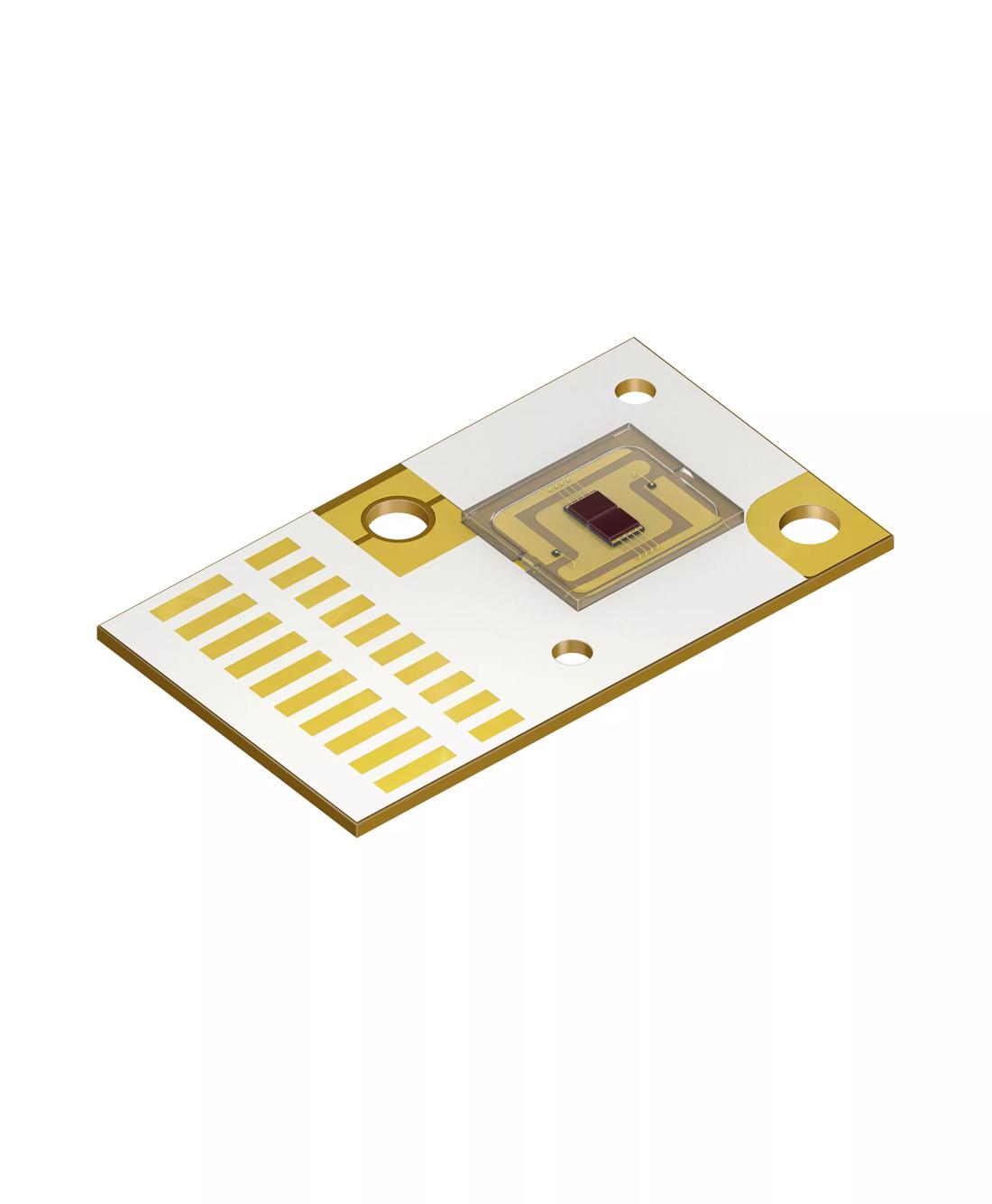

OSRAM OSRAM OSTAR® Projection Power, LE A P1W
Discontinued
×
Discontinued
Details
Parameters
Color of emission
Amber (609-624 nm)
Electrical power
36.0
W
Ultra High
Brightness
ΦV
1670
lm
IV
600
cd
ΦE
6900
mW
IE
2480
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Dimension
l
27.0
mm
w
15.5
mm
h
2.1
mm
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| LE A P1W-RSSP-23 | ΦV = 1400 ... 1940 lm (IF = 12000 mA) | Q65112A7509 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
