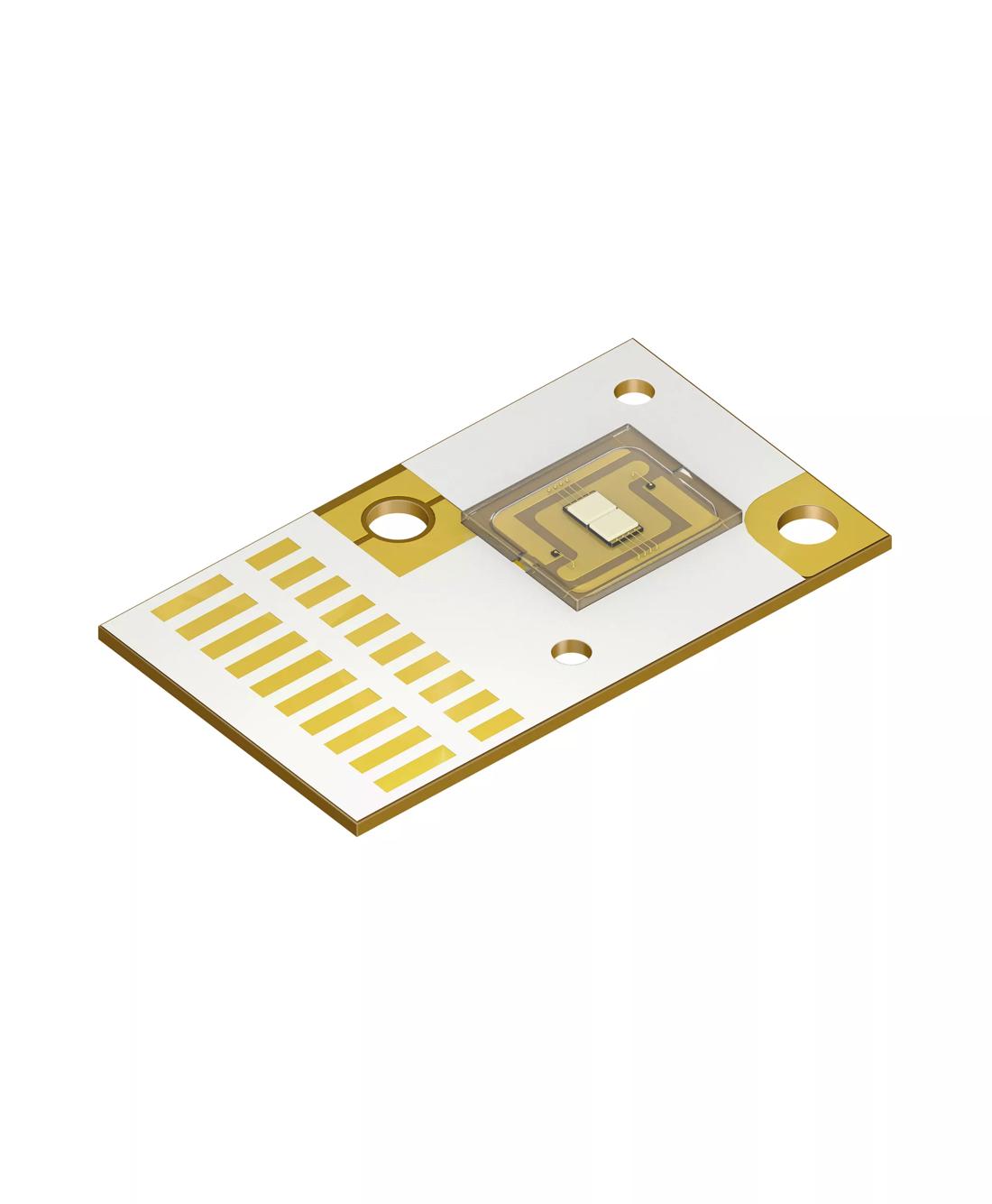

OSRAM OSRAM OSTAR® Projection Power, LE B P1W

OSRAM OSRAM OSTAR® Projection Power, LE B P1W
Discontinued
×
Discontinued

Description

OSRAM OSTAR Projection Power is a high luminance LED for projection applications.
Datasheet
LE B P1W
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Blue (450-480 nm)
Electrical power
40.0 W
Ultra High
Brightness
ΦV
609 lm
IV
219 cd
ΦE
13900 mW
IE
4980 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
27.0 mm
w
15.5 mm
h
2.1 mm

Ordering codes

Product Type Description Order No. Availability
LE B P1W-EZFZ-VW Φe = 9700 ... 18000 mW (IF = 12000 mA) Q65112A4117
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
Distribution partners:
Mouser
Buy now
Rochester
Buy now
LE B P1W-EZFZ-24 Φe = 9700 ... 18000 mW (IF = 12000 mA) Q65112A4118
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
Distribution partners:
Digi-Key
Buy now
Mouser
Buy now
